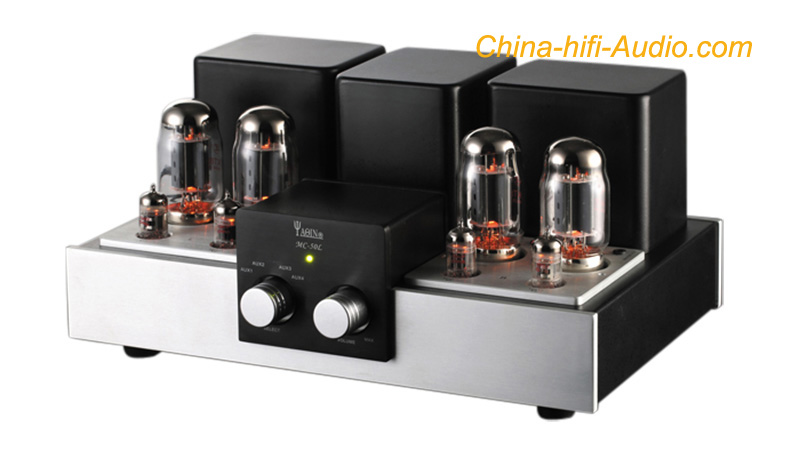

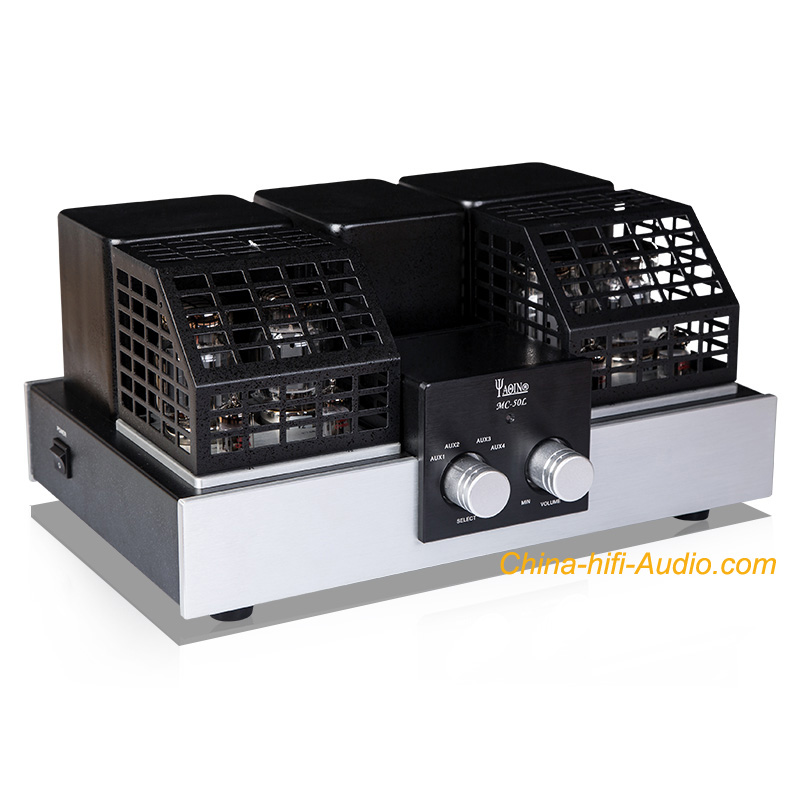

YAQIN MC-50L VACUUM TUBE KT88 ultra-linear Push-pull Integrated AMPLIFIER
100% Brand New


All items guaranteed 100% BRAND NEW in the original edition Box.



Yaqin MC-50L ultra-linear push-pull amplifier
Circuit features:
High delayed start, can effectively extend the life of the bile duct.
After the grade to ultra-linear push-pull power amplifier, so that the machine has a strong power output with low distortion.
first-class style for the SRPP and the tail inverted phase direct coupled amplifier, so that the whole wider frequency response, better sound quality.

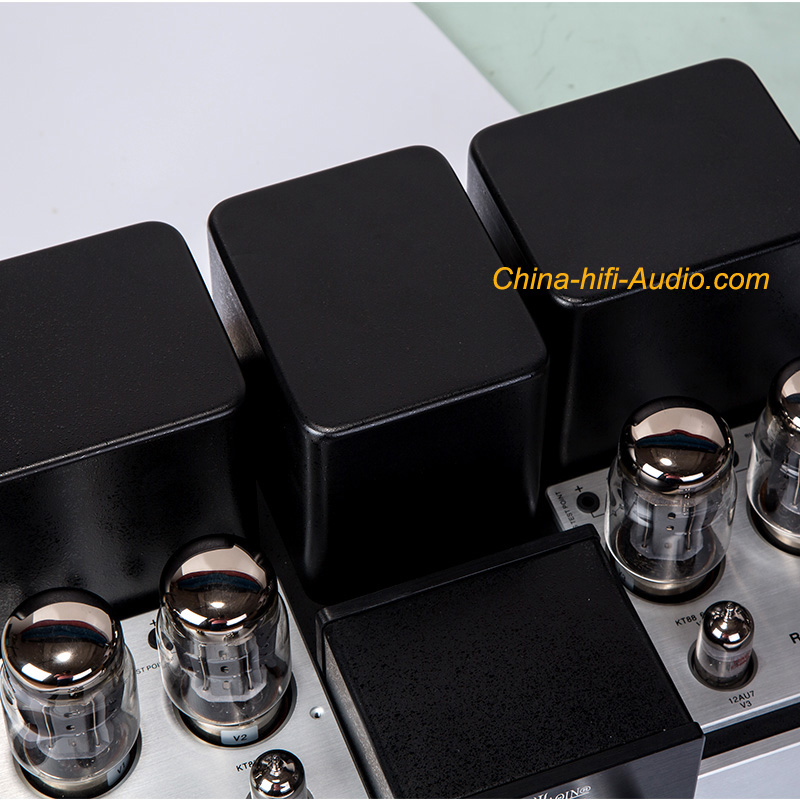

Audio output transformer using dedicated silicon and oxygen-free imports of high-strength enameled wire and special multi-layered group of winding production process, so that the machine wide frequency response 6Hz-70kHz, sound good, transparent and strong.
The machine used in all foreign names sound factory dedicated enthusiast electrolytic capacitors, polarity Philips (MKP) capacitors and manufacturing high-quality gold blocking the main channel use of imported special large volume potentiometer, with a musical background quiet, low noise, no coloration and durable and so on.

Electrical Specifications:
Output Power: 60W + 60W (6Ω)
Total harmonic distortion: ≤ 1.7% (30W at)
Frequency Response: 6Hz - 70kHz (-2dB)
SNR: ≥ 93dB (A)
Input Sensitivity: ≤ 0.25V

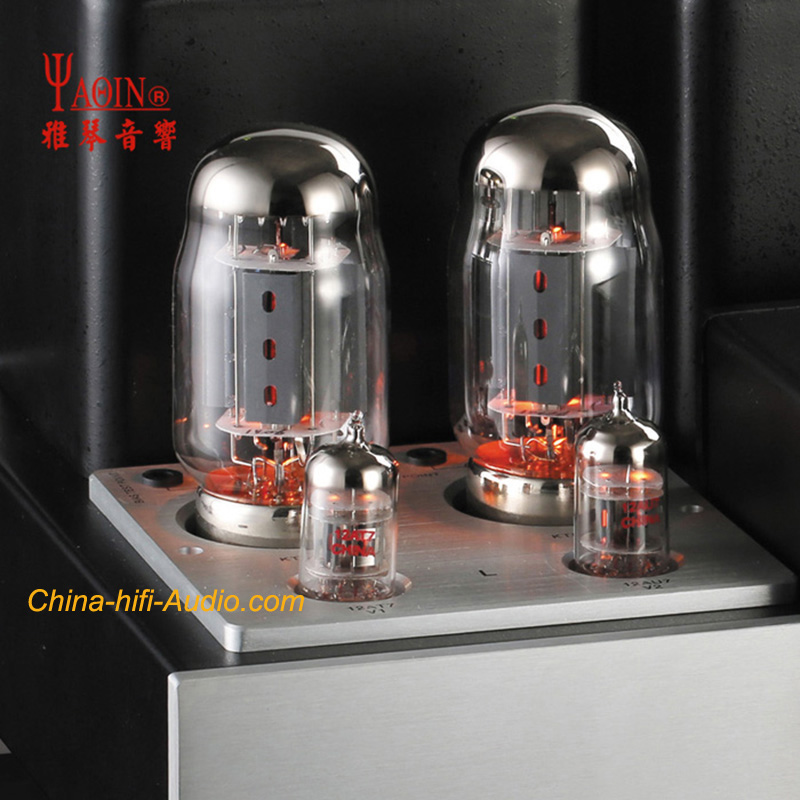

Tube: KT88 (6550) × 4 12AT7 x 2 12AU7 x 2
Load Impedance: 4Ω - 8Ω
Power consumption: about 370W
Input Power Voltage: AC100V - 240V 60Hz/50Hz (100V, 110V ,120V,230V,240V,version will take 3-14 work days to order). 220v is in stock.
Dimensions: 479mm x 310mm x 180mm
Net Weight: 21 kg
Gross weight: 22 KG
