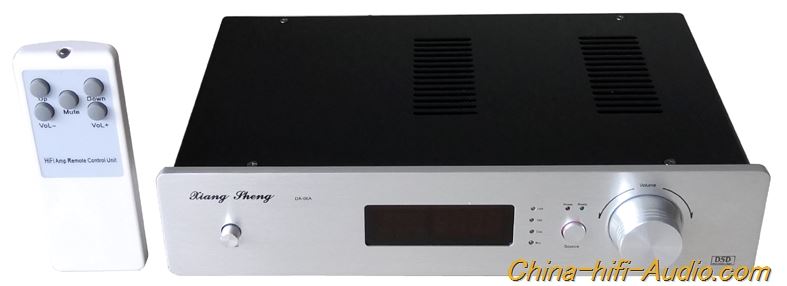

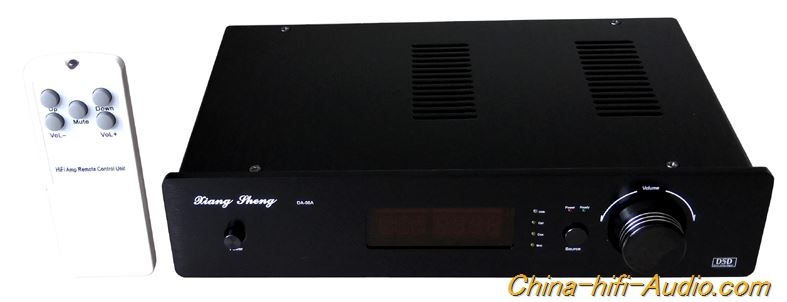

Xiangsheng DA-06 AK4493/4495 Digital DSD Hardware Decoder xmos With remote control
100% Brand New
Xiangsheng DA-06 AK4493/4495 Digital DSD Hardware Decoder xmos With remote control black/sliver
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Features:
1. The Xmos-Xu208 chip is used to receive the usb signal and the Spdif signal.
2, provide genuine custom exclusive xmos driver, there is absolutely no free public version of the drive will be a murmur.
3, AK4495 supports DSD128 and PCM384K, AK4493 supports DSD512 and PCM384K.
4, coaxial, BNC support DOP64 and PCM192K, fiber support DOP64 and PCM176.4K.
5, with remote control function, remote control channel switching, volume addition and subtraction, mute control.
6, there are balanced output, unbalanced output, amp output (optional) and so on.
7. Aluminum alloy wire drawing process panel, thin steel plate box, aluminum alloy wire drawing process cover, both beautiful and well shielded.
8, using R cattle power supply, the smallest magnetic leakage, the highest efficiency.
9, digital, analog power supply independent winding, independent rectification and filtering, power supply.
10. The standard operational amplifier is: OPA2134PA two pieces, OPA2604AU one piece.
Second, the use of precautions:
1. Master the correct sequence of power on and off to avoid impact sound. Power-on sequence: source--decoder--pre-stage--amplifier. The shutdown sequence is reversed.
2. Balanced output is connected to a power amplifier or amp with balanced input. Only unbalanced input amplifiers or amps can be connected with the RCA line, but only if the amplifier can pass the 4.5V high level signal without clipping.
3. The output of the machine is combined with the power amplifier. It can't directly push the pure final stage. The pure final stage should add the preamplifier.
Third, the performance characteristics:
1. This machine has 4 digital signal input switching: BNC, coaxial, optical fiber, USB.
2. This unit has a balanced output, a set of unbalanced RCA outputs, and a set of headphone outputs (optional).

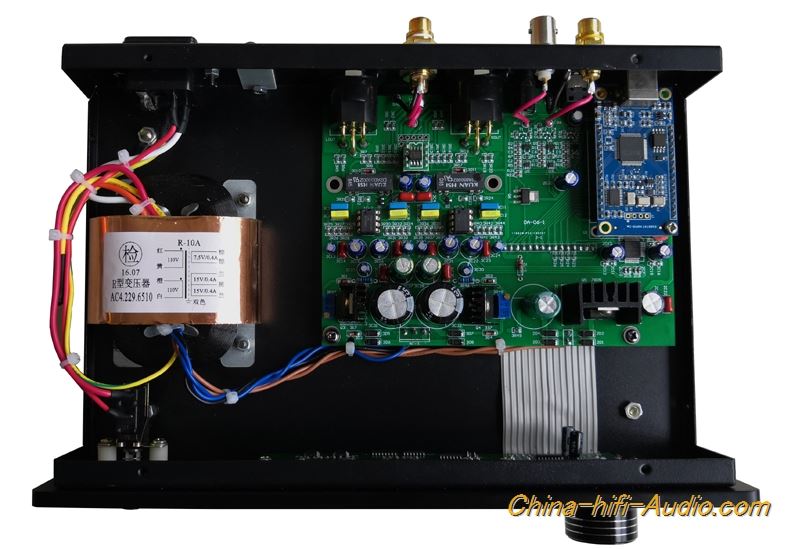

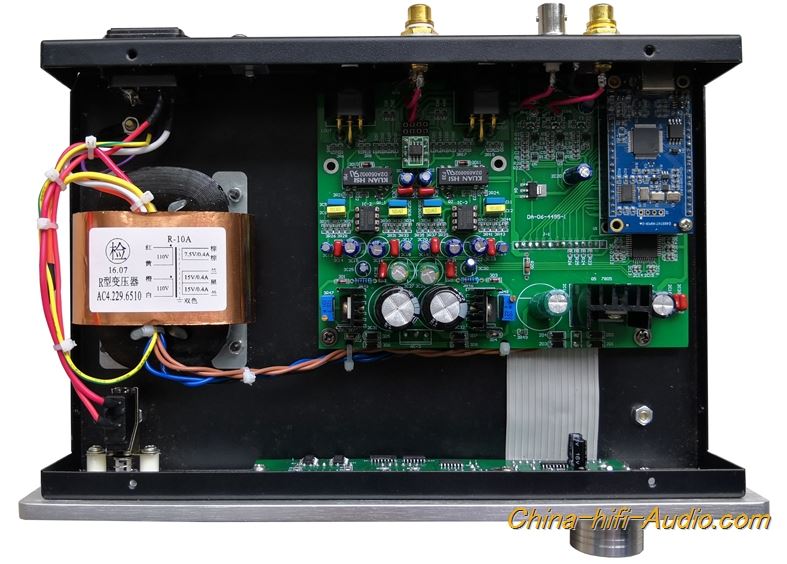

3. The main magnifying board adopts double panel design and is made fine.
4. The resistor and capacitor of this machine are assembled with high-quality discrete fever components to ensure the sound quality: Siemens polypropylene capacitor, CBB ultra-small polypropylene metallization capacitor, ELNA capacitor, BC capacitor, etc., to ensure pure tone, high resolution, sound dyeing Small, wide sound field and so on.
5.xu208 uses 3 active crystal oscillators. It can effectively reduce the clock jitter of the USB port.
6. The functions of this unit are realized by MCU control, and the channel status at the last shutdown is memorized.
Fourth, the specification parameters:
Dimensions: 260mm wide, 167mm deep, 55mm high (without knob, foot, connector size)
Frequency response: 20Hz-35KHz
Signal to noise ratio: 110dB
Harmonic distortion: normal port output: <0.001%
Support 16bit, 24bit digital stream
Supports the following sampling frequencies: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192KHz, 384K
AK4495 support: DSD64, DSD128
AK4493 support: DSD64, DSD128, DSD256, DSD512
Output level: balanced output 9V, unbalanced output 2V
Dynamic range: 120dB
Input impedance: number 75 ohms
Line output impedance: 600 ohms
Input voltage: 110V, 220V/50Hz
Net weight: about 1.75Kg
Package weight: 2.5kg

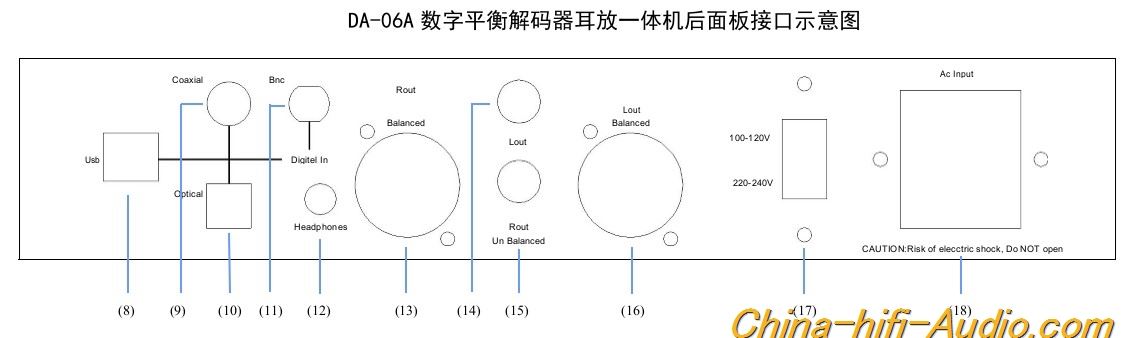

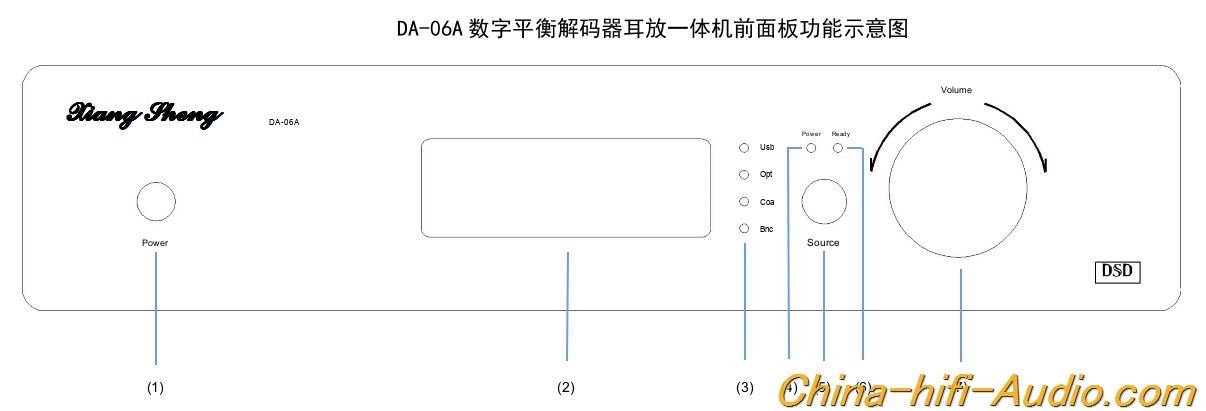

Schematic diagram of the front and rear panels of the DA-06A:
(1) Power switch (POWER): Press the lock to turn on the power, the Power indicator will light, and press again to release the power.
(2) Digital stream information display and remote control receiving window.
(3) Channel status indicator, the corresponding indicator of the strobed channel is lit.
(4) The power indicator light is lit to turn on the power.
(5) Channel status selection button, each time the channel is pressed, the channel is strobed.
(6) The digital input signal is ready for indication.
(7) Volume control knob, clockwise to increase volume, counterclockwise to decrease volume
(8) USB input port, this interface is used by both mobile phone and computer, the mobile phone is connected through OTG cable; Pc is connected to MAC or Windows system uses Usb cable. Support WIN7 and above systems, MAC free drive.
(9) Coaxial coaxial signal input interface.
(10) Optical fiber digital signal input port
(11) Bnc coaxial input interface.
(12) Headphone jack, matching 32 Euro-600 Euro headphones
(13) Right channel balanced output port
(14) The left channel unbalanced output port is engaged with the left channel of the parallel amplifier.
(15) The right channel unbalanced output port is connected to the right channel of the parallel amplifier.
(16) Left channel balanced output port
(17) Power system switch: 110V--230V grid voltage switch. (To prevent damage caused by user misuse, the domestic default 220V)
(18) AC power input.
Remote control button function description:
Up : Switch the channel up
Down: Switch channels down
Vol- : Volume reduction
Vol+ : Volume increase
Mute: mute
