XiangSheng CSR8675 DA-04A USB DAC coaxial fiber 24bit 96KHz silv

Product Price: $64.00 USD

Always Free Shipping
  • Product Model: Model: MUIA983911
  • Product Weight: Shipping Weight: 0.4kg
  • Product Quantity: 3 Units in Stock

  • Add to Cart:
  • Max: 10

Current Reviews: 1

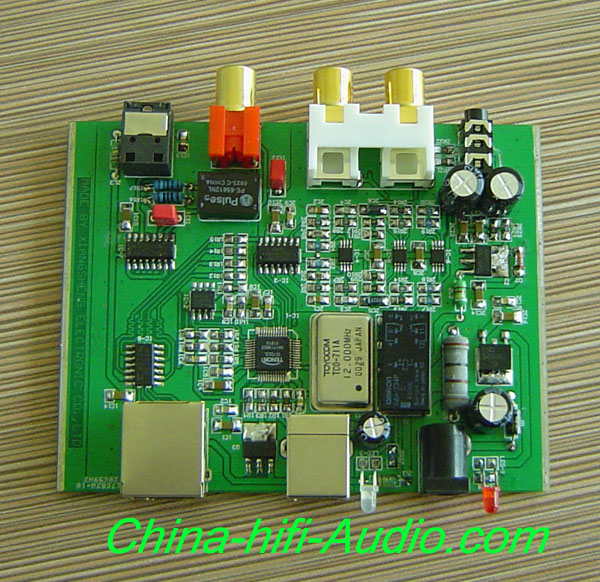

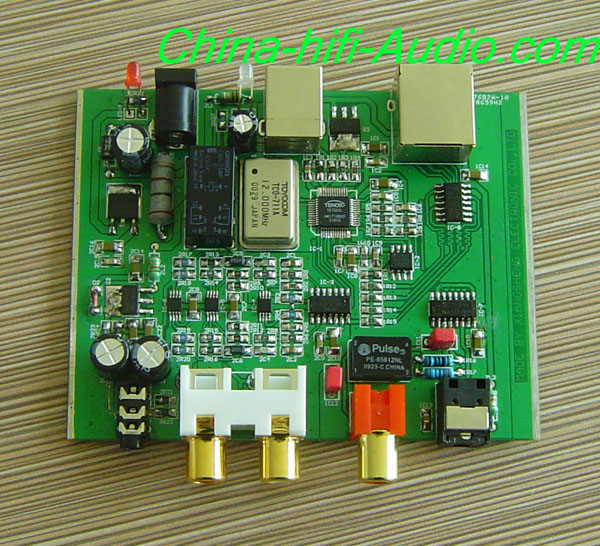

XiangSheng CSR8675 DA-04A USB & coaxial fiber amp 24bit 96KHz silver
100% Brand New

There are four colors for choices : silver , blue , red , and black.


All items guaranteed 100% BRAND NEW in the original edition Box.


a) IIS digital signal output, you can connect to the DAC chip IIS input with a special cable for better digital signals.
b) USB cable input.
c) USB connection indicator lights to indicate normal USB power.
d) External power input socket, positive negative, the input DC 6-9V, currents greater than 0.5A.
e) External power indicator lights to indicate that the external power supply is normal, while USB indicator goes off.
f) Headphone jack, you can spider 32-600 ohm headphones.
g) Right channel line output.
h) Left channel line output.
i) Coaxial digital signal output, you can pick another more upscale digital decoder.
j) Optical digital output, you can pick another more upscale digital decoder.
k) When your laptop is charging, it may make noise if you are using the headphone amplifier at the same time.
Digital Audio Inputs: USB input.
Signal Outputs: (1) COAXIAL (1)OPTICAL(1) IIS digital output and (2 )analog stereo outputs via RCA Left/Right channel.
Output Power: 500mW-100mW
Impedance: 32 ohm -600 ohm
Sampling Frequency: 32kHz、44.1kHz、48kHz、88.2kHz、96kHz
Resolution Capability: supports 16bit、20bit and 24bit audio depending on source.
Line Output Impedance: 600 ohm
Line Output Voltage: 2000mV
Dynamic Range: 105dB
Frequency Response: 20Hz-25KHz
Signal-To-Noise Ratio(SNR): Line Output: 100dB;
headphone Output: 90dB
Total Harmonic Distortion: -90dB(1KHz 0dBFS)
Power Supply: 100-240VAC 50/60Hz
Dimension: 108mm (L) x 80mm (W) x 26.5mm (H)
Net Weight: 0.16kg
Gross Weight: 0.4kg
