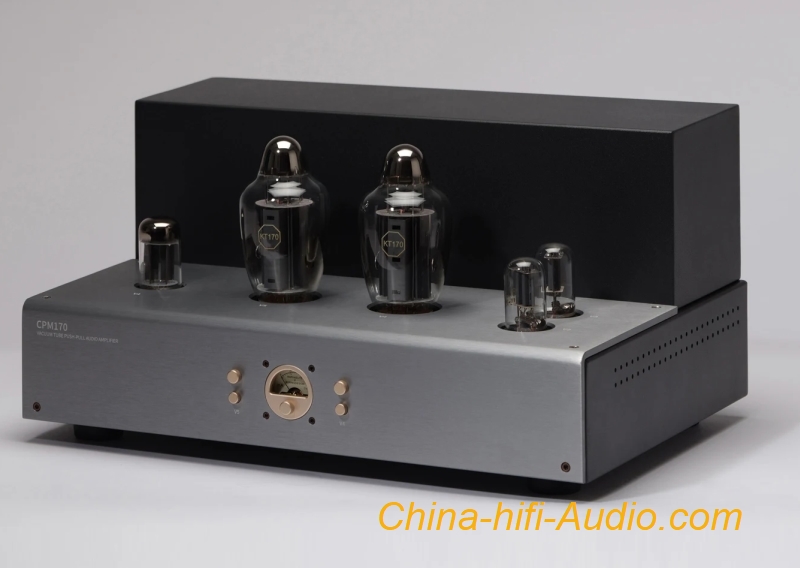

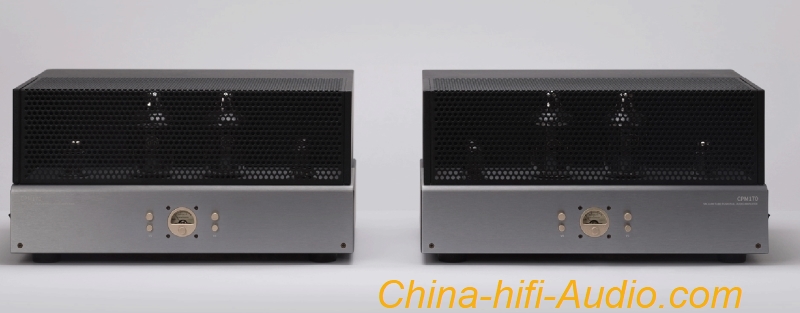

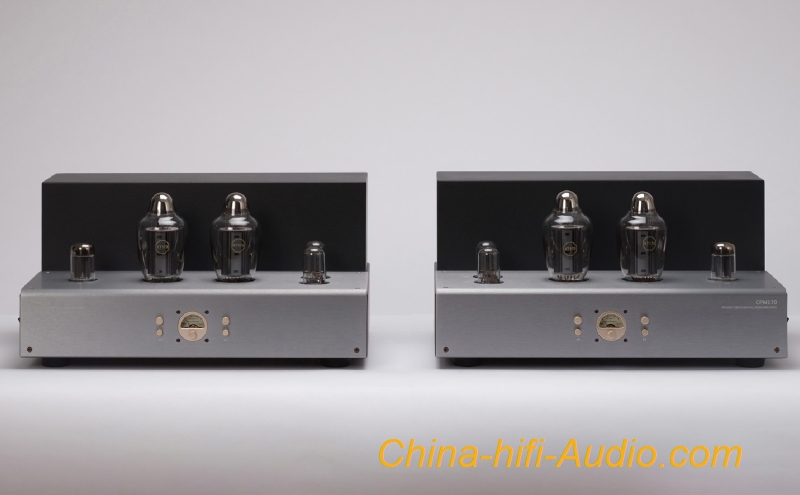

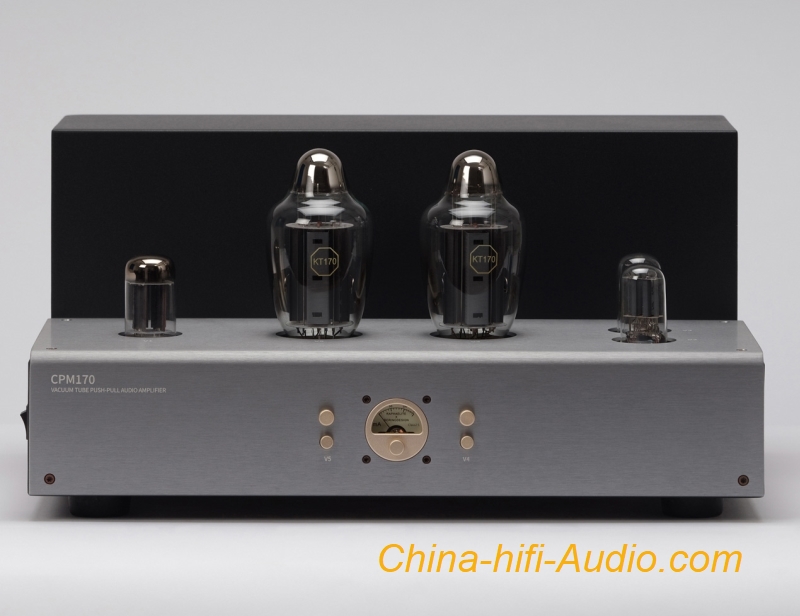

Raphaelite CPM170 Hifi Audio Vacuum Tube Push-pull Audio monoblock amp pair

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Features:

CPM170 is a high-power split power amplifier specially designed for speakers that are difficult to drive such as Dynaudio, ATC, B&W or large corner speakers.

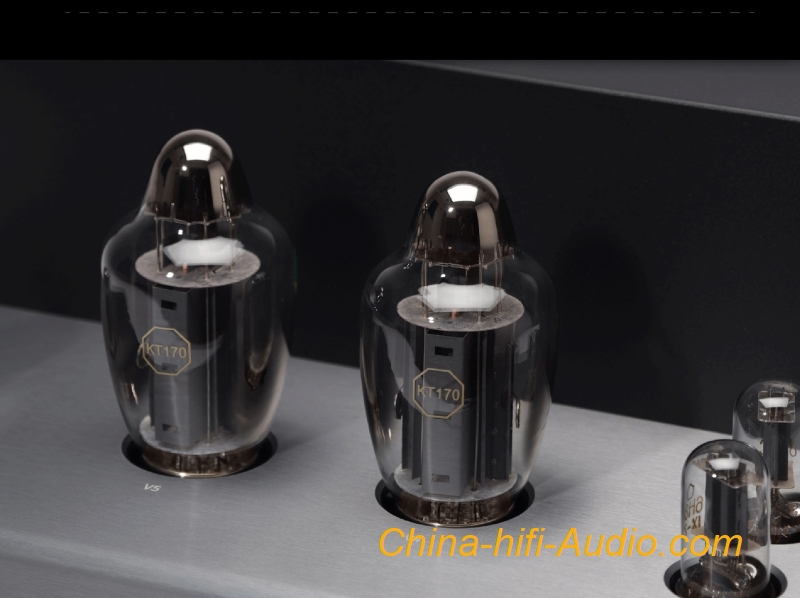

The output power of KT150 tube reaches 120W, and the distortion is less than 1%. Such power can be achieved thanks to the use of high-priced high-voltage film capacitors (CBB).

Let the power tube work under high voltage and low current. In this working state, the sound is delicate and dynamic, and the performance is completely better than the low voltage and high current solution of multiple tubes connected in parallel.

The power supply system of the whole machine uses two 400w power transformers to supply power separately, with a total power of 800W; the low-voltage power supply has a slow-start all-tube rectifier circuit, allowing the tubes to work safely and stably.

Specifications:
Model：CPM170
Tubes： KT170x4 6H8Cx4 GZ34x2
Input Sensitivity: 620mV
Power Output: 120Wx2 THD<1%
S/N Ratio: 88dB
Input Impedance: 100KΩ (unbalanced)/600Ω (balanced)
Output Impedance:4Ω 8Ω (can be changed to 16Ω)
AC Input: AC 220V/230V
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.
Power Consumption: 160Wx2
Frequency Response: 5Hz-80KHz (±1dB @ 10w 8Ω)
Dimension: (W*D*H) 450x330x230mm (18*13*9 in)
Net Weight: 24.5kgx2
Gross Weight:50 kg (100LB)
