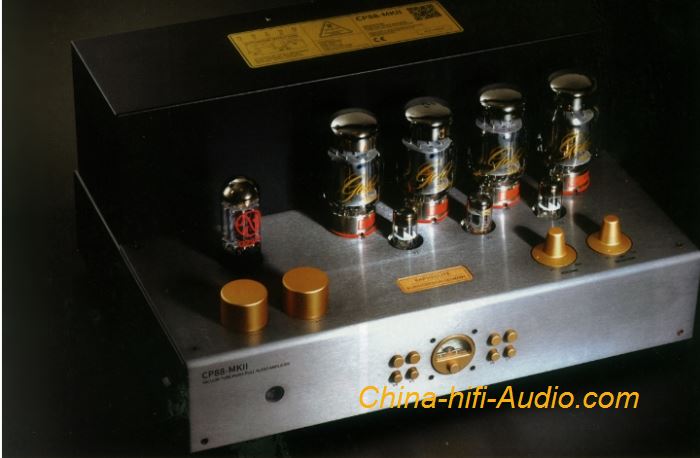

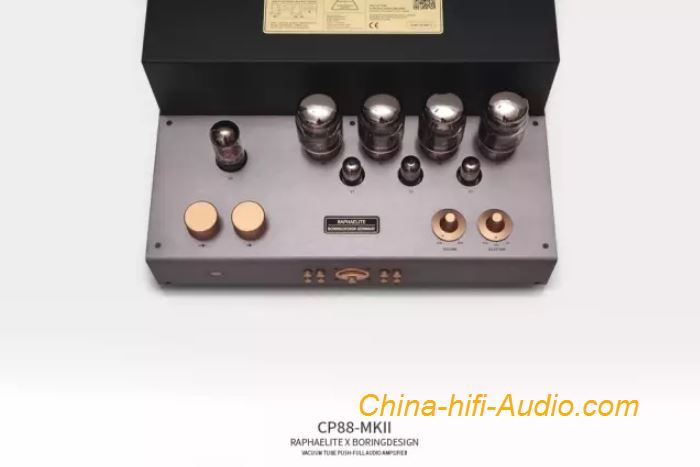

Raphaelite CP88MKII HiFi vacuum tube amplifier push-pull stereo amp KT88x4 valve

Product Price: Starting at: $1,319.75 USD

  • Product Model: Model: MUIA9832088
  • Product Weight: Shipping Weight: 26kg
  • Product Quantity: 2 Units in Stock

Please Choose:

  • Add to Cart:
  • Max: 5


Raphaelite CP88MKII HiFi audio tube amplifier push-pull stereo amp, high power and low distortion audiophile integrated amplifier with KT88x4 valves.
100% Brand New

Please note that this product have two editions for choose, Standard edition or Deluxe edition.

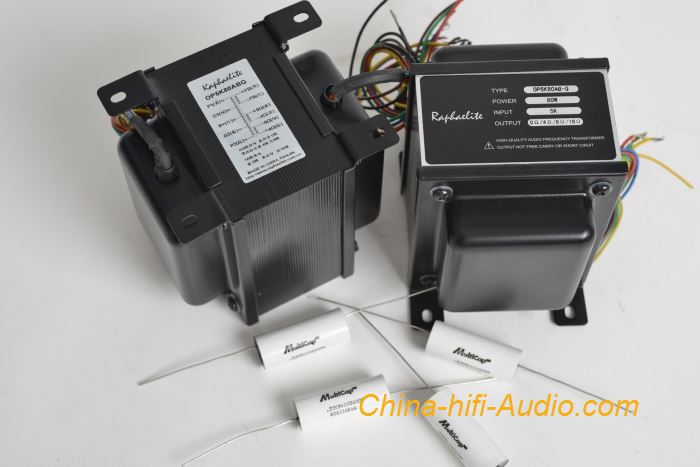

Deluxe edition is configured as follows: CP88MKII comes standard with Rafael patent EM version fully coupled 5K50ABQ output transformer + American antique oil immersed CBB capacitor 0.082uF1000V coupling capacitor, upgraded to fully coupled OP5K80ABQ advanced version of output transformer + MIT RTX series US imported 0.22uF400V fever capacitor.


All items guaranteed 100% BRAND NEW in the original edition Box.


CP88-MKII is the second product designed and manufactured by RAPHAELITE and the German STUDIO BORINGDESIGN design firm after CS30-MKII. With its comprehensive design, the CP88-MKII provides users with a vacuum tube audio amplifier with superior sound, balanced energy and detail, and functional and aesthetic.

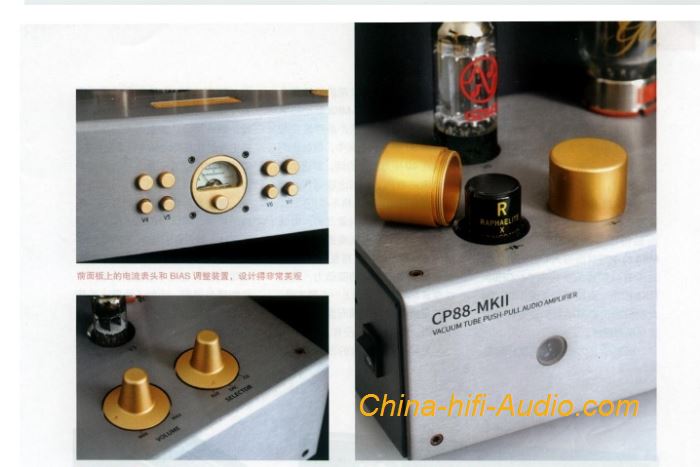

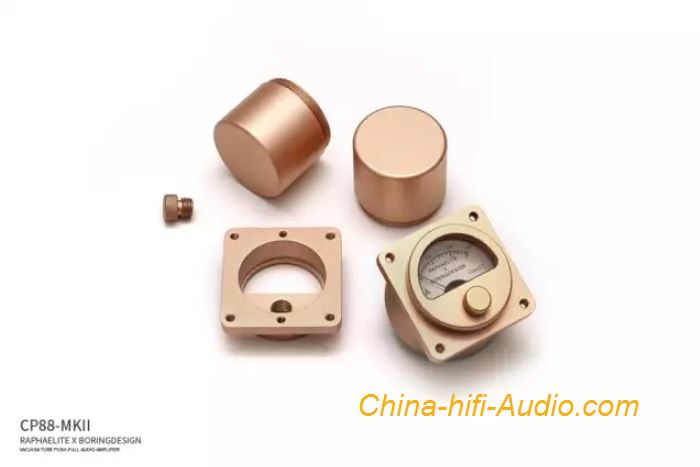

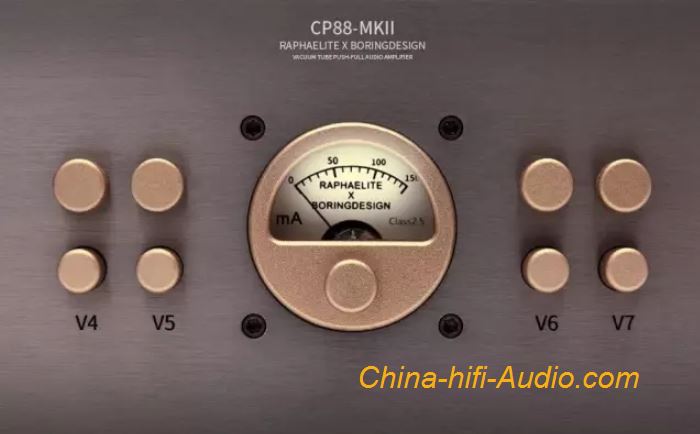

STUDIO BORINGDESIGN team carried out the overall structural design, with the L-shaped aluminum profile panel to further strengthen the structure under the premise of providing high rigidity; the compact BIAS adjustment module on the front panel and the power tube current adjustment at a glance; all-aluminum backlight current meter headband There is a hand-screwed head indicator to correct the safety bolts; and a full-featured all-aluminum volume remote control.

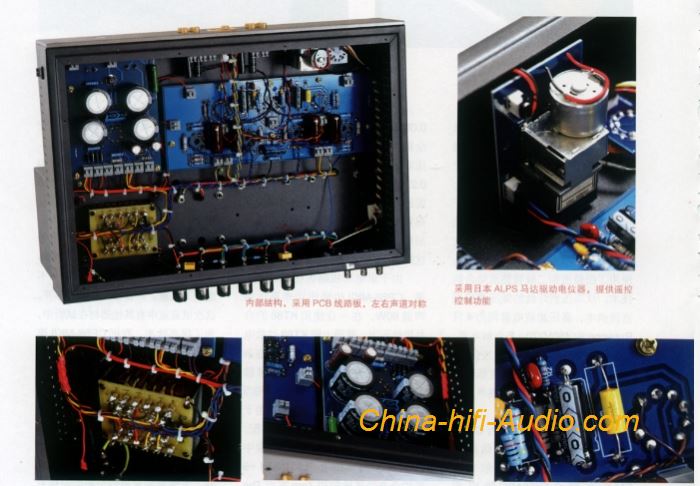

The CP88-MKII is a high-power, low-distortion amplifier designed for the characteristics of the KT88 tube. It is stable and reliable, and achieves our ideal tone concept: full, delicate sound, and rich in detail. It depends on our use of Raphael's patented unity-coupled output transformer in conjunction with precision circuitry. CP88-MKII uses 114mm Japan NIPPON STEEL electromagnetic steel sheet 400W high power power transformer can continuously provide stable current, and has very good control for the speaker. The whole machine uses imported electronic tubes, gold-plated ceramic tube holders; ALPS remote control motor potentiometers and advanced rhodium-plated binding posts to ensure the running stability of the CP88-MKII.

Tubes: KT88x4 12AT7x2 6N1Px1 GZ34x1
Input Sensitivity: 300mV
Power Output: 2 x 60 W (RMS THD<1% 1KHz 8Ω)
S/N Ratio:>80dB
Input Impedance:100KΩ
Output Impedance: 4Ω / 8Ω
AC Input: AC220V / 230V
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.
Power Consumption: 220W
Frequency Response: 15Hz-30KHz (-3dB)
Net Weight:24KG

This product was added to our catalog on Saturday 21 July, 2018.
