Opera Consonance Reference 8 Pro music streamer DLNA wifi bluetooth 32Bit/384kHz

Product Price: $2,853.77 USD

  • Product Model: Model: MUIA9831527
  • Product Weight: Shipping Weight: 10.9kg
  • Product Quantity: 3 Units in Stock

Please Choose:

  • Add to Cart:
  • Max: 5


Opera Consonance Reference 8 Pro digital music streamer DLNA SPDIF bluetooth wifi mobilephone wireless network 32Bit/384kHz
100% Brand New

You can play the music easy with your iphone or Android mobile phone to get a hifi sound with this Opera Consonance Reference 8 Pro digital music streamer


All items guaranteed 100% BRAND NEW in the original edition Box.


Opera Consonance Reference 8 Pro HD Digital Music Player Streamer

Reference 8 pro (referred to as R8 pro) is a representative of Oberkoll's third-generation high-definition audio player. The core system uses a clock frequency of 1.5G and a 64-bit quad-core ARMV8 embedded processor. The performance of processing and playing high-definition audio files has reached a new level.
In terms of control methods, it is possible to use existing third-party manipulation apps, such as 8player and Bubbleupnp, and at the same time, it is easy to use OBO's “browser control interface”.

The R8 pro has the following features:
1. Both the mobile phone and the PAD mobile terminal and computer can use the browser to enter the control interface to conveniently control the playback of the machine, regardless of the system version and APP upgrade.
2. Supports all major audio formats and sampling rates, and has a standard DLNA protocol, which can easily complete the stream push of mobile devices or computers. At the same time, high-definition music files of various sampling rates stored in the NAS can also be conveniently played.
3. USB2.0 interface recognizes 3T or more memory for local playback.
4. An external optical drive can be connected via a USB 2.0 interface, allowing you to play CD recordings directly as well as slow-track CDs to store files in memory.
5. While embedding a large number of Internet radio stations, it supports users to add their own links and enrich their listening through their own preferences.
6. Provide rich digital input interfaces such as coaxial, optical fiber and bluetooth for users to use high quality decoding part.
7. The analog output still uses a special type of DC analog filter, balanced and unbalanced two output methods, providing a separate set of electronic tube buffer output, user-friendly choice.
8. During playback, the five digital filter modes, phase, etc. of the decoder can be set at any time to enhance the listening requirements.
9. The decoder chip board adopts a plug-in structure to facilitate future upgrades.

Technical specifications:
Streaming Media Protocol: UPnP AV protocol with audio streaming extension, Gapless Playback

Support audio file format:
DSD Lossless: DSF (DSD), DIFF (DSD), ISO
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, APE
Compression (lossy) AUDIO:MP3,AAC

Support audio sampling rate, number of bits and number of channels:
PCM, 44.1khz-384kHz, 16-32bit, Stereo
DSD, 2.8MHz-11.2MHz, 1bit, Stereo

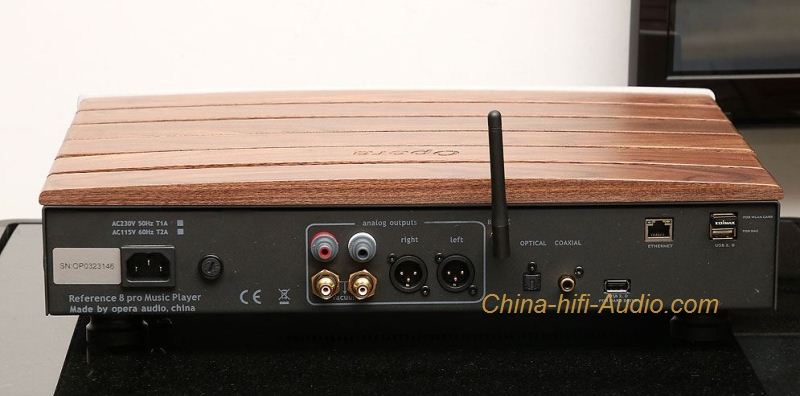

Input port: Ethernet port, USB2.0, digital input SPDIF, Optical, Bluetooth (name operaaudio)

Analog audio output port: XLR balanced, 4.8Vrms; RCA unbalanced, 2.4Vrms
Digital audio output port: SPDIF, PCM 44.1kHz-192kHz, 16-24bit

Distortion: less than 0.0025%, 0.08% (RCA tube output)
Signal to noise ratio: > 110dB (RCA, XLR)
Power supply voltage: 100V - 240V 60Hz/50Hz(+-10%), 220V is in stock.
            (100V, 110V,120V, 220V, 230V, 240V version will take 3-14 work days to order)
Dimensions: 14cm x 44cm x 33cm (HxWxD)
Net weight: 8.9kg (wood roof) / 12.9kg (metal roof)
Gross weight: 10.9kg (wood roof) / 14.9kg (metal roof)

This product was added to our catalog on Wednesday 23 May, 2018.
