G&W Tsinghua TW-J9HA transistor headphones amplifier amp gold

Product Price: $128.37 USD

  • Product Model: Model: MUIA983303
  • Product Weight: Shipping Weight: 1.5kg
  • Product Quantity: 4 Units in Stock

  • Add to Cart:
  • Max: 10


G&W Tsinghua TW-J9HA transistor headphones amplifier amp gold
100% Brand New


All items guaranteed 100% BRAND NEW in the original edition Box.



Input Sensitivity: 220mV

Rated output power: 2 × 800mW

Frequency response: 10Hz ~ 500KHz (-1dB)

Total harmonic distortion: ≤ 0.001% (1KHz; V0: 2.5V)

Signal to Noise Ratio: ≥ 106dB (input short circuit)

Can drive: 16Ω ~ 600Ω impedance headphones

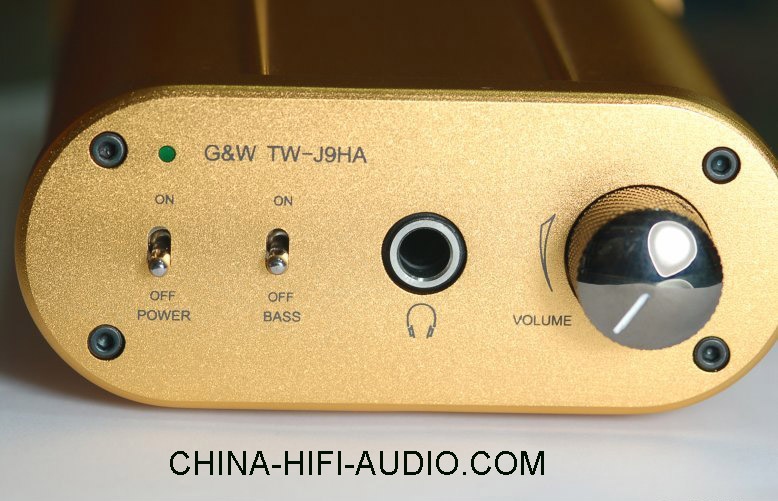

Has a bass boost function: 0dB ~ +3 dB (100Hz)

Dimension: W 101mm × depth 170mm × 43mm high

Net weight: about 0.5kg

Shipping weight: 1.5kg

Power supply: 110/220V (110V, 120V, 127V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock.

Circuit Organization: U.S. National Semiconductor Corporation operational amplifier LM4562HA add transistor enlarged current.
The op-amp low noise, dynamic, wide sound field, distortion, sound pretty, do amp sound amazing!

This product was added to our catalog on Friday 19 December, 2014.
