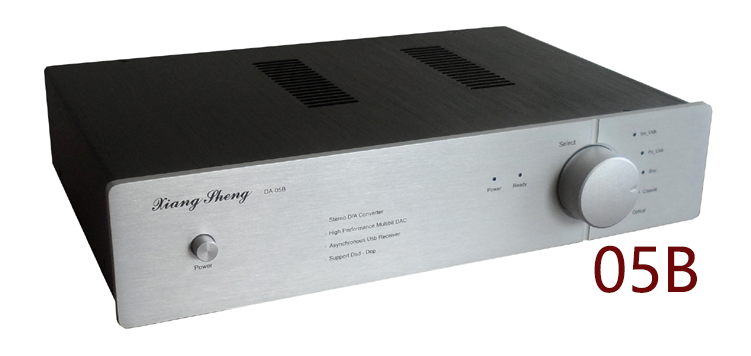

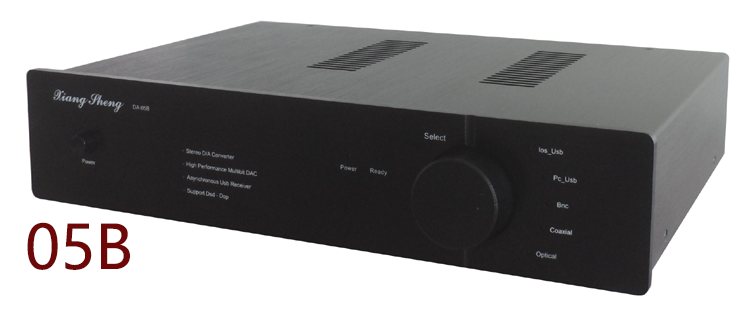

XIANGSHENG DA-05B asynchronous USB DAC DSD xmos AK4495 AK4497 24bit/384K 32/192

Product Price: Starting at: $213.04 USD

  • Product Model: Model: MUIA9831352
  • Product Weight: Shipping Weight: 4kg
  • Product Quantity: 9 Units in Stock

Please Choose:











  • Add to Cart:
  • Max: 5



Current Reviews: 1


paypal

XIANGSHENG DA-05B asynchronous DAC DSD xmos Daul mono AK4495 AK4497 Balanced XLR new


Maximum support sample rate: Usb in support Pcm to: 24bit / 384kHz or 32bit / 192kHz.
There are 3 versions of this XIANGSHENG DA-05B DAC, you can choose one:
Ver B: Xmos USB DAC IC + Dual-Core DSD Decoder AK4495EQ
Ver B: Xmos USB DAC IC + Dual-Core DSD Decoder AK4495SEQ
Ver C: Xmos USB DAC IC + Dual-Core DSD Decoder AK4497EQ
We upgraded a bigger R-core transformer, so the power is enough and have a nicer sound.






















Declaration

Xiangsheng DA-05B DSD version DAC has been officially available
1, AKM's chip is one of the few can be directly decode DSD chip
2, AK4495 take into account the high index and listen to the feeling Maximum support 32bit 384K and DSD256.

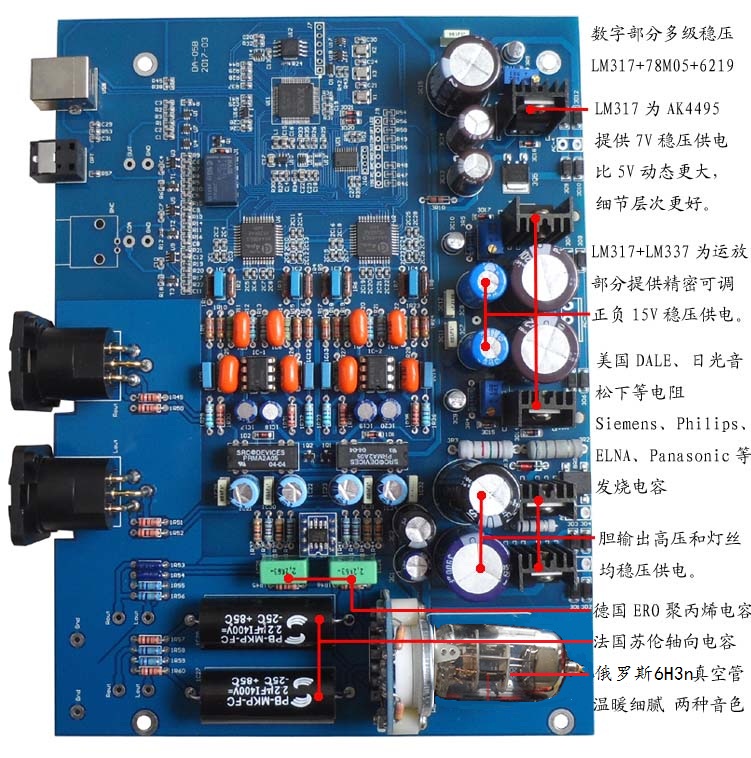

3, AK4495 7V voltage supply, it is better than 5V power supplyon dynamic sound field.
4, AK4495 double MONO mode, non-simple parallel, than the single-chip dynamic large detail level.
5, the real solution to DSD to switch noise and noise.

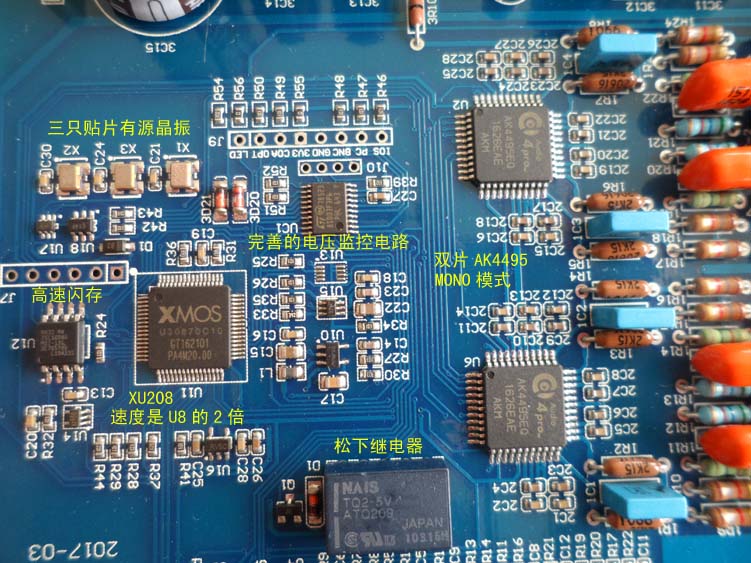

6, Xmos-Xu208 have double speed of U8.
7, DA-05B USB support Apple phone, Apple mac system free drive.
8, the tube used Russian 6H3n or GE 5670(Made in USA).

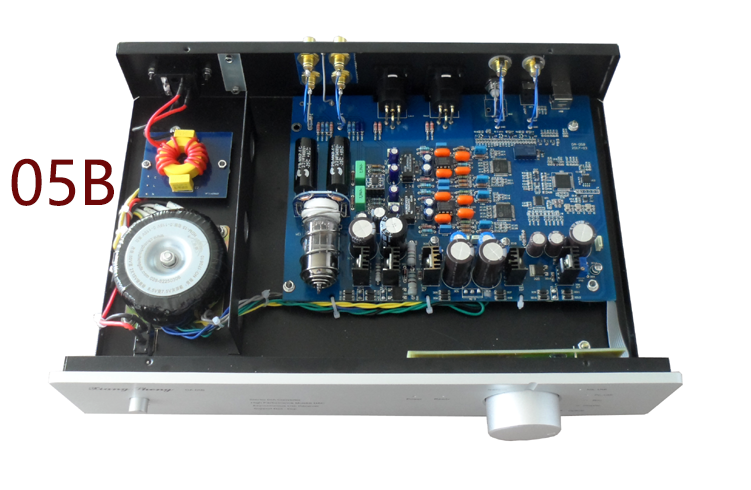

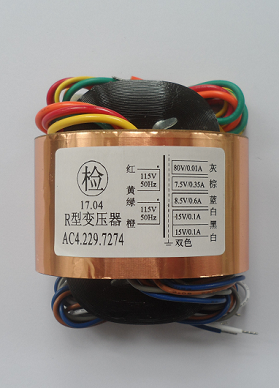

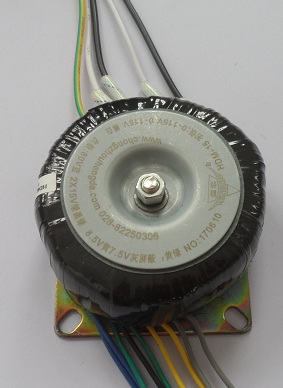

9, DA-05B transformer using R-core transformer(Upgrade version) and Toroidal transformer optional. R-core transformer imported Z11 core, with copper shield. Ring transformer for the Chongzhou Hengda Transformer Factory custom high-quality constant transformer, with isolation layer. Are oxygen-free copper wire wound system. No demand is random delivery.

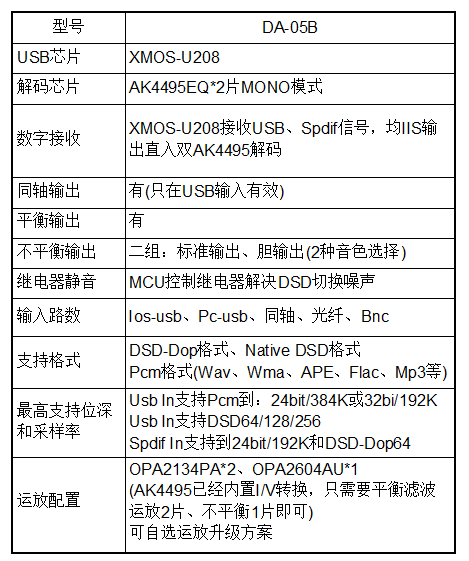

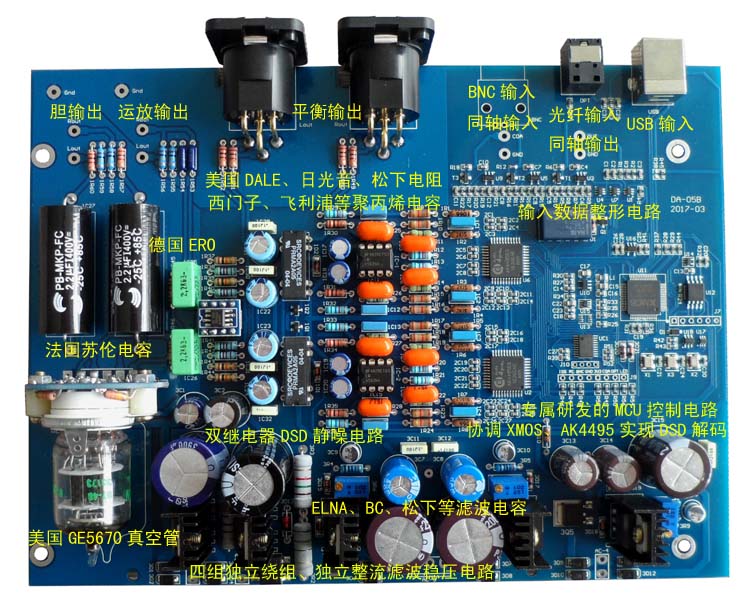

MOS-U208 receive USB, Spdff signal, full IIS input output daul AK4495 decoding
Coaxial output: Available at USB input only
 XLR output: 1 group
RCA output: standard output, 2 kinds of sound to choose to listen

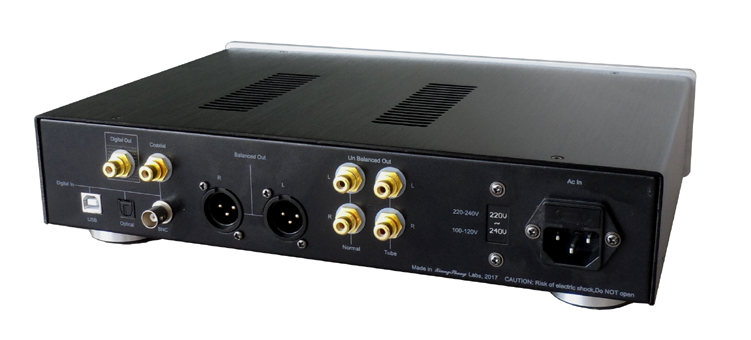

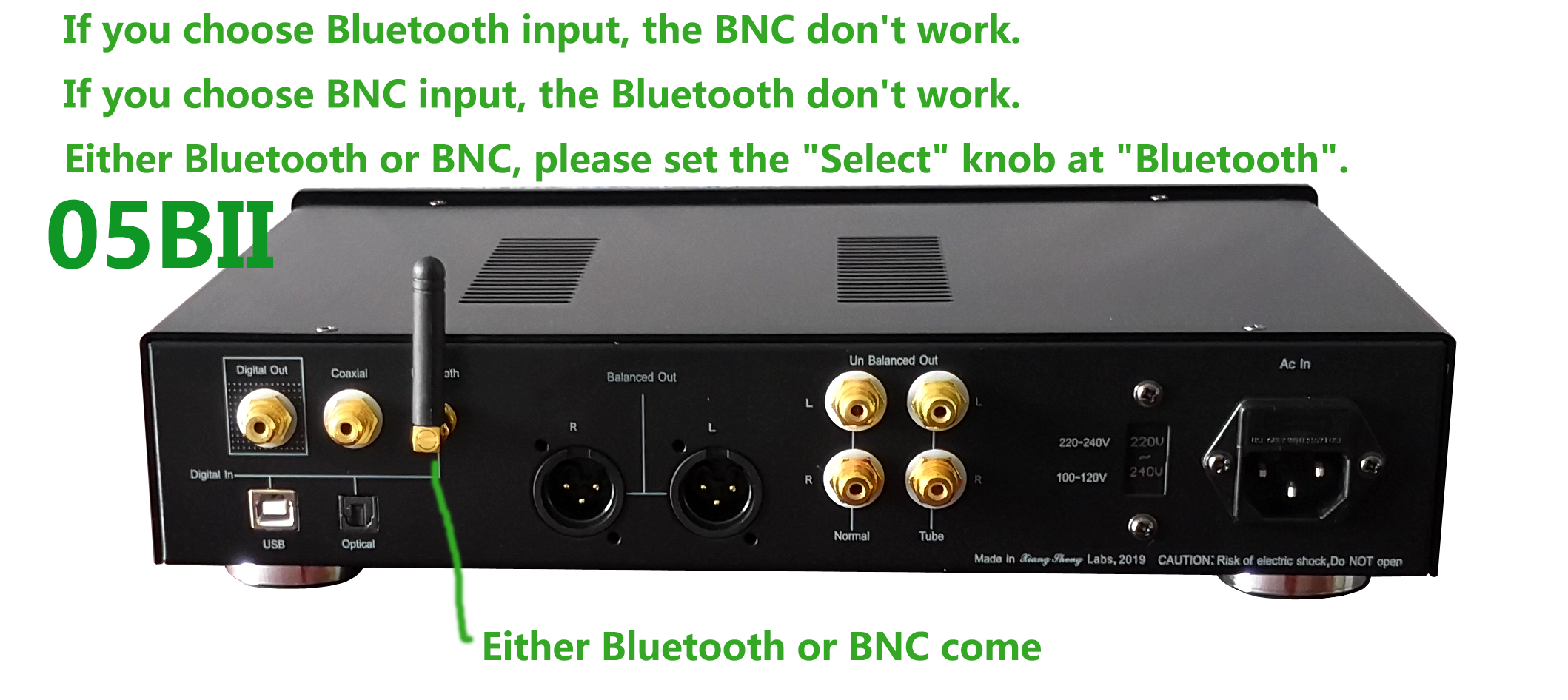

Input jack: Ios (apple) -usb, Pc-usb, coaxial, fiber, Bnc

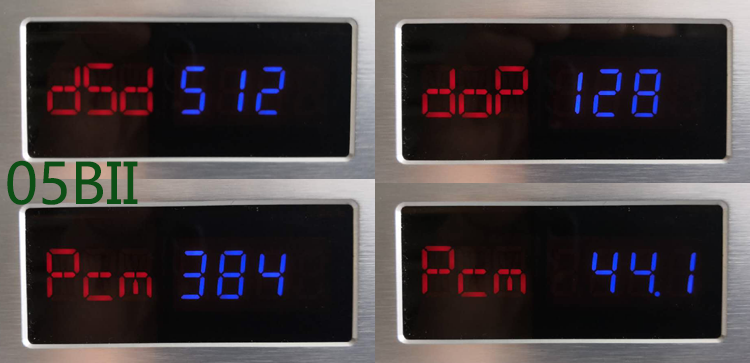

Support sound format: DSD-Dop, Native DSD, Pcm format (Wav, Wma, APE, Flac, Mp3, etc.)
Maximum support sample rate: Usb in support Pcm to: 24bit / 384K or 32bit / 192K
Usb in supports DSD64 / 128/256
Spdif in support to 24bit / 192K and DSD-Dop64
Op amp: OPA2134PA * 2, OPA2604AU * 1


Specification:
Dimensions: width 330mm, depth 220mm, height 70mm (without knob, machine feet, connector size)
Frequency response: 20Hz-35KHz
Signal to noise ratio: normal port output: 110dB
Harmonic Distortion: Normal Port Output: <0.001%
Support the following 24bit digital stream
Supports the following sampling frequencies: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192KHz
Output level: balanced output 9V, unbalanced output 2V
Dynamic range: balanced output greater than 120dB, unbalanced output greater than 110dB
Input impedance: AES / 120 ohm, other digital interface / 75 ohms
Line output impedance: 600 ohms
Net weight: 2.5kg
Gross weight: 4kg
Input Power Voltage: AC100V - AC240V (60Hz / 50Hz) (100V, 110V, 120V, 127V, 230V, 240V version will take 3-14 work days to order. 220V version is in stock.

This product was added to our catalog on Saturday 23 September, 2017.
