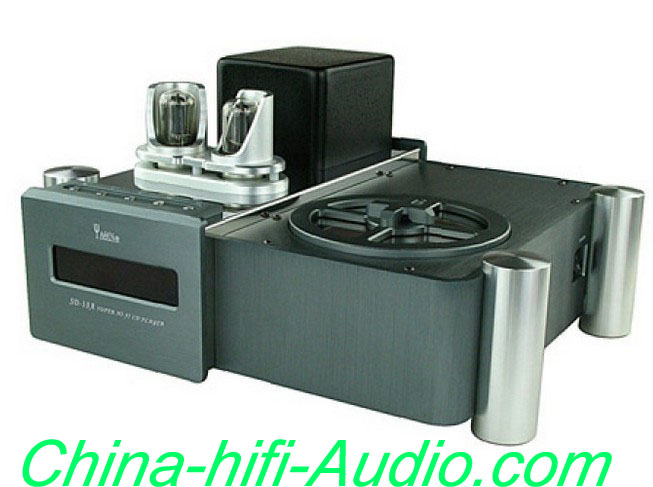

YAQIN SD-33A Vacuum Tube hifi CD&HDCD PLAYER Top-loading

Product Price: $636.77 USD

  • Product Model: Model: MUIA983910
  • Product Weight: Shipping Weight: 14kg
  • Product Quantity: 0 Units in Stock

Please Choose:

Sold Out



YAQIN SD 33A Vacuum Tube hifi CD&HDCD PLAYER
100% Brand New

with a remote control


All items guaranteed 100% BRAND NEW in the original edition Box.



a) Use CD dedicated Sanyo precision movement, good stability, its reading ability.
b) Servo circuit using the Philips SAA7824 chip.
c) Using U.S. Company BB PCM1794U with DAC chips and decoders.
d) using the excellent and stable multi-filter circuit, effectively remove the digital signal, giving you high Fidelity music signal output.
e) Using two sounds good to promote the strong flavor of bile 6N8P amplification circuits and high Fidelity (OPA2604) op amp output, two groups to choose from.
f) with coaxial digital signal output terminal for external audio decoder.
g) The machine coupling circuit uses audiophile grade capacitors and imported French Suren grade fever sound special electrolytic for filtering and high-precision manufacturing metal oxide film resistors.
h) Dedicated power transformer silicon steel imported audio (thickness 0.35mm) and high
i) Strength enameled wire and special winding OFC production process, enables the system to electromagnetic interference less, driving strong, transparent sound quality and powerful.


Audio output level: Balanced 4V (± 0.5dB)
Single-ended 2V (± 0.5dB)
Frequency response: 10Hz-35kHz (± 0.5dB)
SNR: ≥ 110dB (A-weighted)
Distortion factor: ≤ 0.005%
Dynamic range: 117dB

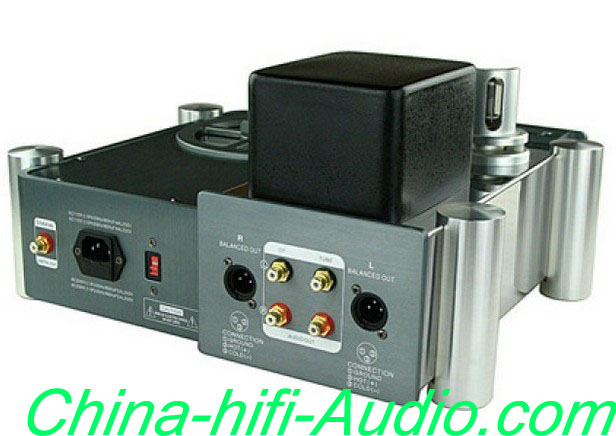

Analog Output: Balanced group, unbalanced two groups
Digital Output: a group coaxial

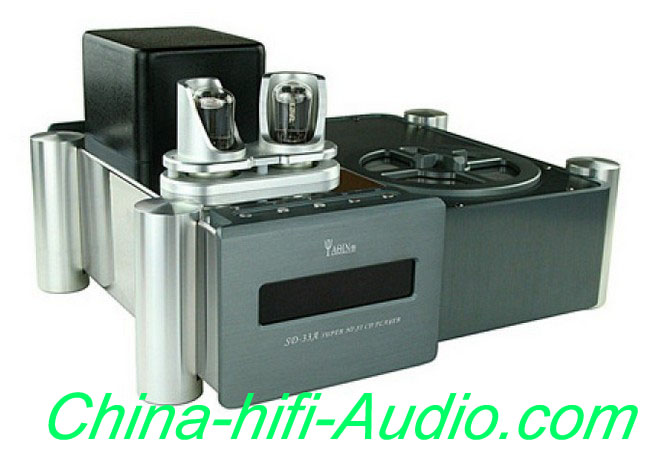

Tube: 6N8P × 2
Power Supply: AC110V-120V/220V-240V 60Hz/50Hz (110V-120V version will be takes 7-14 working days to order)
Dimensions: 390mm x 345mm x 205mm
Gross weight: 14kg
