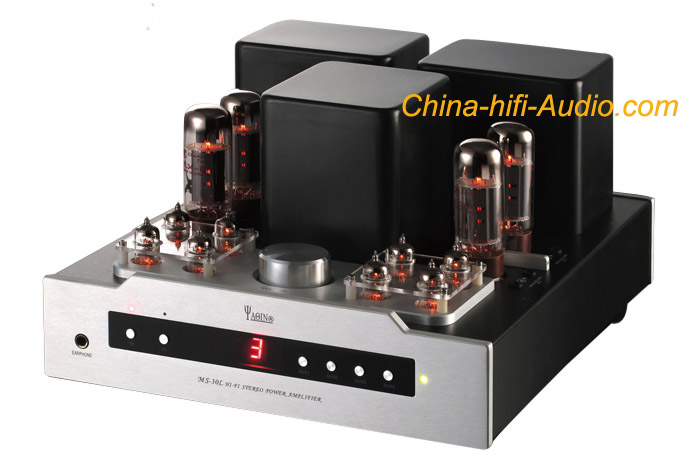

YAQIN MS-30L INTEGRATED AMPLIFIER EL34 Vacuum Tube Hi-Fi with remote control

Product Price: $692.48 USD

  • Product Model: Model: MUIA983769
  • Product Weight: Shipping Weight: 26kg
  • Product Quantity: 1 Units in Stock

Please Choose:

Version



Remote Control





  • Add to Cart:
  • Max: 10


Current Reviews: 1


paypal





YAQIN MS-30L INTEGRATED AMPLIFIER EL34 Vacuum Tube
100% Brand New


come with a remote control





Declaration


All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

FEATURES:
The latest version of EL34 output amplifier from Yaqin;
Infrared remote control for volume adjustment and input selections;
TR/UL (Triode and Ultra Linear modes) switches on the front panel;
Earphone jack on the front panel;
External bias adjustment;
High DC voltage delay circuit to protect tubes;
Class A push-pull power amplifier to reduce distortion;
Output transformers manufactured with Japanese silicon steel sheet and high-quality enamelled wire, which offer a wide dynamic range at full rated output;
Utilizes the audiophile capacitors and high quality metal precision resistors dedicated for audio frequency;
Applies special potentiometer as volume controller with low noise, and durable;
Beautiful heavy duty chassis. Aluminum chassis top, front panel, and bezels, stainless steel chassis, and steel bottom;

Specifications:
Output Power: 50W per channel (8Ω)
Valve / Tube: EL34B × 4, 6J1 × 8
Frequency: 5Hz ~ 75KHz
Signal/Noise Ratio: >88dB (A weight)
Earphone Output: 32Ω
Ohms: 4 - 8 ohms
Distortion Harmonic: ≤1.6% (at 1KHz)
Input Sensitivity: 0.23V(1KHz)
Power Consumption: 180W

Power supply voltage: 110/220V 60Hz/50Hz
(110V,120V, 127V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock

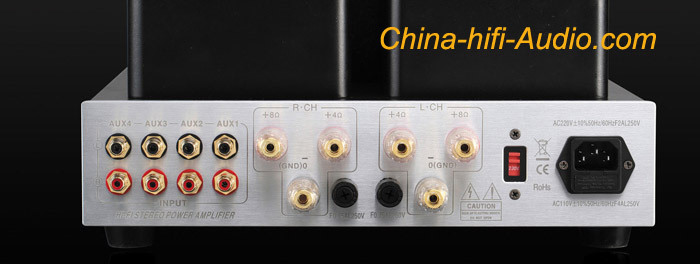

Input Jack: Four groups of gold plated Isolated RCA jacks (AUX1 – AUX4)
Output Jacks: Two channels with two groups of gold plated jacks.
Size Dimension: 32cm(W) x 42cm(D) x 21cm(H)
Packing size: 36cm(W) x 44cm(D) x 25cm(H)
Net weight: 24 kg
Gross weight:26kg
Colour: Silver & Black Body
Packing Includes Tubes, Power Cord, Remote Control
