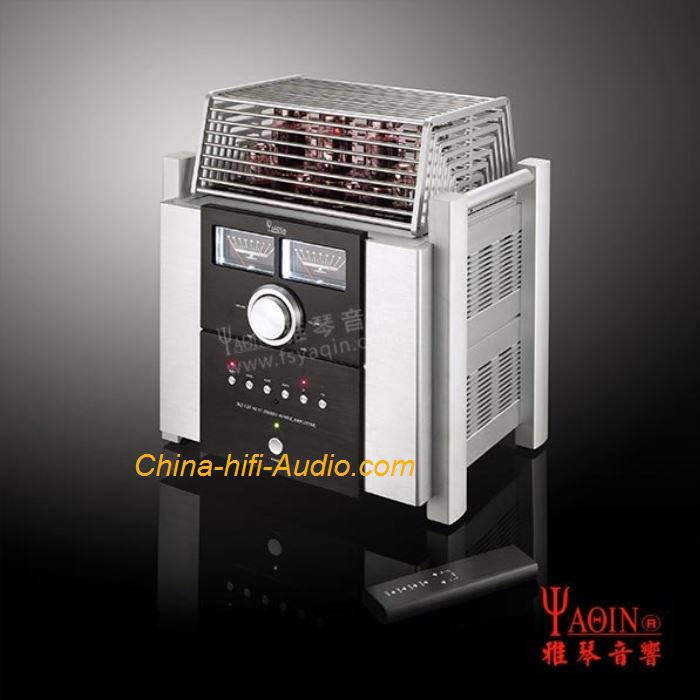

YAQIN MS-120 HiFi audio Integrated Amp Vacuum tube KT120x4 Amplifier push-pull

All items guaranteed 100% BRAND NEW in the original edition Box.

Features:

The circuit characteristics of MS-120:
Use the latest improved export name tube 6SN7EH for powerful power amplification and VU meter for volume level indication.
The best super-linear push-pull power amplifier circuit is used to make the low-frequency driving force and the sound rich.
The front stage is the SRPP amplifier circuit and the "long tail" inverter circuit, which makes the frequency response of the unit wide and distortion small.
The output transformer is made of Suiben imported special silicon steel sheet (0.35mm thick) and high-strength oxygen-free copper enameled wire and special multi-layer layered winding process to ensure the frequency response of the machine is wide, high, medium and low frequency silver is good. Strong and transparent

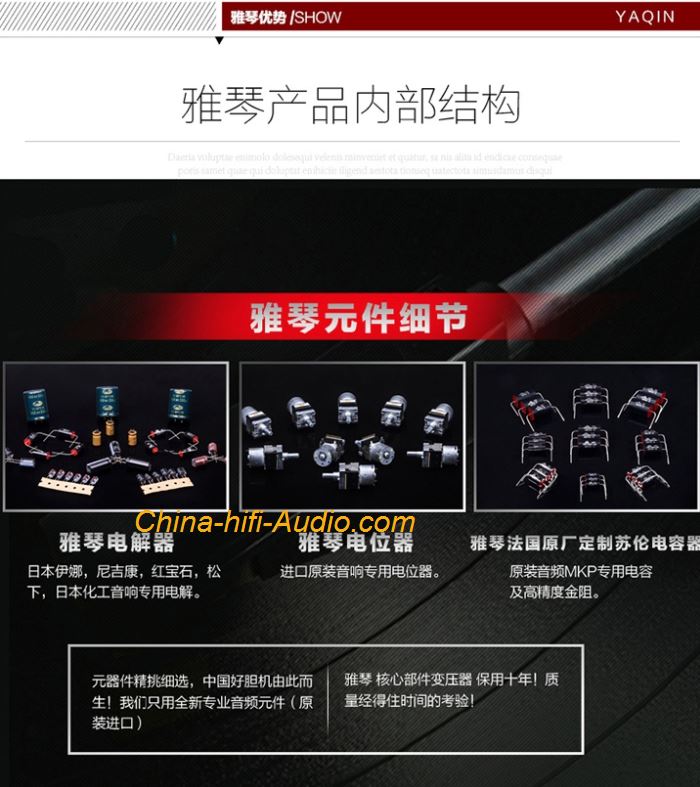

This machine is made of foreign famous factory audio coiled electrolytic capacitors, non-polarized Philips (MKP) capacitors and high quality gold resistance.
The main sound channel uses imported special large volume potentiometer, which has the advantages of quiet background, low noise, no sound and durability.

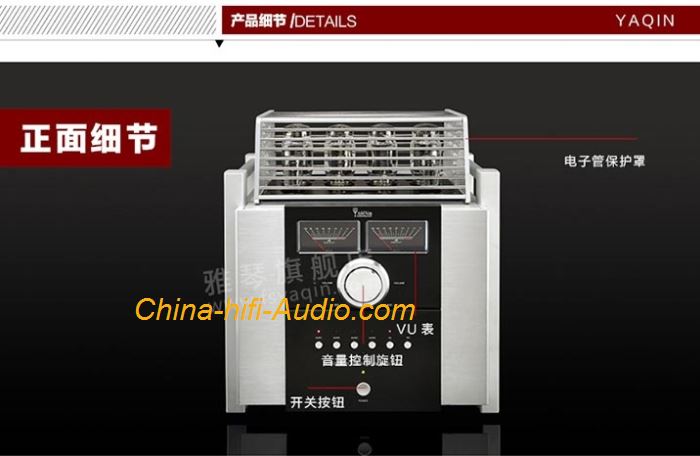

VU indicates the volume level indication, which can accurately and accurately reflect the volume.

Technical indicators
Output power: 80W + 80W (UL connection / 8Ω) 48W + 48W (TR connection / 8Ω)
Frequency response: 10Hz -58KHz (-2dB)
Signal to noise ratio: ≥92dB (A weighting)
Load impedance: 8Ω - 4Ω
Maximum power consumption: 220W
Sensitivity: ≤260mV

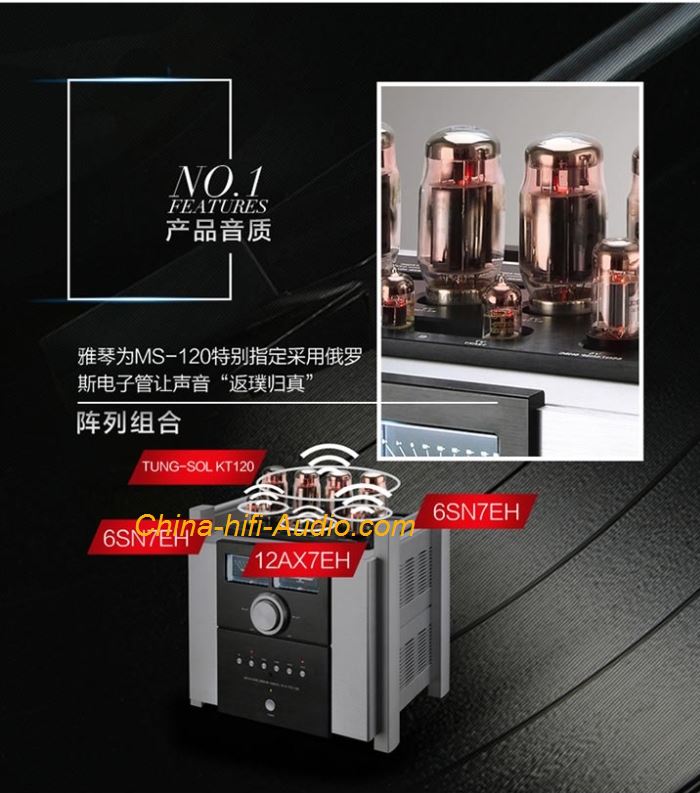

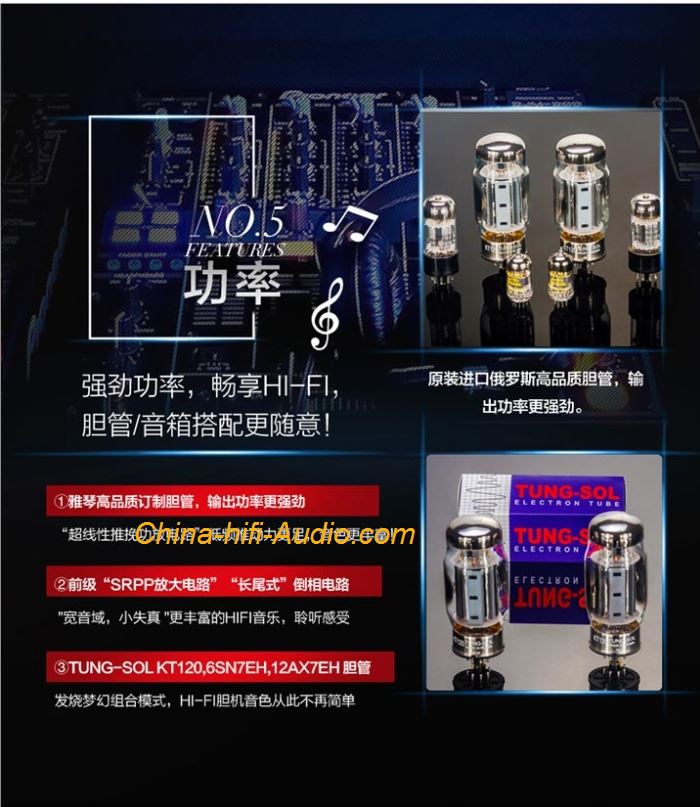

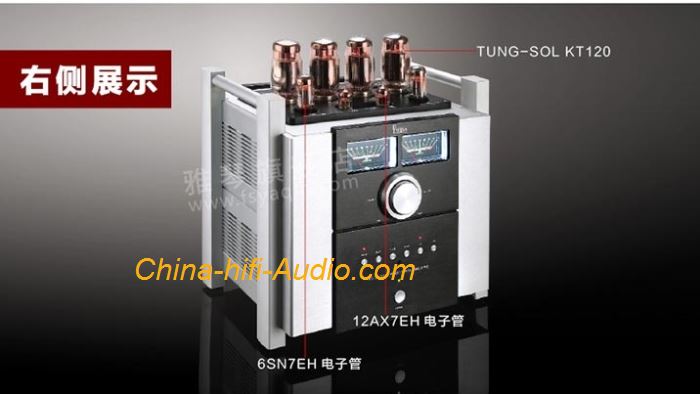

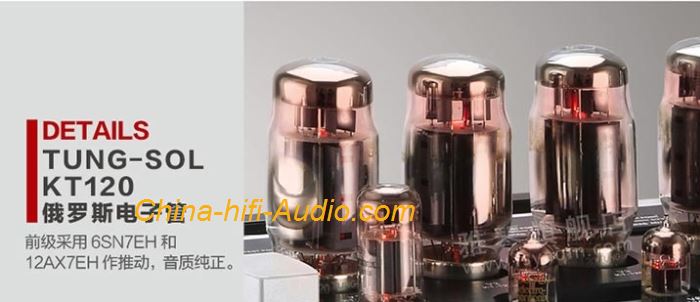

Tube: Russia TUNG-SOL KT120 × 4 Russia 6SN7EH × 2 Russia 12AX7EH × 2
Gross weight: about 55Kg
Net weight: about 48Kg
Dimension: length 385mm × width 405mm × height 455mm

Power supply: 100V - 240V 60Hz/50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.

ONE-YEAR WARRANTY !!!
