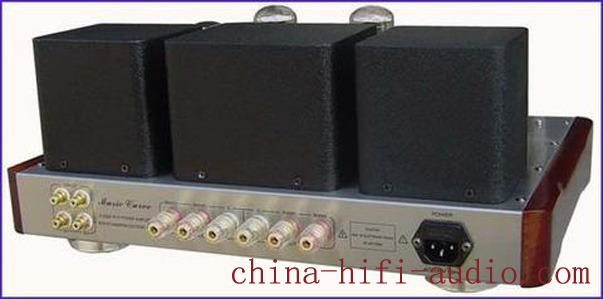

Music Curve D-2020-FU50 hifi vacuum tube Integrated Amplifier

Product Price: Starting at: $718.26 USD

  • Product Model: Model: MUIA983361
  • Product Weight: Shipping Weight: 21kg
  • Product Quantity: 2 Units in Stock

Please Choose:

  • Add to Cart:
  • Max: 10


Music Curve D-2020-FU50 hifi vacuum tube Push-pull Integrated Amplifier
100% Brand New

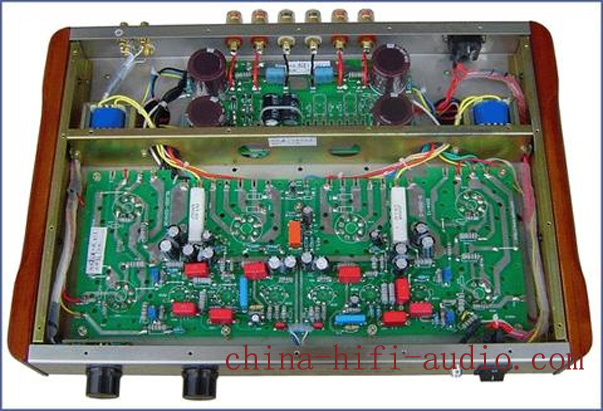

The price is for PCB version, if you need the point to point version, it need to add $20 USD


All items guaranteed 100% BRAND NEW in the original edition Box.



Product Description:

◆ Chassis is made of stainless steel of 1.2mm in thickness with wire brushing.
◆ Big metal knob, comb-like feet for reducing shaking.
◆ High-grade RCA terminal with gold plating.
◆ 4Ω and 8Ω power output terminals with gold plating.
◆ Side panels made from cherry wood.
◆ Blue power indicator.


Input Impedance: 100KΩ
Output Impedance: 4Ω 8Ω
Input Sensitivity: 500--2000mV
Total Hamonic Distortion: less than 1%(1KHz)
Frequeney responses: 20Hz-30KHz+/-1dB
Maximum output: 40W×2(8Ω Triode connection mode)
Signal to Noise Ratio: 89dB
Input Jacks: 2
Output Jacks 2
Pre-tube: 12AT7×2, 12AU7×2, 6N6T×2
rectifier tubes: 5Z3P × 2
power tubes: FU-50 × 4
Power supply voltage: 110/230V 60Hz/50Hz
(100V, 110V, 120V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock

Size: 435mm(W)×180mm(H)×340mm(D)
Weight: 20kg
Gross weight: 21Kg
CHARACTERISTIC: Side panels made from cherry wood. / have Manual Point To Point Welding and PCB as optional.
Power Tube: FU50 ×4;
Tubes for Preamp.Part: 12AT7×2,12AU7×2,6N6T×2;
Tube for rectifying: 5Z3P×2

This product was added to our catalog on Friday 26 December, 2014.
