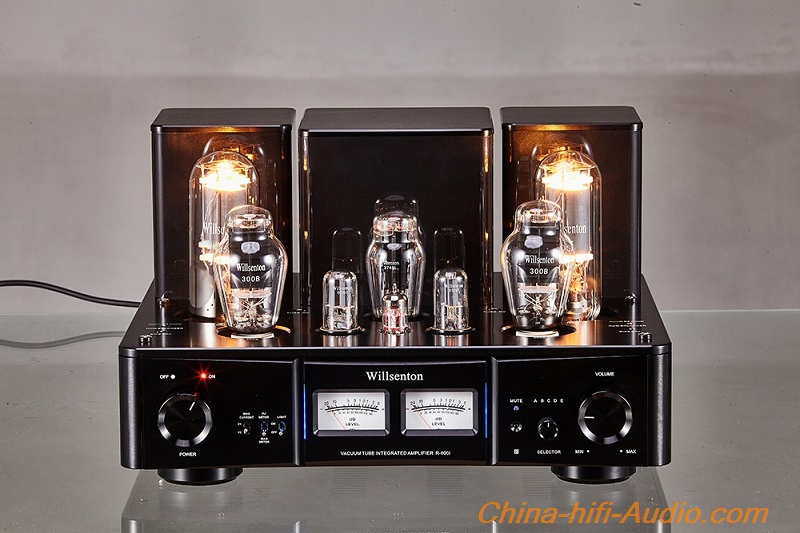

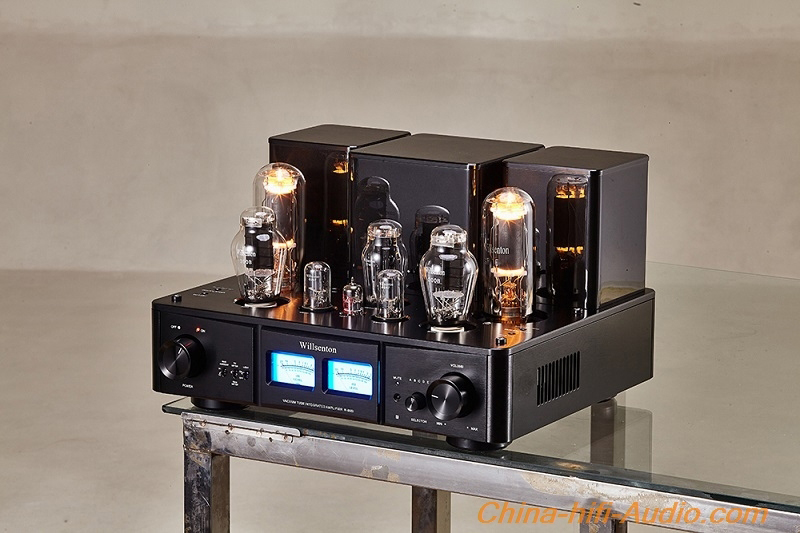

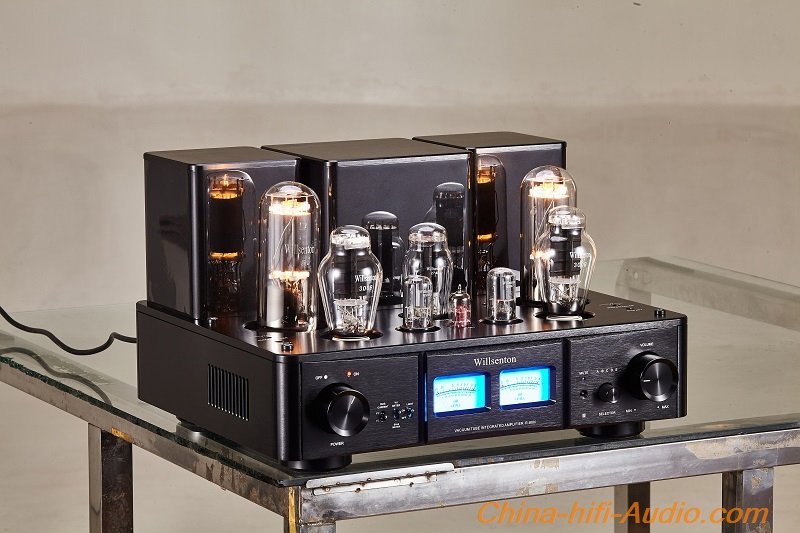

Willsenton R-800i 300B 211 tube Single-ended Class A Integrated Amp & power amplifier with true Balanced XLR input
Export version 100% Brand New
Willsenton provide the Special Tailor-Made Export version to us, use the best parts and technology, looks top grade and Luxury.
Willsenton R-800i 300B 211 is an integrated Amplifier.
This is a Power Amplifier too (there is a group pre-amp input).
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Features:
Hand welding point to point, the main circuit adopts shed welding
Two high-end EI type single-ended output transformers with high-end special technology and high-quality broadband response made of Z11 iron core High-voltage power supply and filament power supply independently use high-efficiency toroidal, high-power power transformers with Z11 cores and special materials.
The front stage uses one 12AX7 and two 6SN7 vacuum tubes; the driving part uses two 300B electronic tubes to amplify the rear stage.
The front stage uses a 5U4G for rectification
The rear stage uses two 211 vacuum tubes for class A single-ended power amplification
Five groups of signal input A, B, C, (D) BALANCE, E (PREIN) This machine is specially equipped with balanced input function and pure rear function
Power-on high-voltage delay and mute delay function (about 30 seconds)
Infrared function remote control
Use Japanese ALPS high-end potentiometer
Easy-to-install plug-in vacuum tube shield
Peripheral power tube bias current adjustment function and power output level meter sensitivity switch
Soft, pure and sleek sound, suitable for listening to various types of music
Product parameters:
Rated output power: 15W + 15W (RMS)
Machine frequency response: 12Hz ~ 35kHz (-1.5dB)
Input sensitivity:
RCA input: 300mV
Balance input: 280mV
Pure power amplifier stage: 1800mV
Input impedance: 100KΩ
Output impedance: 4Ω, 8Ω, 16Ω
Harmonic distortion: 1% (1kHz)
Signal to noise ratio: 90dB
Left and right output balance: <±0.5dB
Power consumption: 380W
Vacuum tube: 12AX7*1,6SN7*2,274B*1,300B*2,211*2
Power supply voltage: AC 100V to 240V 60Hz/50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. (there is a 230V/115V voltage change-over switch inside of body), (100V, and 240V version need to take 3-14 business days to order)
Working conditions: temperature: Temperature: 0℃～40℃ Humidity: 20%-80%
Storage conditions: temperature: Temperature: 20℃～ 70°c Humidity: 20%-90%
Dimensions (W*D*H): (440*410*275)mm (17*16*11 inches)
Net weight: 42kg (92.5LB)
Gross weight: 48kg (106LB)
