Shengya PSM-600 Class A monoblock power amplifiers pair

Product Price:

Always Free Shipping
  • Product Model: Model: MUIA983688
  • Product Weight: Shipping Weight: 84kg
  • Product Quantity: 0 Units in Stock

Sold Out





Shengya PSM-600 whole balance of Integrated amplifiers vacuum tube Class A
100% Brand New



All items guaranteed 100% BRAND NEW in the original edition Box.


1. independent mono balanced transmission amplifier structure, completely eliminate the problem of dynamic crosstalk.
2. the signal input circuit by the FET cascode differential amplifier, the famous transistor differential voltage amplification, the final stage consists of 48 high-power transistors form a powerful lineup output level, and easily promote as low as 2-ohm impedance speakers.

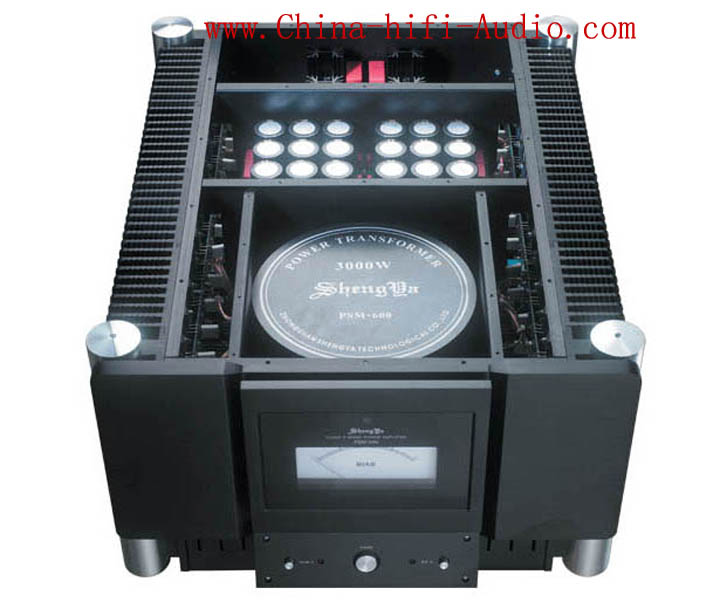

3. 3000W toroidal transformer, 24 million micro-method electrolytic capacitors to form a powerful power supply system. With the huge aluminum heat sink to make the machine working temperature is stable and stability.
4. 150W CPI power and 600W class A and B power, the sound field localization and sound clarity extreme performance, exquisite sound Run thick, large dynamic potential of the powerful pull of mountains and rivers.
5. with balanced and unbalanced signal input selection, you can connect two different sound preamplifier.
6. Output state can be set to Group A or B class, convenient sound and fine-tuning can also reduce power consumption.

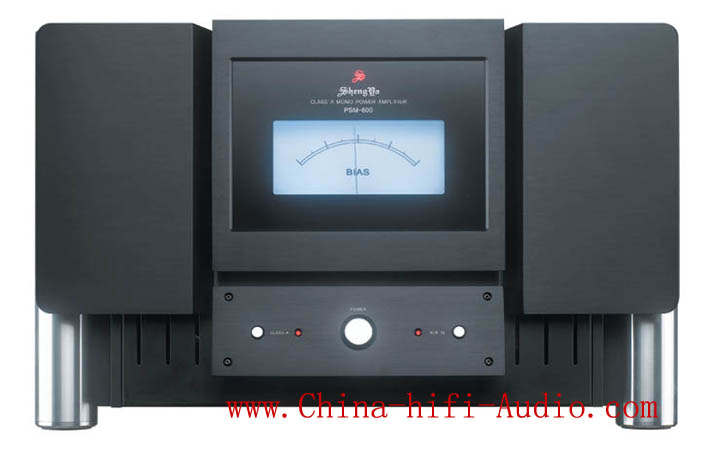

7. additional bias instruction sheet, so that users clearly observed the state of the machine working in the Group A or B class.

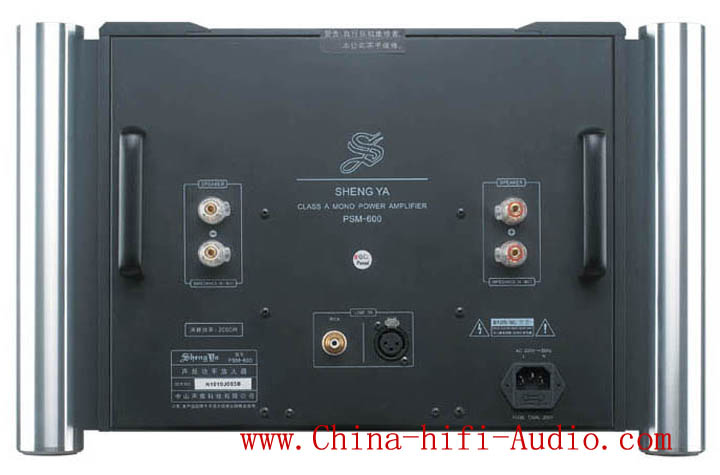

8. Signal input terminals and speaker connection terminals. Selection of the WBT brand made ​​in Germany, a better transmission of the audio signal.

Technical parameters:
* Frequency response: 20Hz-20kHz ± 0.5dB
* Rated output power: 600W (8Ω), 1200W (4Ω) 2400W (2Ω)
* CPI (A) output power: 150W (8Ω)
* Harmonic Distortion: ≤ 0.1% (1kHz 1W)
* Input sensitivity: 1.7V (unbalanced)
* signal to noise ratio: 90dB (broadband)
* Input impedance: 47kΩ
* Power supply voltage: 220V(±10%) 50Hz
* Dimensions(W x H x D): 496 × 310.5 × 658(mm) x 2PCS
* Packing size(W x H x D): 528 × 365.3 × 710(mm) x 2PCS
* Net weight: 40kg x 2PCS = 80kg
* Gross weight: 42kg x 2PCS =84kg
