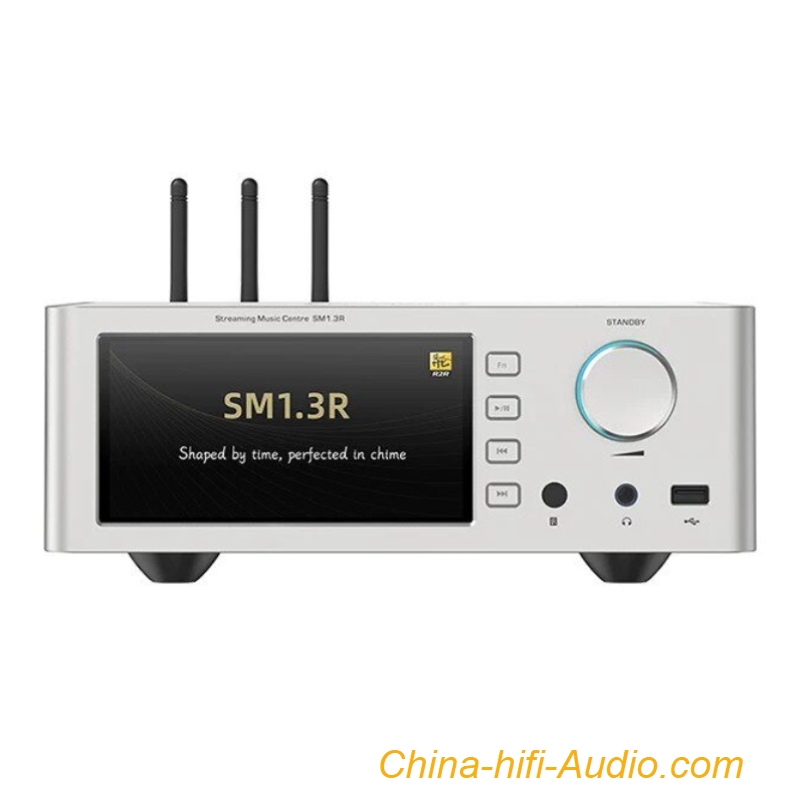

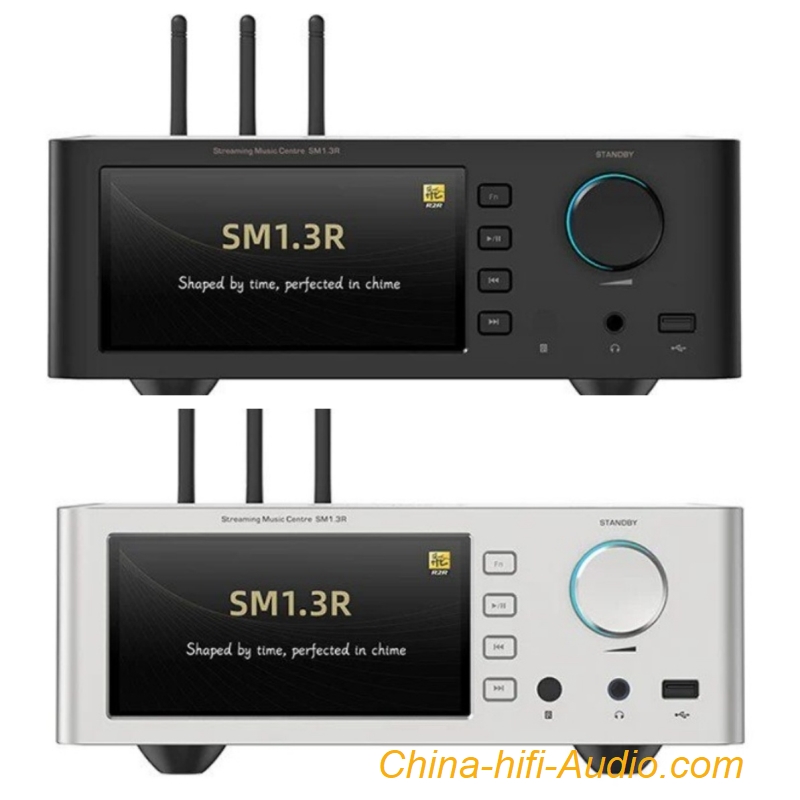

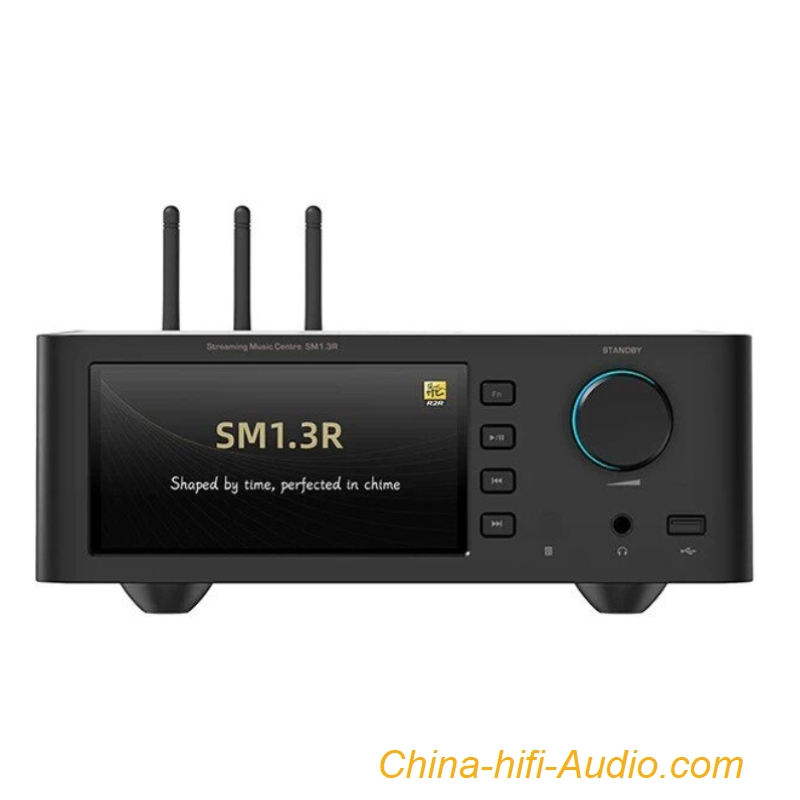

Shanling SM1.3R Streamer Decoder R2R DAC QCC5125 Hi-Res Audio
It is a good Streamer Decoder player.
support USB card input to read MP3, WAV, AAC, WMA
Declaration
Specification:
Dimensions (includingfeet): 280mm* 280mm" 110mm
Weight: 7 kg

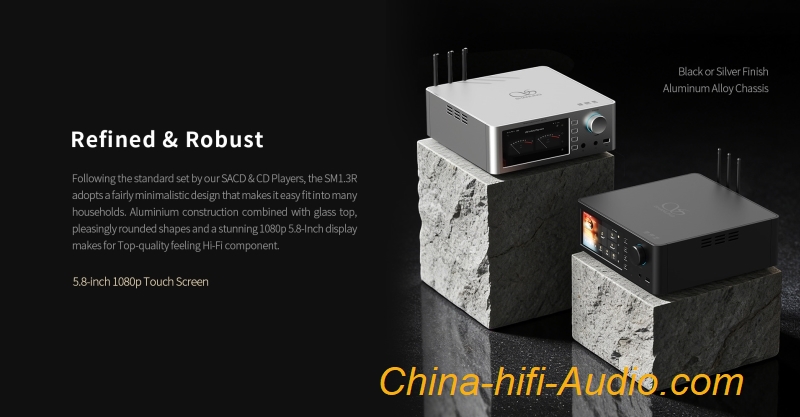

Screen: 5.8-inch 1080P Sharp Touch Screen
Processor: Rockchip ARM CPU

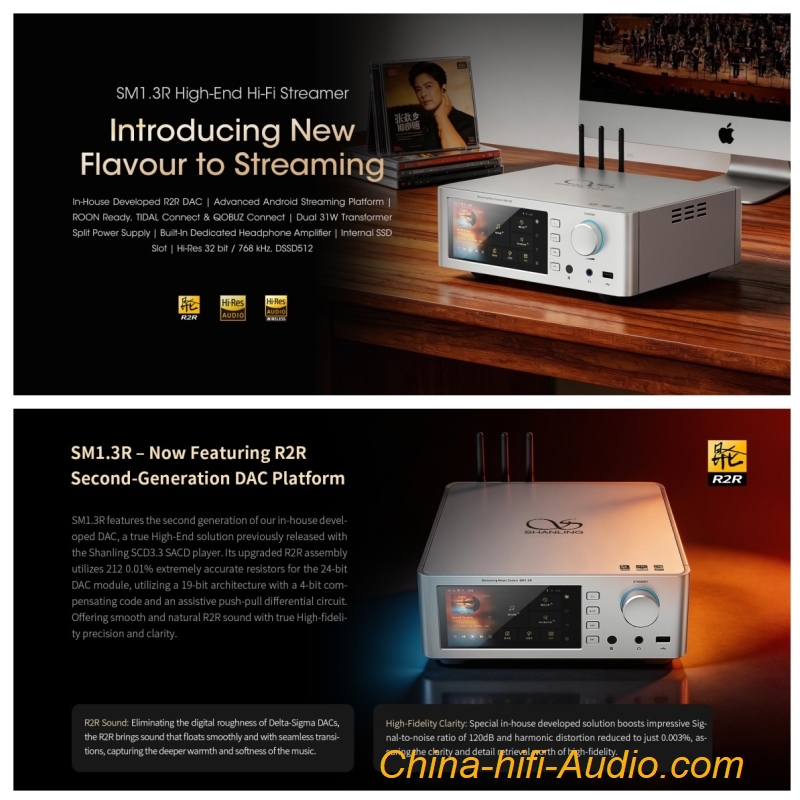

DAC System: R2R Assembly
Storage: 64 GB Internal Memory + SSD M.2 Slot
External Drive Capacity: up to 2TB
Power Supply: 220 or 110V Region Locked

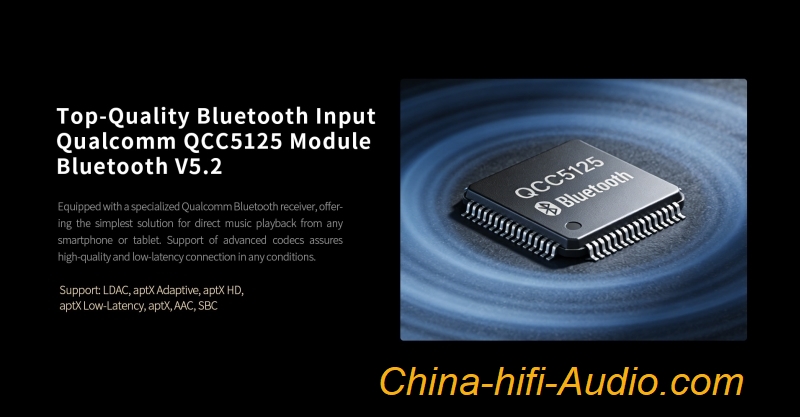

Bluetooth Version:5.2
Bluetooth Codecs: LDAC, aptX HD, aptX Adaptive,aptX LL,aptX, AAC, SBC

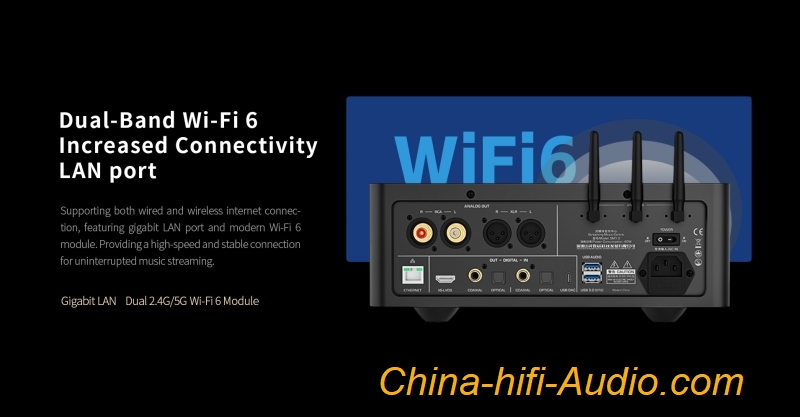

Dual-Band WiFi 6: 2.4G / 5G
Supported Audio Format: DSD, DXD,APE,FLAC,WAV,AIFF/AIF, DTS,MP3, WMA, AAC, OGG, ALAC, MP2,M4A,AC3,OPUS,TAK, etc.Supports CUE.
Hi-Res support:768kHz / 32bit DSD512
Technical Parameters
RCA Output:
Output Level: 2.2V
Frequency Response: 20Hz-40kHz(-0.5dB)
THD+N:0.003%
Dynamic Range:118dB
Channel Separation: 116dB
Signal-to-Noise Ratio: 118dB
XLROutput:
Output Level:4.4V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.003%
Dynamic Range: 120dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 120dB
Headphone Output:
Output Power:
Low Gain: 17mW@32Ω
Medium Gain: 159mW@32QHigh
High Gain: 900mW@32QHigh
High Gain: 130mW@300Q
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.003%@32Ω
Dynamic Range: 116dB@32Ω
Channel Separation: 70dB@32ΩSignal-to-Noise
Ratio: 116dB@32Ω
Noise:111dB
Output lmpedance:4.7Ω

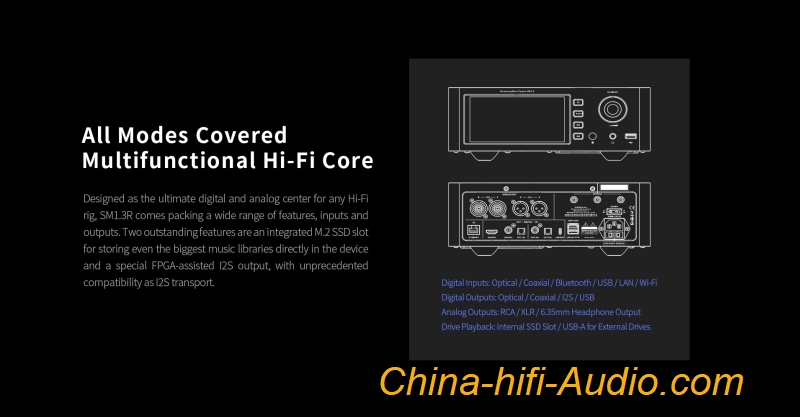

Digital Ports Specifications
Coaxial Input: PCM192kHz / 24bit
Optical lnput: PCM192kHz/ 24bit
USB Input: PCM768kHz / 32bit, DSD512
Coaxial Output: PCM192kHz/24bit
Optical Output: PCM192kHz/24bit
USB Output: PCM768kHz / 32bit, DSD512
I²s Output PCM768kHz, DSD512
