Boyuurange MT-88 MKII KT88*4 tube amp Push-pull Hi-Fi audio amplifier Reisong

Product Price: Starting at: $519.03 USD

  • Product Model: Model: MUIA9831303
  • Product Weight: Shipping Weight: 24kg
  • Product Quantity: 1 Units in Stock

Please Choose:


  • Add to Cart:
  • Max: 10

Current Reviews: 2

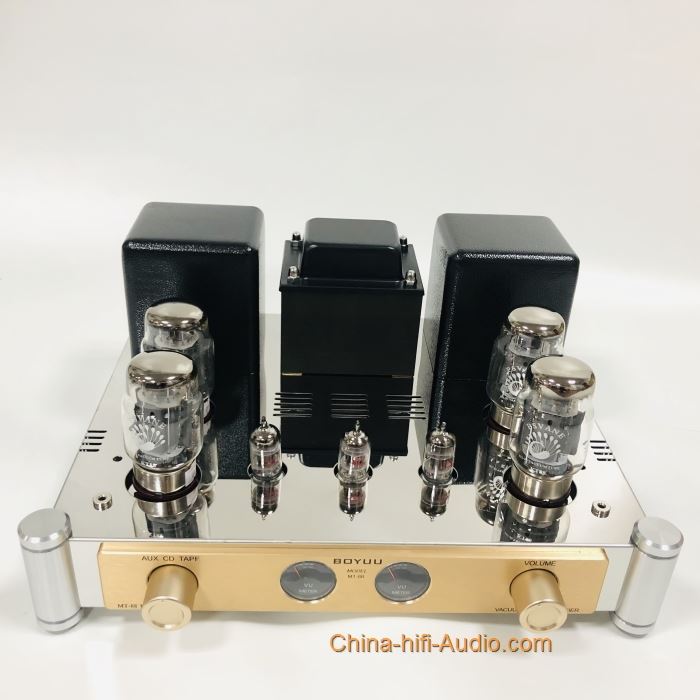

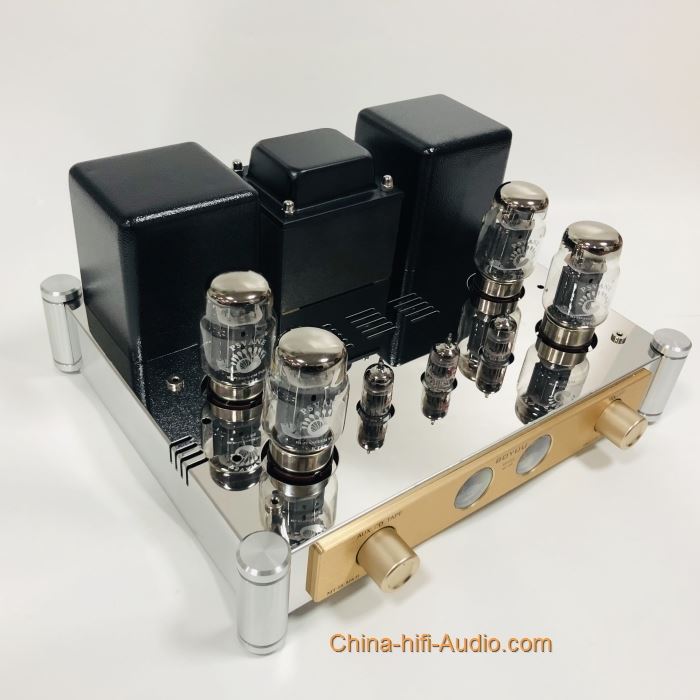

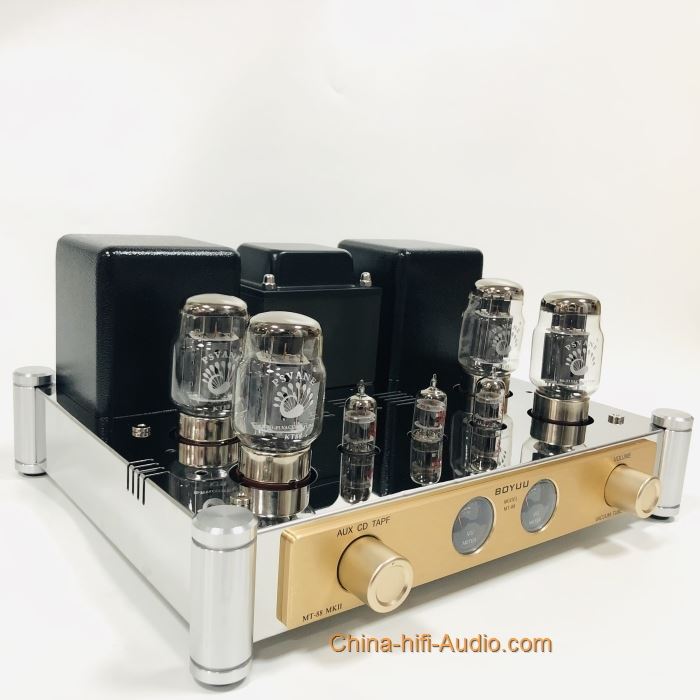

Boyuurange MT-88 MKII KT88*4 tube amp Push-pull Hi-Fi audio Integrated amplifier Brand new

Hand welding point to point, Powerful and nice sound

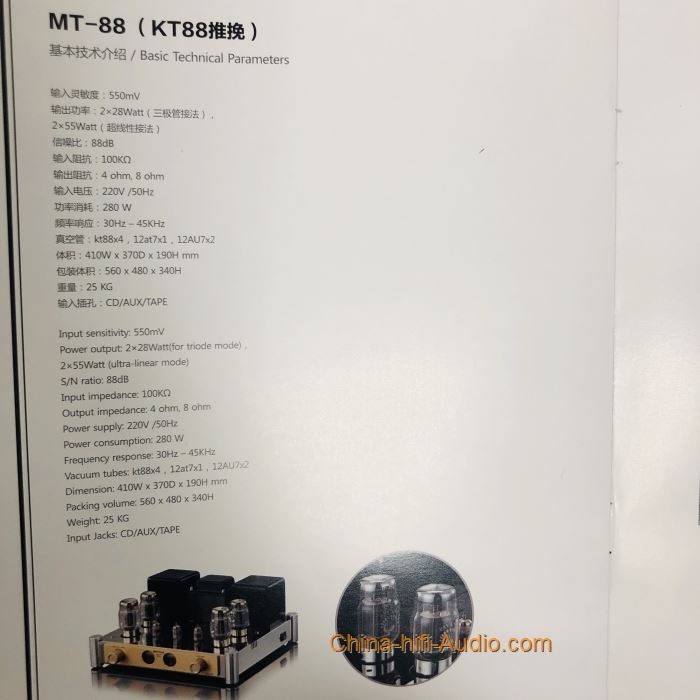

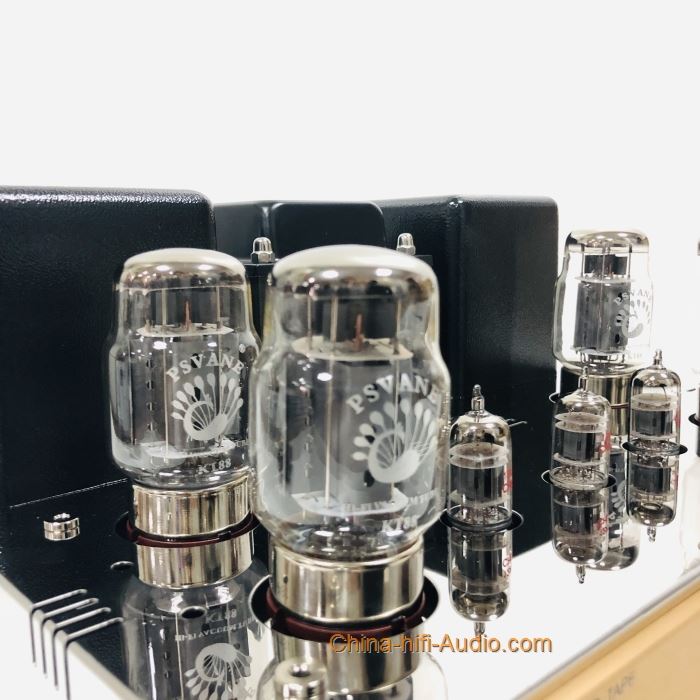

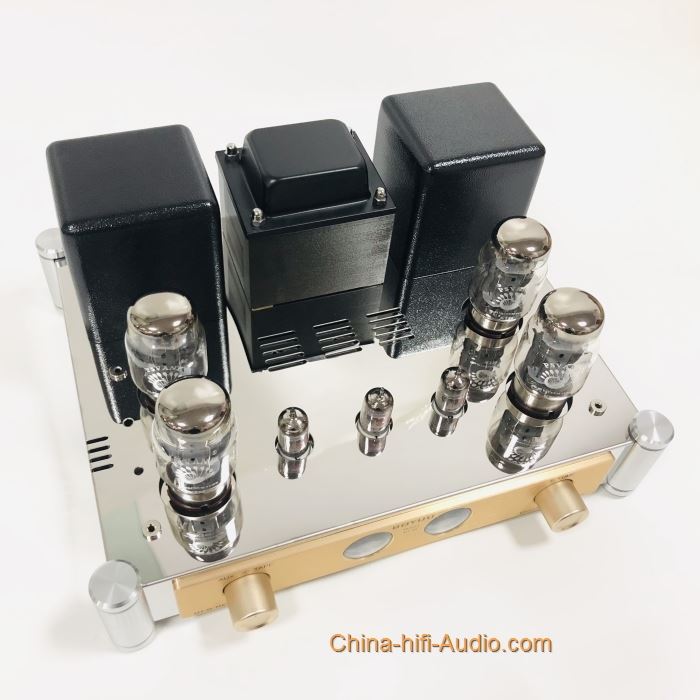

Vacuum tube:
12AT7*1 (voltage amplification)
12AU7*2 (current drive)
KT88*4 (power output)
Output Power:
18W × 2 (triode)
38W × 2 (ultra-linear)
Frequency response: 25Hz - 45KHz
Input Impedance: 4 ohms, 8 ohms
SNR: 89dB
Input Sensitivity: 800mV
Total harmonic distortion: ≤ 1% (1kHz)
Input Sensitivity: 800mV
Input Impedance: 100KΩ
Volume: Width 410 × 370 × depth high 190MM
Packing Volume: width 560 × 480 × depth high 340MM
Weight: about 20.5 Kg
Package weight: about 24 Kg
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.

Handmade scaffolding welding, there is concise and easy process, traces short, simple upgrade change material.
Imports of stainless steel chassis. There look gorgeous, durable, can not afford not peeling paint and so on.
Three tubes with ultra-linear transfer function, the perfect balance of push-pull machine play of strength and beauty.
Achieve internationally accepted proof output transformer potting processing, you can not damp decade, high stability and durability.
Unique aluminum pillars corners resonant structure principle, with the traditional bottom machine foot structure will have excellent stability and reliability.
Voltage amplification 12AT7, 12AU7 current drive, KT88 push-pull power output.
500W power supply transformer adequate supply to meet large dynamic energy output, 114-80 import core transformer.
80W output transformer design, fine tightly around 5 clip 3, hierarchical segmentation, primary, secondary series parallel wiring, hiding foot high output transformer inductance and low leakage inductance characteristics, core import 0.35 for high silicon, stacked thick 96-50 core manufacturing.
Volume potentiometer, we made direct use of pure Japanese ALPS graphite film series, with left and right balance of high, warm sound, good dynamic characteristics.

This product was added to our catalog on Friday 16 January, 2015.
