Raphaelite Mas300 Hi-end Phono stage stereo turntable tube amp MM/MC output

Product Price: $2,000.00 USD

Always Free Shipping
  • Product Model: Model: MUIA9832097
  • Product Weight: Shipping Weight: 17kg
  • Product Quantity: 3 Units in Stock

Please Choose:

  • Add to Cart:
  • Max: 5


Raphaelite Mas300 Hi-end Phono stage stereo turntable tube amp MM/MC and RCA/XLR output
100% Brand New

The price is for An Phono amplifier


All items guaranteed 100% BRAND NEW in the original edition Box.

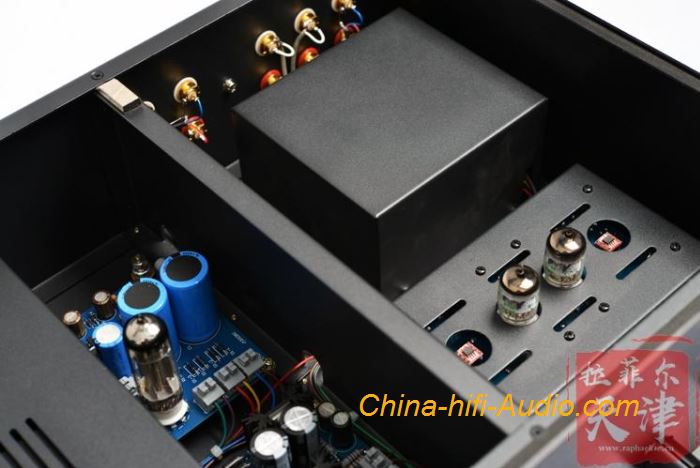

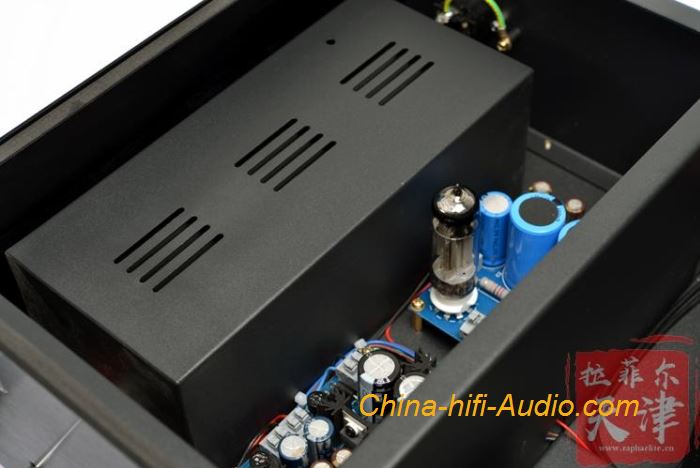

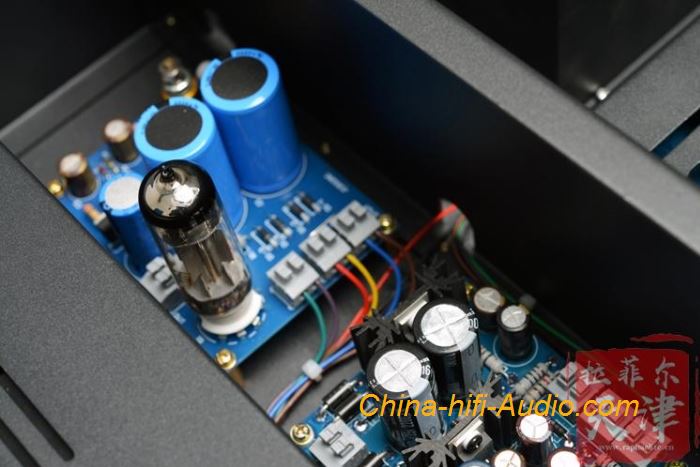

The Mas300 is a high-end phono amplifier in the Profession series launched by Rafael. The amplifier uses a self-designed tube voltage amplification, combined circuit structure of the transistor output, and a set of step-up transformers with a wide-band sloping molybdenum core as standard, which improves the input gain of the group. At the same time, a set of step-up transformer interface positions are reserved for matching, which can meet the needs of different users. The whole machine uses multiple sets of independent regulated linear power supply to supply power to the whole circuit, which improves the stability of the circuit. The fine-grained, multi-shielded metal spray case ensures high gain and high signal-to-noise ratio output of the amplifier. The overall aluminum brushed oxide panel embodies the overall texture of the amplifier.

Input voltage: AC 220V/230V
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.

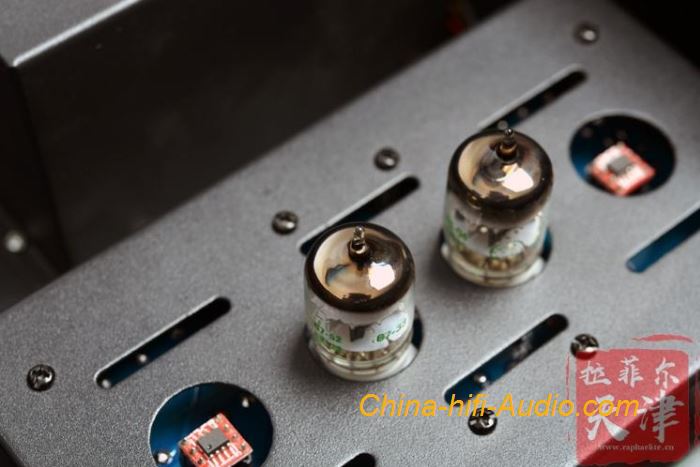

Tube: Power section: 1*6C19
Enlarged part 2*GE5670 (can replace WE396 /2C51/6N3)

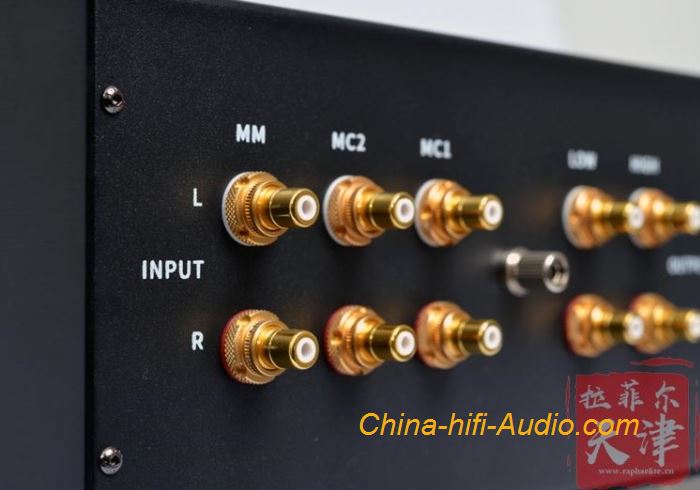

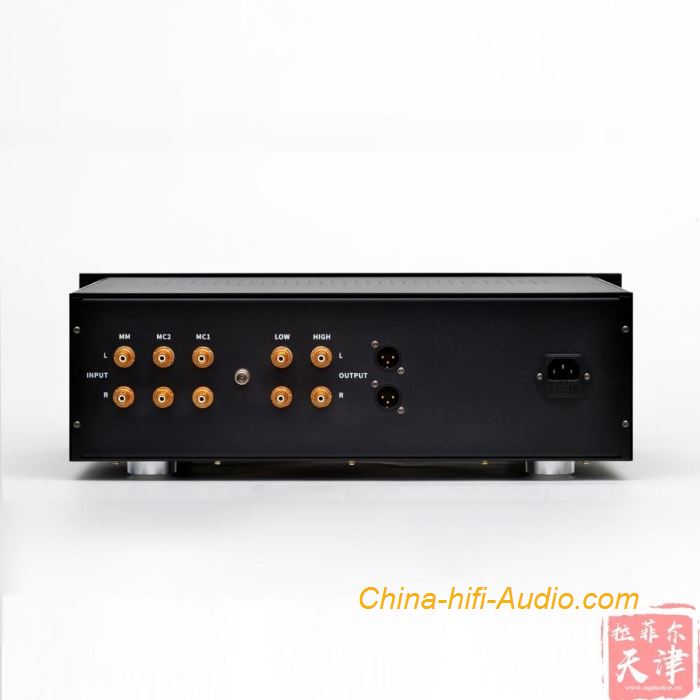

Input channel: 3ARCA stereo
Output channel: 2* RCA stereo 1*XLR stereo
Input impedance: MM 47KΩ MC 4-100Ω
Input capacitance: MM/MC=100PF/200P/OFF
Output gain: adjustable MM (dynamic) = 40 dB MC (moving coil) = 60 dB
RIAA curve accuracy: ±0.8 dB
Distortion: < 1%@1 KHz
Signal to noise ratio: MM<80dB MC<75dB
Output impedance: LOW (low impedance) = 100Ω HIGH (high impedance) = 47KΩ
XLR (balanced output) = 100Ω + 100Ω (2 feet for the hot end and 3 feet for the cold end)
Insulation resistance: 200MΩ (DC2000V.lMin)
Power consumption: 50W
Volume: 480*355*135
Net weight: 15KG
