Raphaelite EP65 audiophile vacuum tube amplifier 6550 HiFi audio amp with remote

Product Price: $1,543.75 USD

Always Free Shipping
  • Product Model: Model: MUIA9832090
  • Product Weight: Shipping Weight: 27kg
  • Product Quantity: 3 Units in Stock

Please Choose:

  • Add to Cart:
  • Max: 5

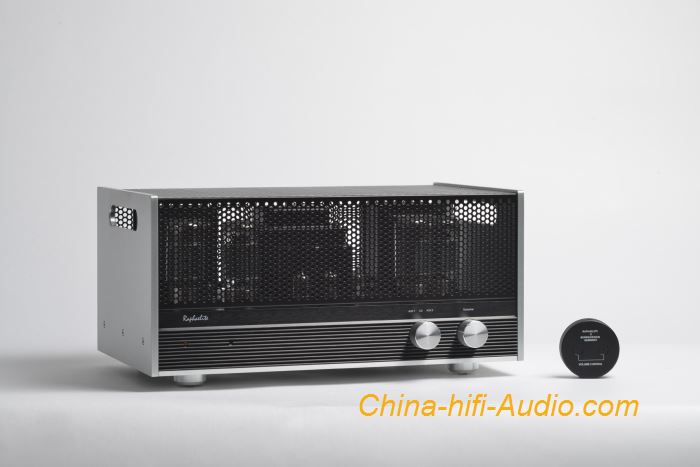

Raphaelite EP65 audiophile 6550x4 vacuum tube amplifier HiFi audio push-pull integrated amp with remote and protective cover.
100% Brand New


All items guaranteed 100% BRAND NEW in the original edition Box.


Fully imported electronic tube
80W fully coupled output transformer

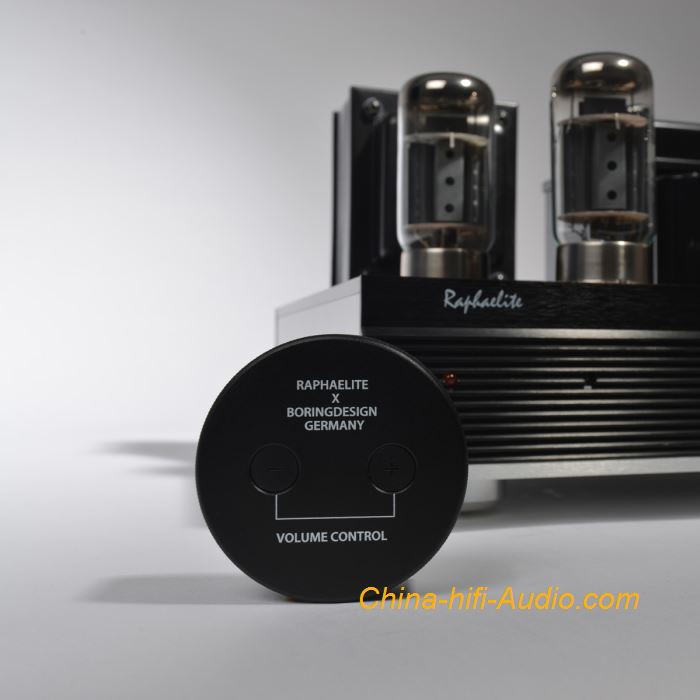

All-aluminum chassis with all-aluminum remote control
High power (50W) output, low distortion (less than 1% distortion)
The EP65 is the 6550 push-pull integrated amplifier in the Raphaelite series. The EP65 uses an all-aluminum body and is simple in appearance. Using 4 Russian svetlana 6550 power tubes for standard-push push-pull amplification, each channel can output 8 ohms and 50W rated power with less than 1% distortion. These parameters indicate that EP65 can drive sensitive speaker units with good sensitivity.

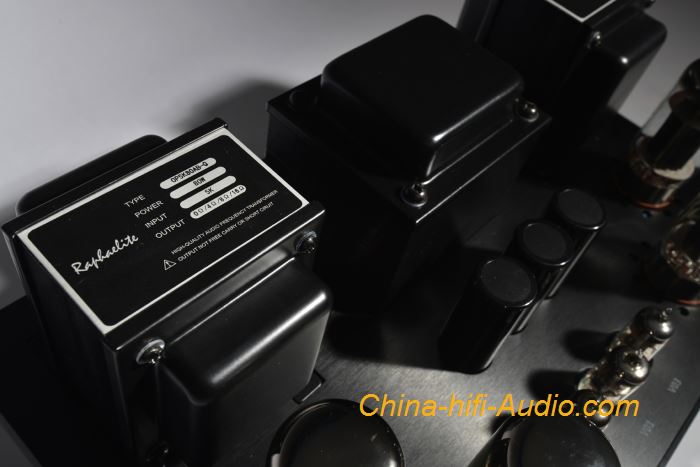

The EP65 circuit is designed to be simple, stable and reliable. Using a transistor rectifier circuit, a simple and easy-to-use long tail inverter circuit consisting of a Czech E88CC and two US GE 12AT7s easily drives four Russian 6500 power tubes. The core output section uses the Raphael 6550/KT88 dedicated 80W fully coupled push-pull output transformer to ensure that every detail in the music is not missed.
The sound of the EP65 is smooth and smooth, the sound field is wide, and the background is quiet. This is a push-pull integrated amplifier with less sound and less sound. It is a perfect match for classical music and British speakers.

Model: EP65
Tubes: E88CC×1 12AT7×2 Svetlana 6550×4
Input Sensitivity: 300mV
Power Output: 2×50W (RMS THD<1%)
S/N Ratio: 80dB
Input Impedance: 100KΩ
Output Impedance: 4Ω、8Ω
AC Input: AC 220V/230V
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.
Power Consumption: 220W
Frequency Response: 7Hz – 30KHz -3dB
Dimension: 454×280×225(W-D-H)
Net Weight: 25KG

This product was added to our catalog on Saturday 21 July, 2018.
