Reisong A12 12AX7(ECC83) EL34 Tube Integrated Amplifier single-ended Class A Boyuurange
Open Box (returned goods checked like new)
The free shipping price is only for shipping to United States.
Declaration
ONE-YEAR WARRANTY !!!
Product features:

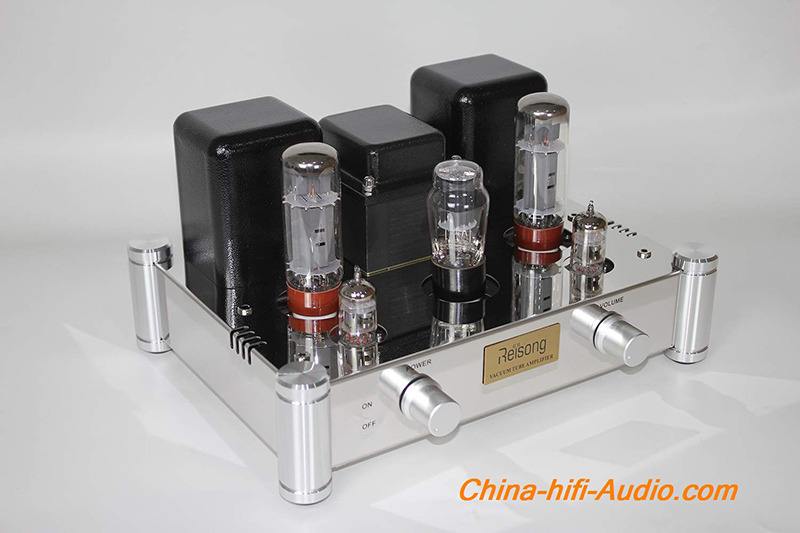

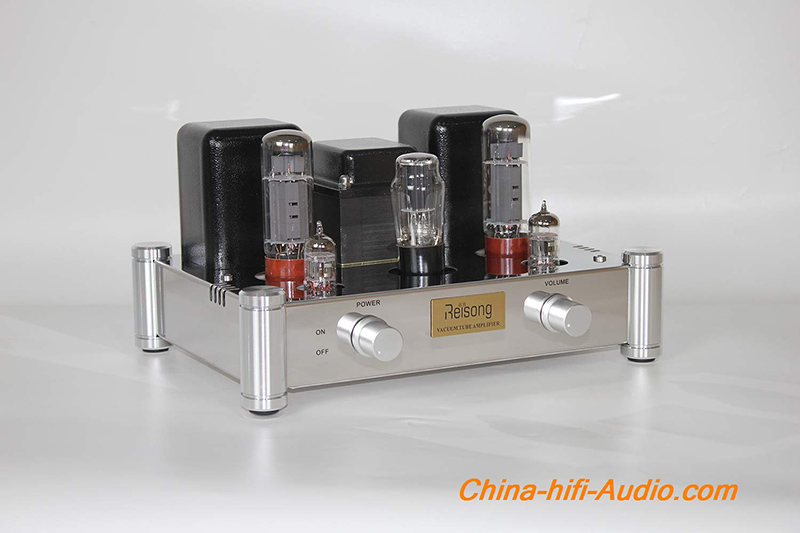

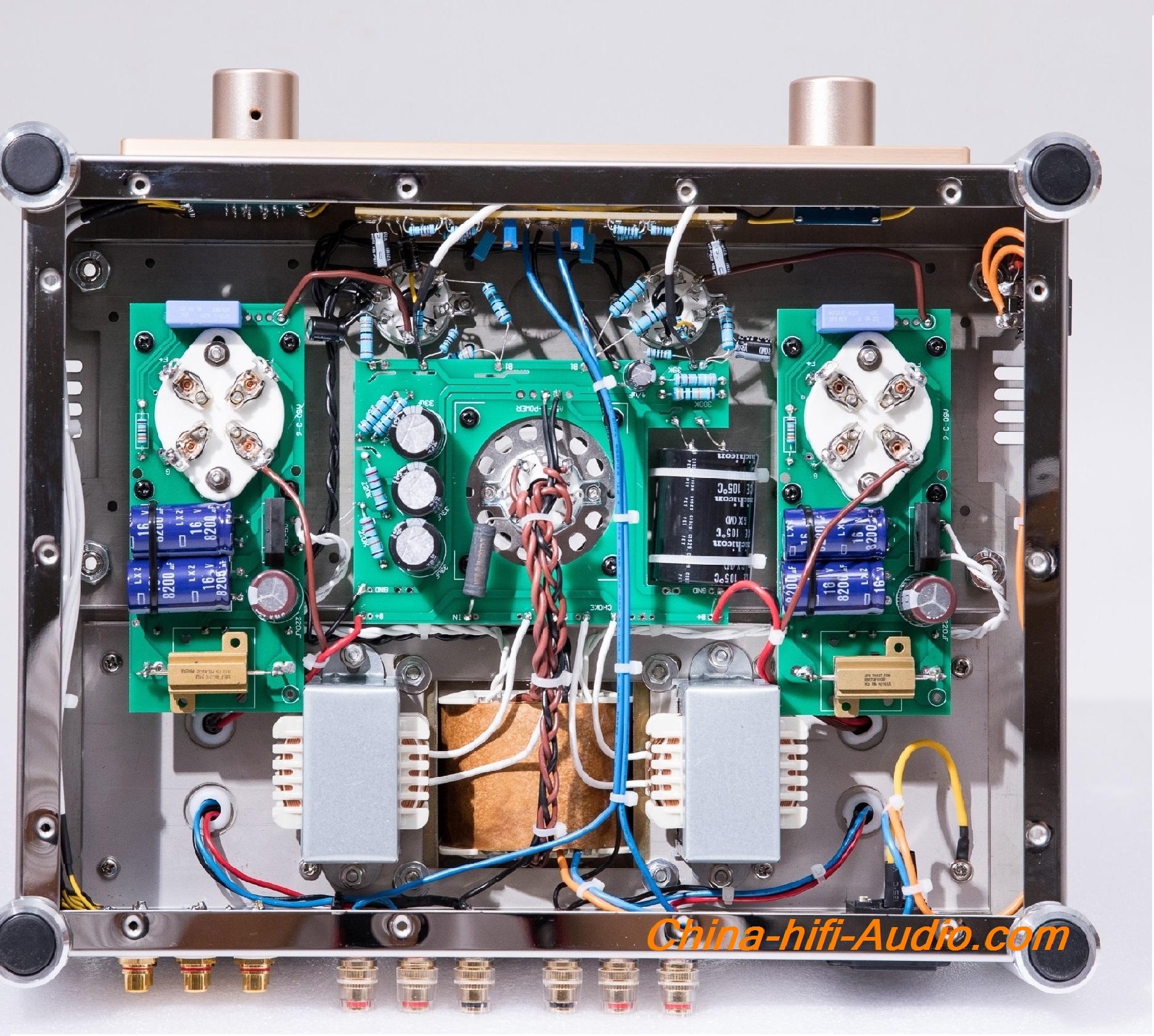

Reisong A12 Amp is an upgraded version of A10, could use more replacement models of tubes without convertor. Come with Tube Cage. Point to Point hand welding, preferred audiophiles, output transformer switch to the 76x40 higher end output transformer. Please pay attention before buying!! Nice sound but LOWER POWER.If you like high power or your speakers do not match, it may cause sound distortion.
Specification:
Output Power: 6W * 2 (Ultra-linear).
Frequency response: 20Hz - 28KHz.
Output Impedance: 4,8Ω.
Total harmonic distortion: ≤ 1% (1kHz).
SNR: 88dB.
Voltage amplification: 12AX7(ECC83) × 2.
Power output tube: EL34 × 2.
Rectifier tube: 5Z4PJ × 1.
Input sensitivity: 750MV.
Input impedance: 100KΩ (2 groups input)
Dimensions (W × D × H): 310 × 268 × 165mm.
Net weight: 10.5KG
Gross weight: 13KG
Input Power Voltage: AC100V to 240V 60Hz/50Hz (110V ,120V,230V,240V,version will take 3-14 work days to order). 220v is in stock.
Power consumption: 78 watts
Features:
Power Transformers: new imported 0.35, stack thickness 50MM (96-50).
Output transformer core: new imported 0.35 (76*40upgrade version).
Chassis: imported mirror stainless steel chassis.
Corners aluminum column: high-grade aluminum CNC machining, diamond knife speed car system.
Output Block: High-grade export base, with a transparent cover. 12AX7 pre-voltage amplification.
EL34 as power output.
Potting type output transformer, to ensure the stability and reliability of the output transformer, especially in the southern humid places, have a more reliable performance. Output transformer with a new imported 0.35 core manufacturing, high-purity copper wire package enameled, layered segmentation, string and connection method, divided into three clips two around the system, Output transformer transformer housing with high-grade stretch hood. High temperature paint surface treatment, bright pattern processes. Nissan ALPS potentiometer. Imported 0.35 thick core manufacturing power transformers, to ensure ade
Product information
Package Dimensions:16.54 x 14.17 x 11.02 inches
Manufacturer:BOYUURANGE
Item model number:BOYUURANGE Reisong A12
