MUZISHARE X7CD tube 12AU7 HDCD CD player & XMOS asynchronously USB DAC 192KHz

Product Price:

  • Product Model: Model: MUIA9831431
  • Product Weight: Shipping Weight: 16kg
  • Product Quantity: 0 Units in Stock

Please Choose:

Sold Out


MUZISHARE X7CD HiFi tube 12AU7 HDCD CD player & XMOS asynchronously USB DAC 192KHz
100% Brand new

MUZISHARE Audio X7CD is a Tube CD palyer with USB DAC.

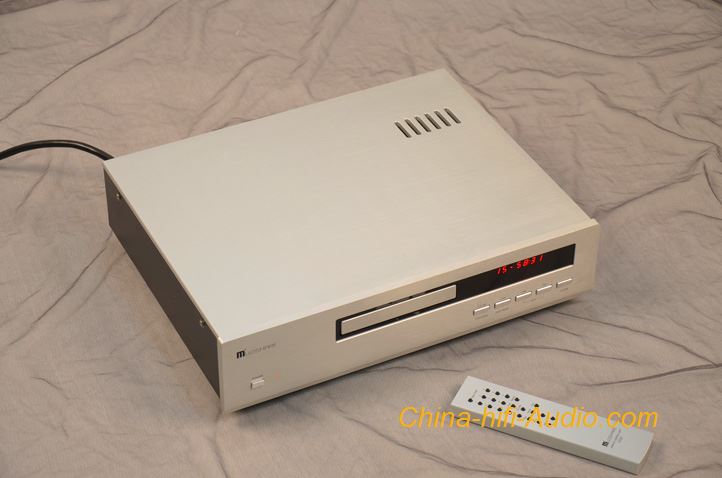

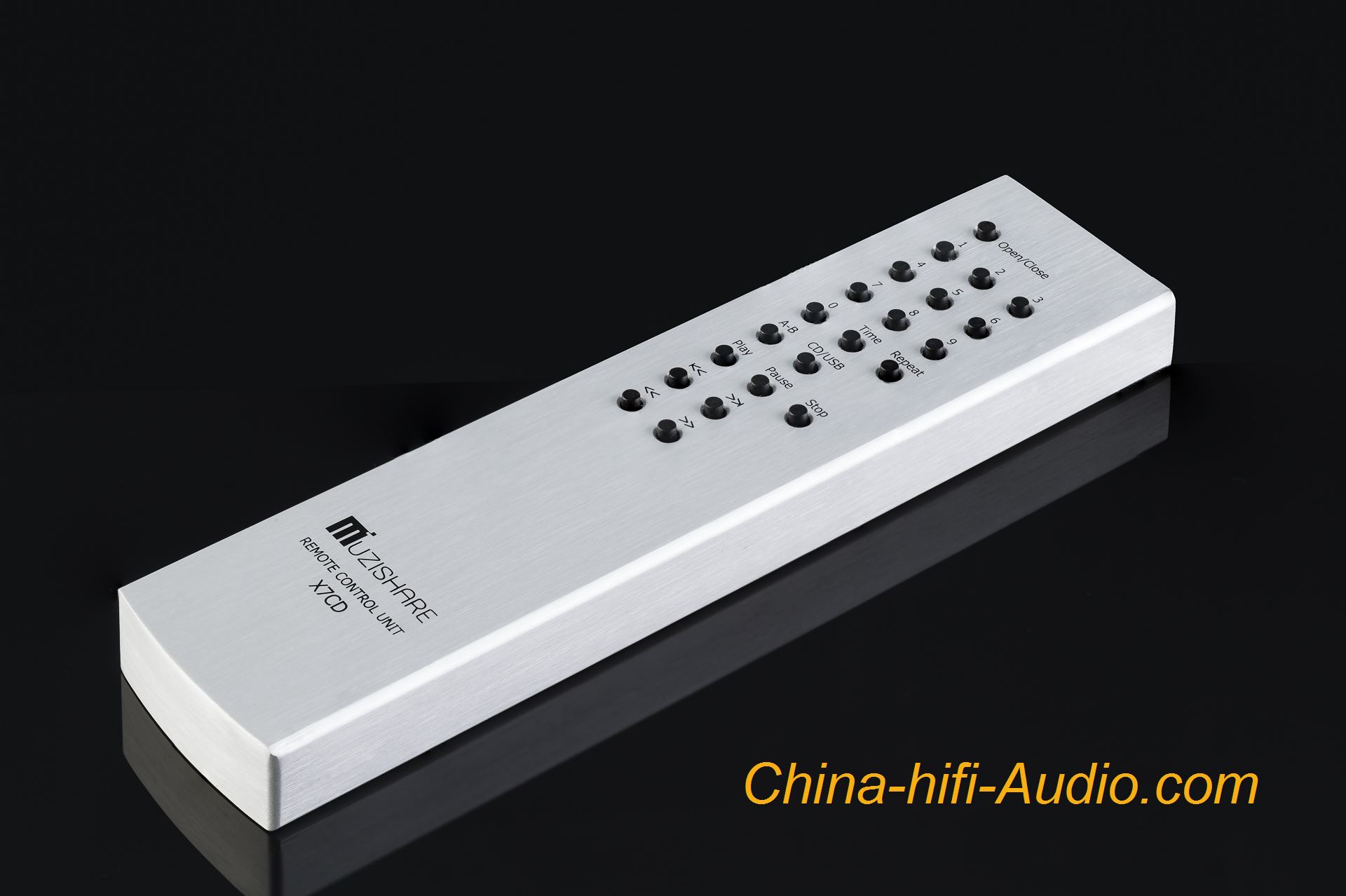

It come with a remote control.


MUZISHARE Audio X7CD tube CD player with USB DAC

CD playback function will be stopped when using the USB playback function effectively protect the CD movement to extend the service life

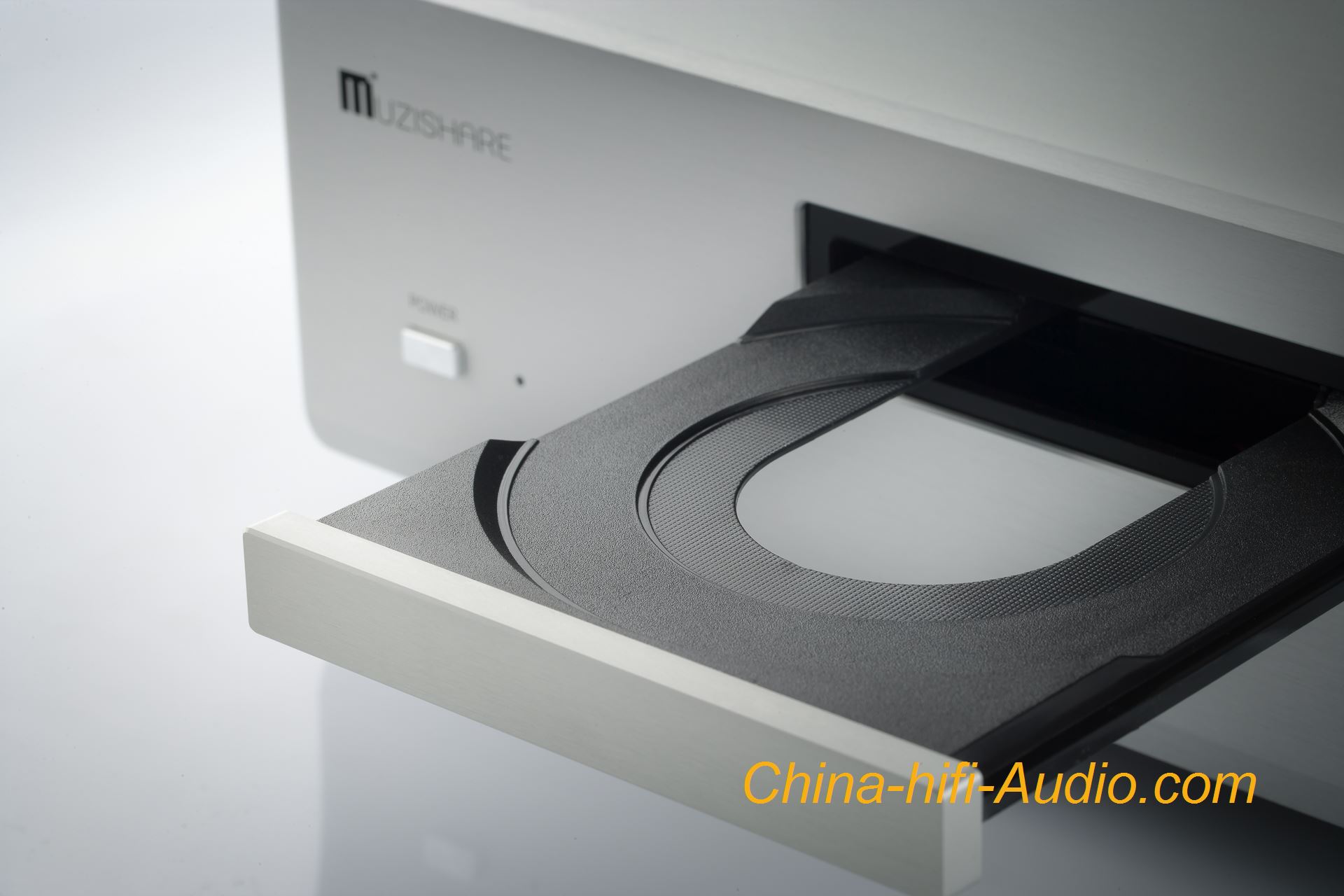

1, with high fidelity CD player --- Sanyo movement.

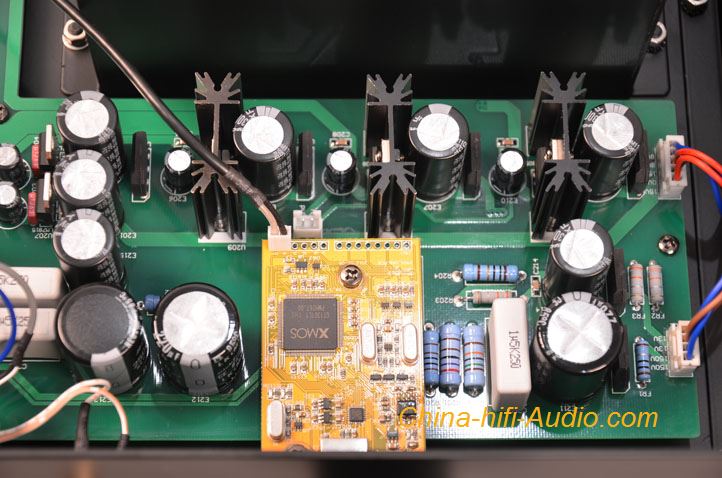

2, with asynchronous USB playback (the machine can be used as a computer USB decoder) --- USB using XMOS asynchronously USB 192KHz Sampling rate: 32bit 44.1KHz, 48KHz, 88.2KHz, 176.4Khz, 192KHz.

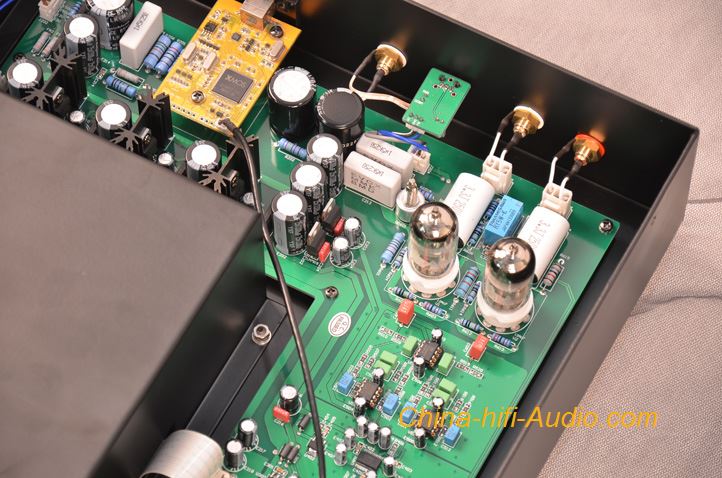

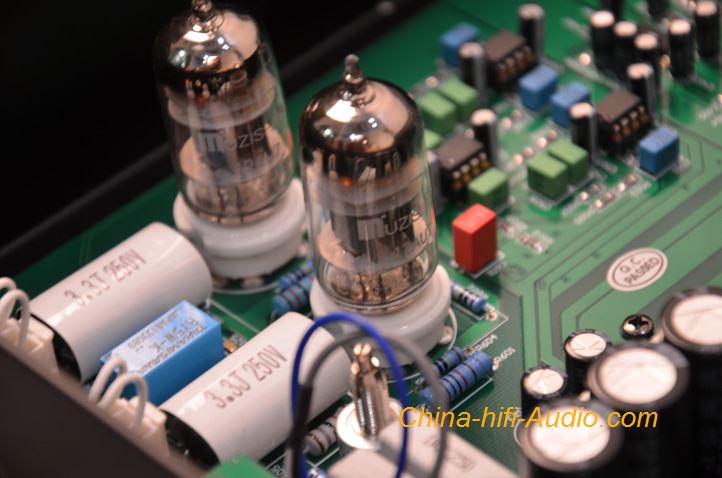

3, I / V conversion using the United States BB senior OPA2134, Low-pass circuit using advanced op amp OPA2604, the output uses two tubes 12AU7.

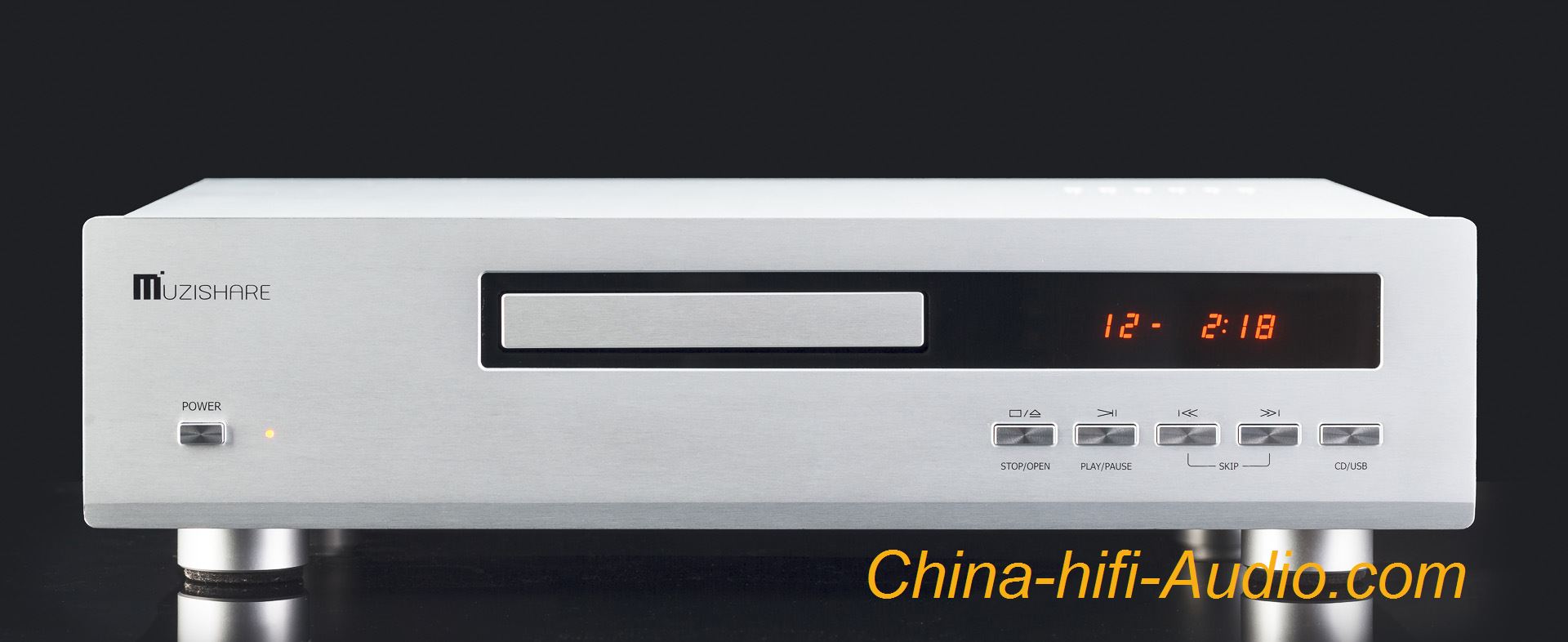

4, CD and USB playback share PCM1795 DAC chip, CD / USB button on the panel or remote control can switch playback.

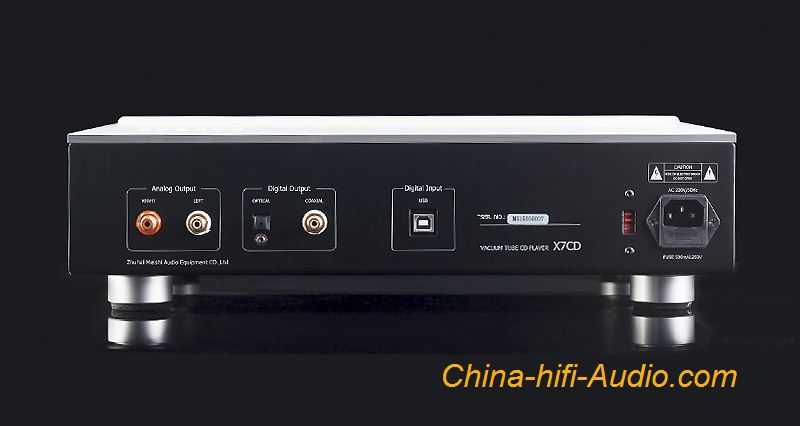

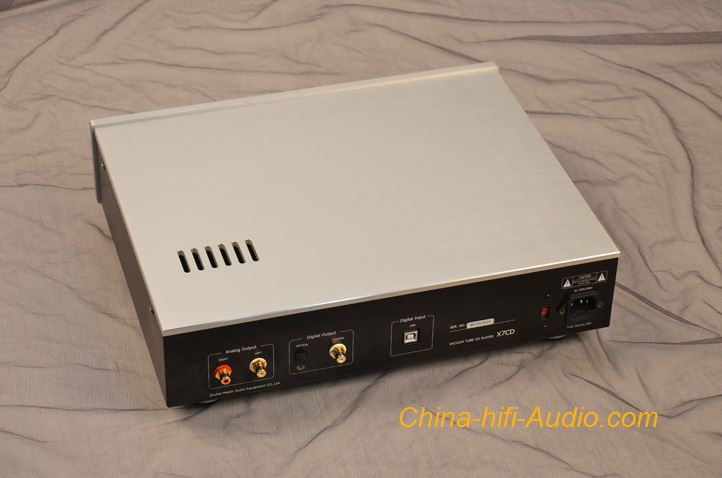

5, the player with analog output RCA output.CD playback with optical fiber, coaxial RCA digital output.

Frequency response: 20Hz - 20KHz (+3dB)
Signal to noise ratio: 110dB
Dynamic range: 120dB
Reading time: 5 seconds
Total harmonic distortion: 0.0025%
Output level: 3.2Vp-p
Vacuum tube: 12AU7 x 2
Power consumption: 18W (for reference only)
Dimension (W x D x H): (410 x 325 x 110) mm
Net Weight: 14kg
Gross weight: 16kg
Power supply: 100V - 240V 60Hz / 50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.
Digital coaxial output Specification: S / PDIF standard
Working conditions: temperature: 5 ℃ ~ 35 ℃, humidity: 9% ~ 90% (no condensation)

This product was added to our catalog on Saturday 06 January, 2018.
