MUZISHARE X10 Class A sinle-ended 274B KT150 integrated Tube amp&Power&Phono

Product Price: $2,376.98 USD

  • Product Model: Model: MUIA9831426
  • Product Weight: Shipping Weight: 36kg
  • Product Quantity: 0 Units in Stock

Please Choose:

Come with Tube cage cover





Remote Control



Sold Out


paypal



MUZISHARE X10 Class A sinle-ended 274B KT150 Tube integrated amplifier and Power amplifier, phono amp
100% Brand new


MUZISHARE X10 is an integrated Amplifier.
This is a Power Amplifier too (there is a group pre-amp input).
This is a Headphone amplifier too.
This is a amplifier for Phono player too, direct link your phono player to this amplifier to output to speakers.

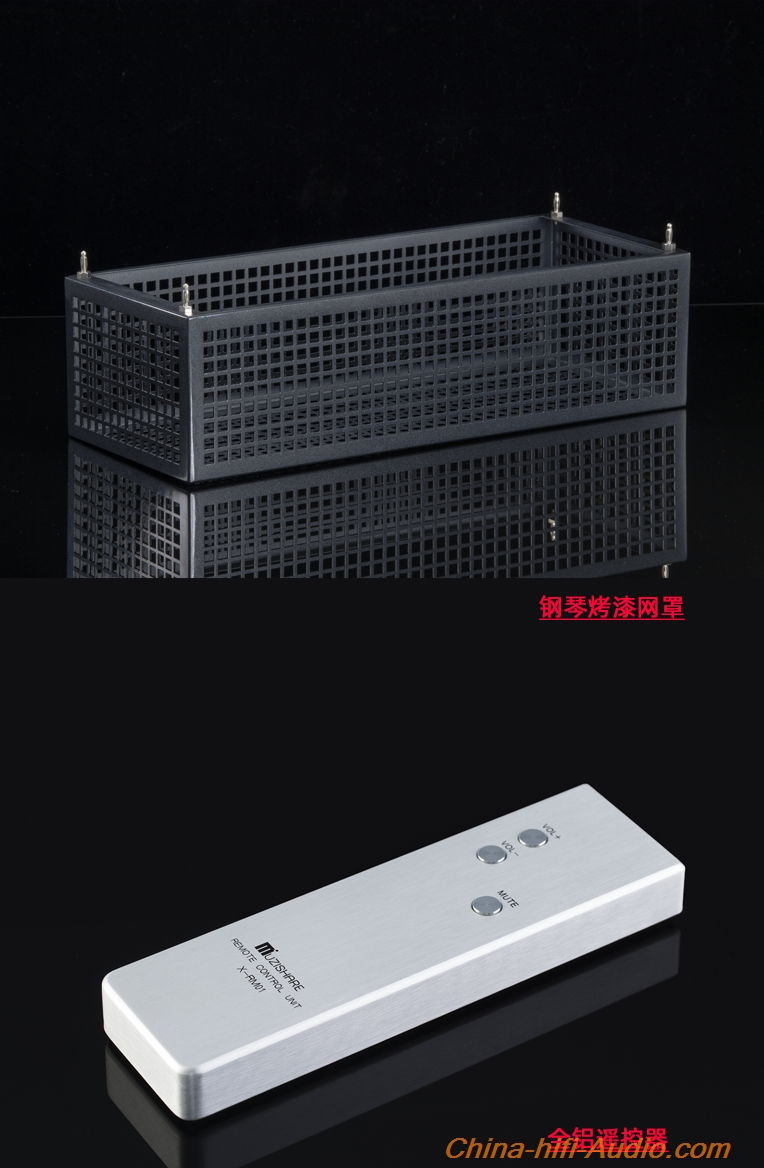

It come with a remote control and a tube cage cover.













Declaration


MUZISHARE X0 274B KT150 Class A Single-ended tube amplifier


Features:
1, Pure hand-made, machine scaffolding with welding
2, Using two high-quality wide-frequency high-quality Japanese EI output transformer.
3, Using a high-power Z11 core toroidal power transformer dedicated designed for the machine
4, The high-voltage part adopts 2 specially customized replicas of Xidian 274B for full rectification.
5, The front stage uses two Czech ECC83 and 6SN7EH vacuum tubes each, and the rear stage uses two KT150 vacuum tubes for class A power amplification
The sound is fine and smooth, transparent, positioning good, and good at control.
6. Peripheral power tube current adjustment button and current display and dynamic output level UV meter
7. The choice of Japanese ALPS motor potentiometer
8. Mute delay function when turn on the amp(about 30 seconds)
9. Easy to install plug-in vacuum tube cage cover
10.Select working mode of pure power stage and combined machine
11.With balanced input and PHONO phono amplifier function


Specifications:
Rated output power: 25W + 25W (RMS)
Harmonic distortion: 1% (1KHZ)
Frequency response: 10HZ ~ 50KHZ (-1.5DB)
Input Sensitivity: 150mv (0db) 180mV (-3db) 1.5V (pre in)
Input impedance: 100KΩ
Signal to noise ratio: 92db
Output impedance: 4Ω 8Ω 16Ω
Left and right output balance: <1db
Power consumption: 220W

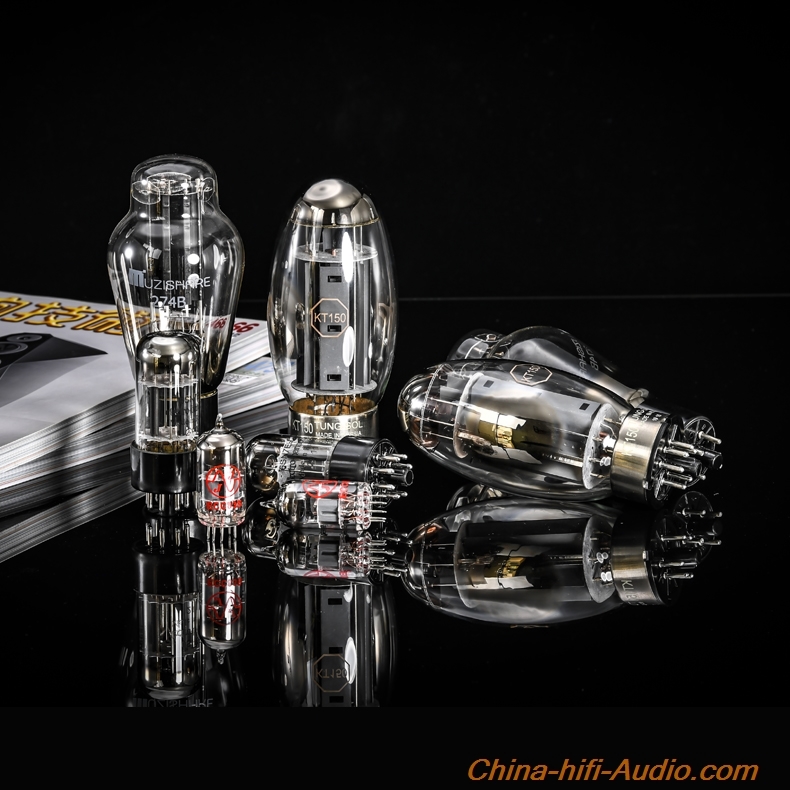

Vacuum tube: ECC83 × 2,6SN7 × 2, KT150 × 2, 274B * 2
Size (W × D × H): (430 × 400 × 230) mm
Net weight: 39kg
Gross weight: 41kg

Power supply: 100V - 240V 60Hz / 50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.
Working conditions: Temperature: 0 ℃ ~ 40 ℃ Humidity: 20% ~ 80%
Storage conditions: Temperature: -20 ℃ ~ 70 ℃ Humidity: 20% ~ 90%
