MHZS CD88KE Top Loading Tube CD HDCD Player full balanced XLR SL

Product Price: $939.29 USD

  • Product Model: Model: MUIA9831278
  • Product Weight: Shipping Weight: 17kg
  • Product Quantity: 0 Units in Stock

Please Choose:

Sold Out

Current Reviews: 1

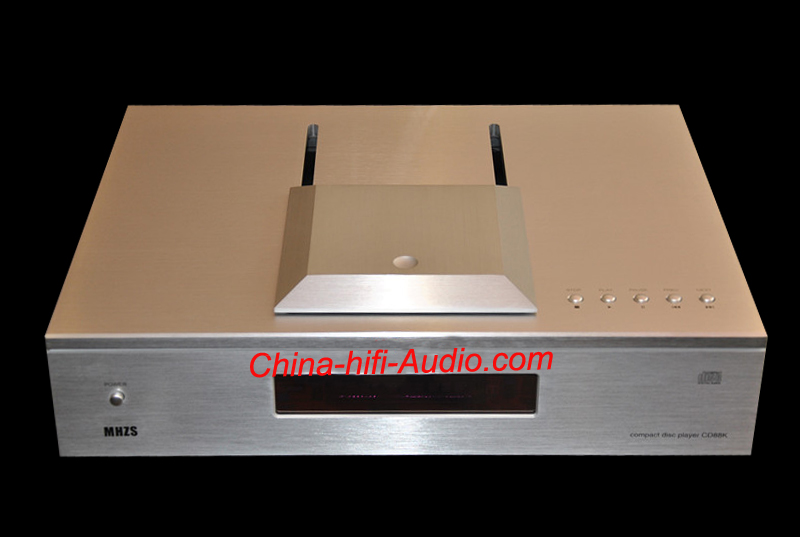

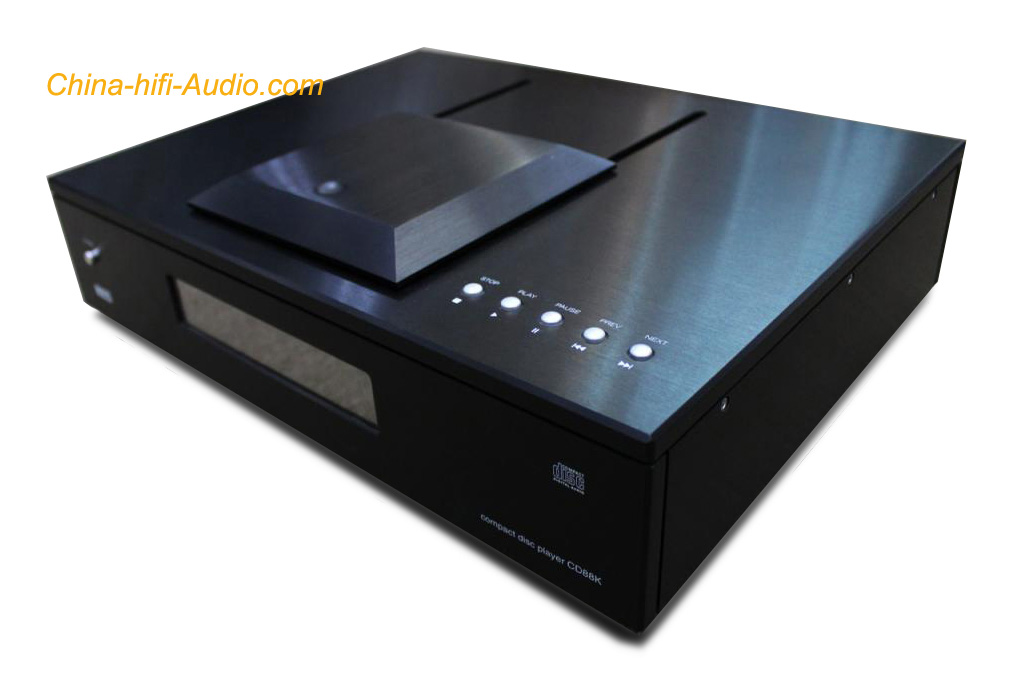

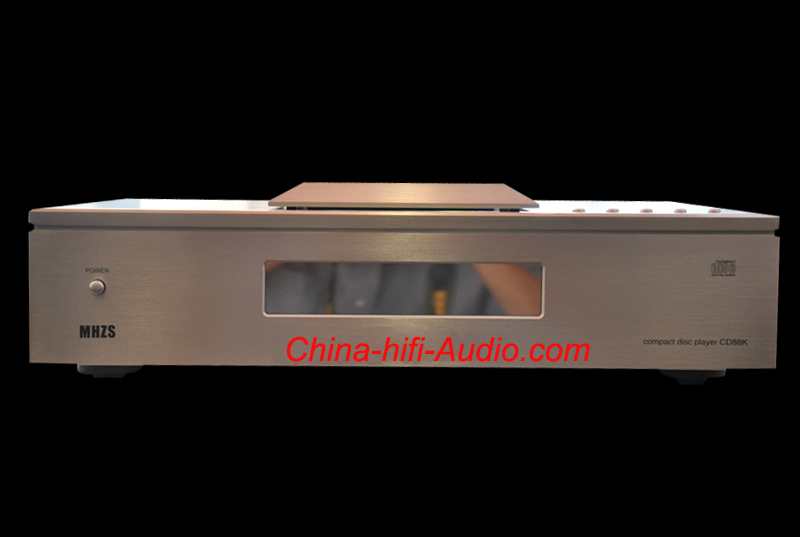

MHZS CD88K Top Loading Tube CD HDCD Player full balanced XLR HiFi Audio

Silve or Black front panelI version for choice
Come with remote control
Brand New


100% New In Box MODIFIED VERSION Tube Fidelity Output Optimized For 44.1KHz To 88.2KHz and 176.4KHz High Quality On Amplifier
This product has 12 months warranty.

The significant advantage of the tube amplifier is: unparalleled sound effects, soft, beautiful, natural. It sounds gentle , sweet, as charming as rose.It is particularly suited to play idyllic ease and elegance of classical music. They are good choice for people who hanker for the “Original natural Sound ”

1. Sony 213Q laser head is used for excellent stability and strong disc loading capacity.
2. Serve circuit is provided with Phillip SAA7824 chip.
3. CD4398 D/A switch box is used.
4. OPA2604 is used as high quality filter circuit. To thoroughly remove digital signal and resume the original music signal.
5. High class vacuum tube (2 x 12AX7) analogue amplifier circuit is used for excellent reproduction. Vacuum tube rectifier (1 x 6Z4), vacuum tube voltage regulator (1 x WY-2) for excellent reproduction.
6. Top level MIT capacitor is used as vacuum tub coupling and.
7. Eight groups of independent voltage regulators are used for power supply, with litter interference, strong driving power and rich music details.
8. With coaxial and optical fiber digital signal output of one group respectively , RCA and balance audio signal output of one group respectively.
9. Top level WIMA capacitor is used as the LC filter circuit of power supply , to purify power supply and make the background of music clearer.
10. The vacuum tube is preheated and stabilized for twenty seconds before enticing the operation mode after the player is turned on.
11. It is provide with steel casing with a thickness of 1.5mm and metal host for a powerful anti-vibration capacity and a purer tone.
12. It’s excellent up frequency treatment brings the 44.1 KHz sampling frequency of CD signal up to 88.2KHz or 176.4KHz, to make the reproduced audio signal closer to original analogue signal , to thoroughly removc digital sound and produce a tone effect comparative to LP analogue player.

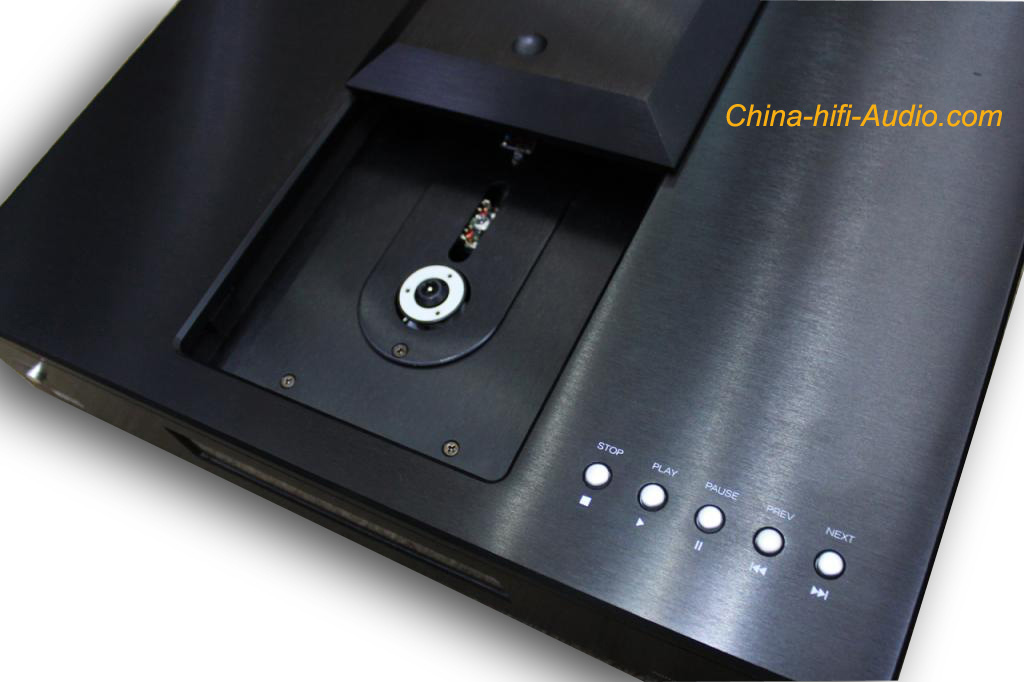

Center tray design best design with good balance of weighting
SONY 213Q Laser Pick Up, PHILIPS SAA78241 Servo System
Hi-End Power Supply,Heavy Duty Transformer
Special designed: Burr - Brown Super 24Bit 192KHz D/A
(Optimized For : 44.1kHz , 88.2kHz and 176.4.kHz )
Up frequency: 2 times, 4 times 2 levels
Channel separation: Over 98dB(1KHz)

Compatible Disc : CD, CD-R, CD-RW, HDCD
Tube Output : CLASS A tubes 12AX7x2 , 6Z4x1, WY2x1

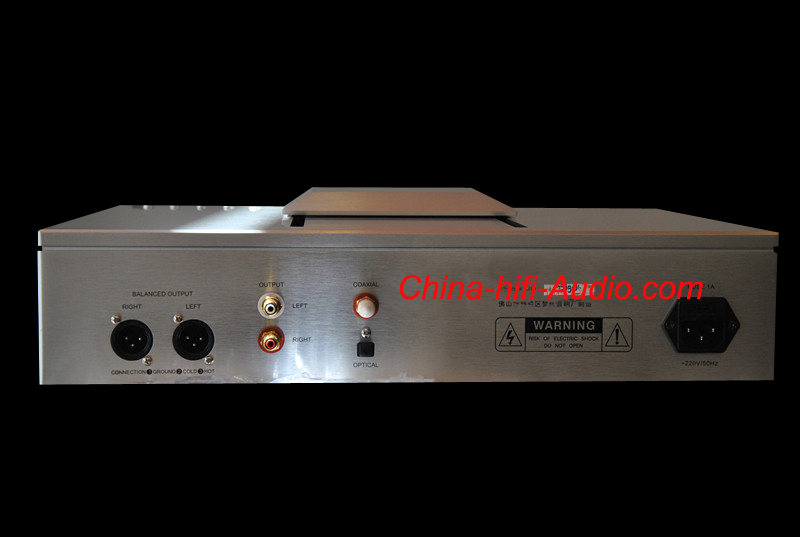

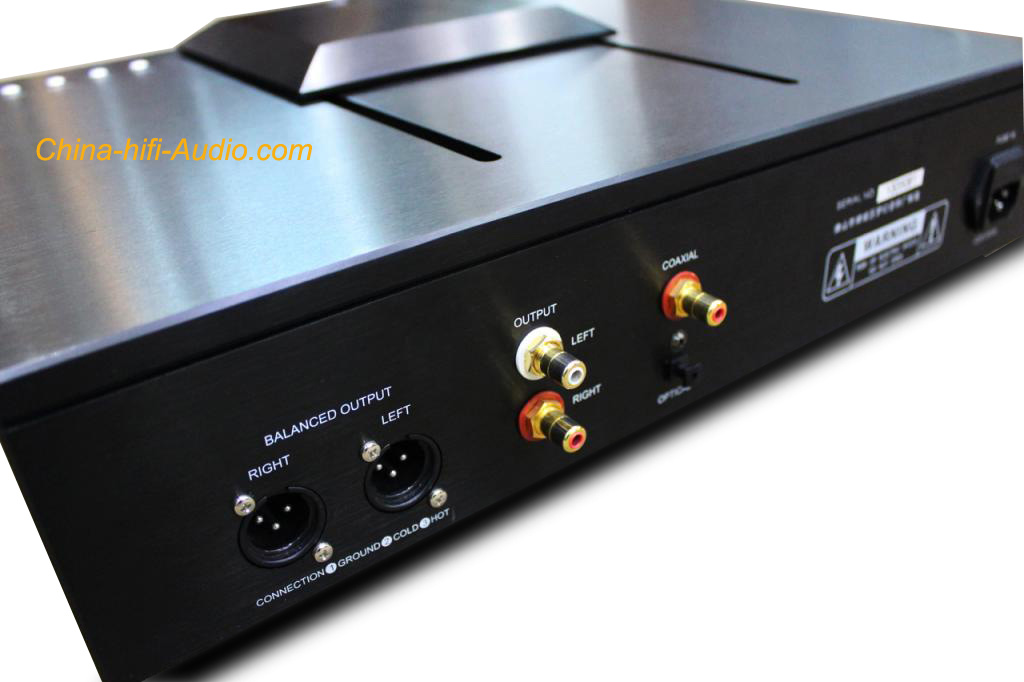

Audio Output : XLR (Balance) , RCA Stereo Out & Digital Coaxial
Digital Output : Toslink & Digital Coaxial
SNR : > 110 dB (A weighted )
Freq Response : 20Hz~20KHz (+-5dB)
Dynamic : > 110 dB (A weighted )
THD : < 0.05%
Power consumption : 60W
Colour: Black
Dimensions: 430mm (W) x 105mm (H) x 330mm (D)
Colour: Black or Silver
Weight: 15 Kg
Gross weight: 17 kg
Voltage: 110V - 240V AVAILABLE
PACKAGE INCLUDED, CD Player, Remote Control, Standard 1.8m Power Cord, Original Box, English Enstruction
