JungSon V-33 tube Class AB hifi intergrated amplifier brand new

Product Price: $853.14 USD

  • Product Model: Model: MUIA9831016
  • Product Weight: Shipping Weight: 24kg
  • Product Quantity: 4 Units in Stock

  • Add to Cart:
  • Max: 10

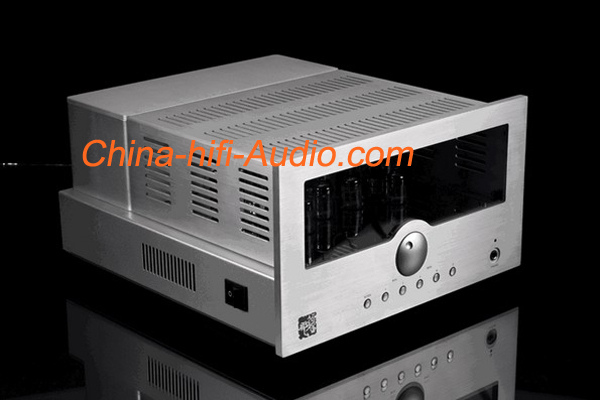

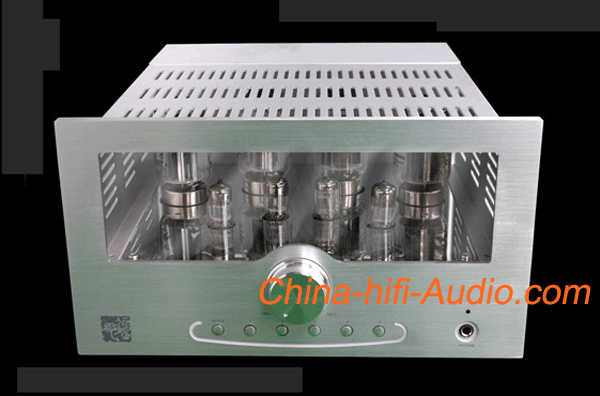

JungSon V-33 tube Class A&B hifi intergrated amplifier
100% Brand New


All items guaranteed 100% BRAND NEW in the original edition Box.



a) Uses two high-quality EI-type output transformer with wide frequency response,and specially produced EI-shaped power transformer.

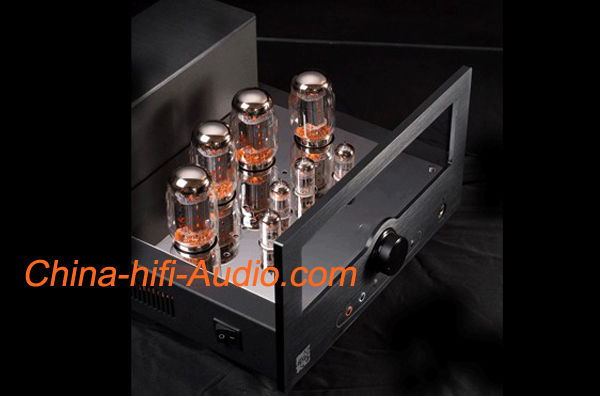

b) The pre-amp uses two 12AX7 tubes and two 12AU7 ,and the power amp is with four KT-88 tubes for Class AB power amplification.
c) Can be switched to two configurations ,ultra-linear and triode. Ultra-linear mode is used more for playing music with opening and bold sound, big scene, big dynamics,etc.And under the triode mode,it is suitable for sweet and smooth sound,strings and other musical types.

Output power: 2 × 35W (ultra-linear connection), 2 × 22W (triode connected)
Output Impedance: 4Ω, 8Ω
Frequency response: 18 Hz ~ 38 KHz (± 1db)
Total Harmonic Distortion: ≤ 1% (1kHz):
SNR: ≥ 95dB
Input level: 100mV
By tube: KT88 × 4, 12AX7 × 2, 12AU7 × 2
Input Sensitivity: 260mV (combined input)
Input impedance: 100kΩ
Voltage: 220V ± 10 %
Size: 350mm × 430mm × 190mm (L × W × H)
Net Weight: 22kg
Gross Weight: 24kg
