G&W Tsinghua T-2A single-end Class A tube headphones amplifier

Product Price: $193.13 USD

  • Product Model: Model: MUIA983307
  • Product Weight: Shipping Weight: 7.5kg
  • Product Quantity: 2 Units in Stock

  • Add to Cart:
  • Max: 10


G&W Tsinghua G&W T-2A single-end Class A Tube headphones amplifier
100% Brand New


All items guaranteed 100% BRAND NEW in the original edition Box.


G & W Tsinghua G & W T-2A single-end Class A vacuum tube headphones amplifier Brand New


a) Amplified using a common cathode line.
b) Using 3.2W power amplifier pentode.

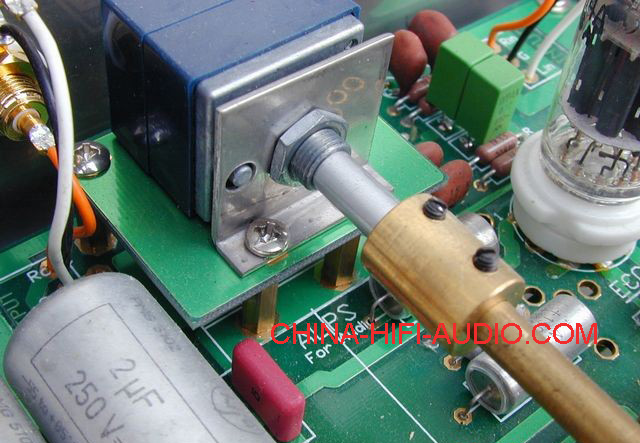

c) Japan ALPS blue plastic package using potentiometer.
d) Using gold-plated solid copper knob.

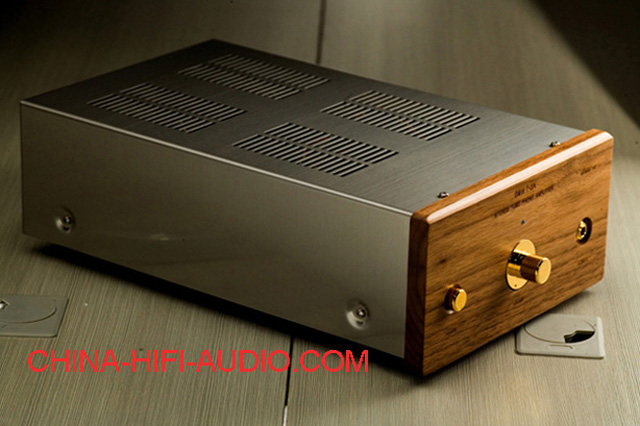

e) Chassis with brushed stainless steel manufacturing.
f) EI-type core made ​​of imported power transformers, power of 100W.

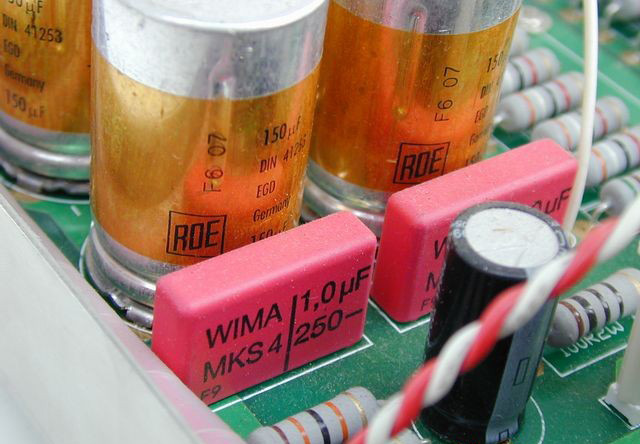

g) Using the German gold FRAKO, red WIMA capacitors.
h) High-voltage DC power supply using slow-start delay.
i) Imported filter core choke inductors do.
j) Boot with mute function, delay 20 seconds into working condition.

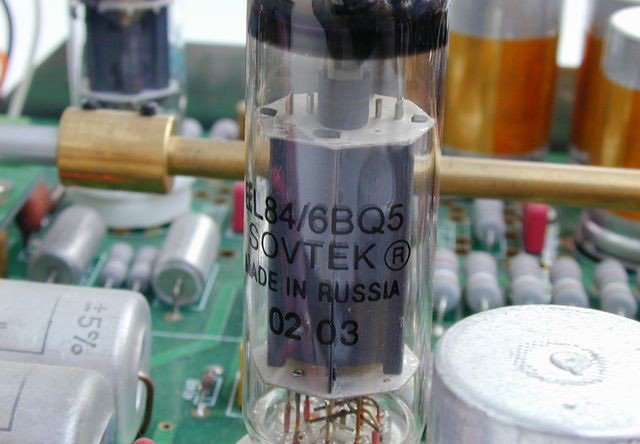

k) The use of tube type 6N10J (tube ECC82, 12AU7), 6P14J (tube EL84, 6P14)


Frequency range: 16Hz-110KHz (-1dB), 8Hz-238KHz (-3dB)
Impedance for headphones: 200Ω-600Ω
Distortion: 0.1% (VRMS: 1V, 1KHz)
Input: 1 set of RAC,
Output jack: 1 Group of 3.5mm jack, 1 group of RAC
Power: 36W Static power consumption
Tube: 6N10J (ECC82, 12AU7), 6P14J (EL84, 6P14)
Dimension: 380 width x 220 depth x 120mm high
Net weight: 6.5kg
Shipping weight: 7.5kg
Power supply: 110/220V (110V, 120V, 127V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.

This product was added to our catalog on Tuesday 22 November, 2011.
