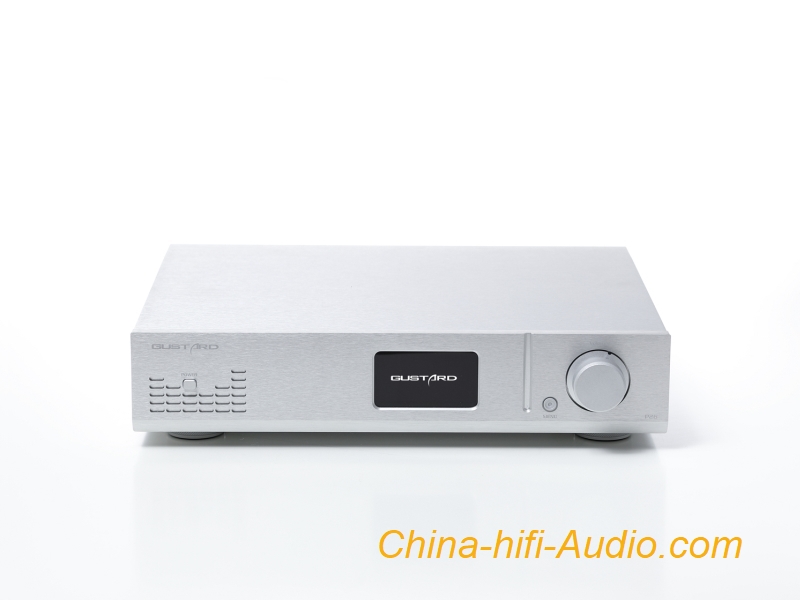

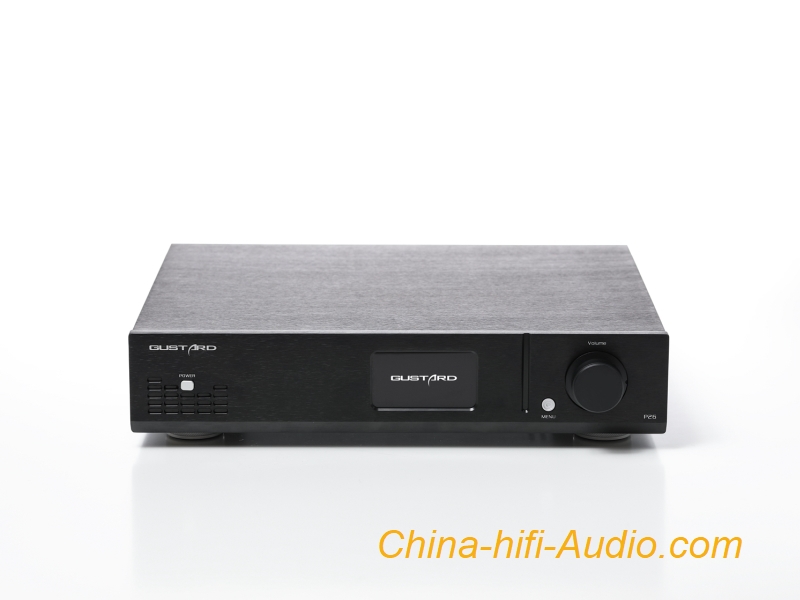

GUSTARD P26 PRE-AMP FULL BALANCE HIFI PREAMPLIFIER

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!


Product features:
• Class A fully balanced design, left and right channel sub-regional layout, good separation between left and right;
• Native fully balanced architecture, from input to volume control to amplification circuit, without any conversion, complete four-way architecture;

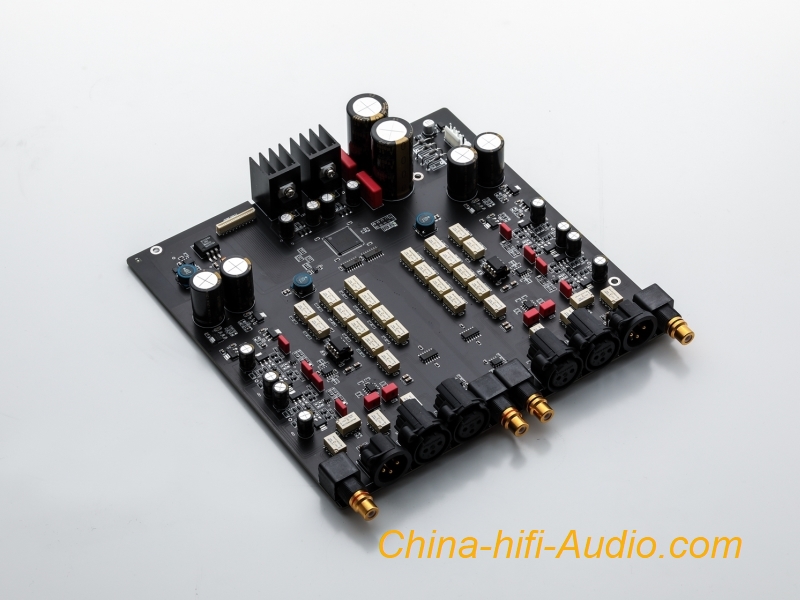

• OP-amp + discrete hybrid architecture, that is, to ensure circuit consistency without lack of adjustability, two in-line LM49860 dual OP-amp replaceable, increase playability;
• Discrete diamond-shaped differential output stage to easily push various back-end loads;
• Adopts matrix relay volume to effectively ensure that the volume of 4 channels is consistent without deviation;
• Adjustable input gain and output gain for easy matching of different front and rear ends;
• Large OLED display + full function remote control operation, humanized design;
• Custom 50W audio special ring transformer;

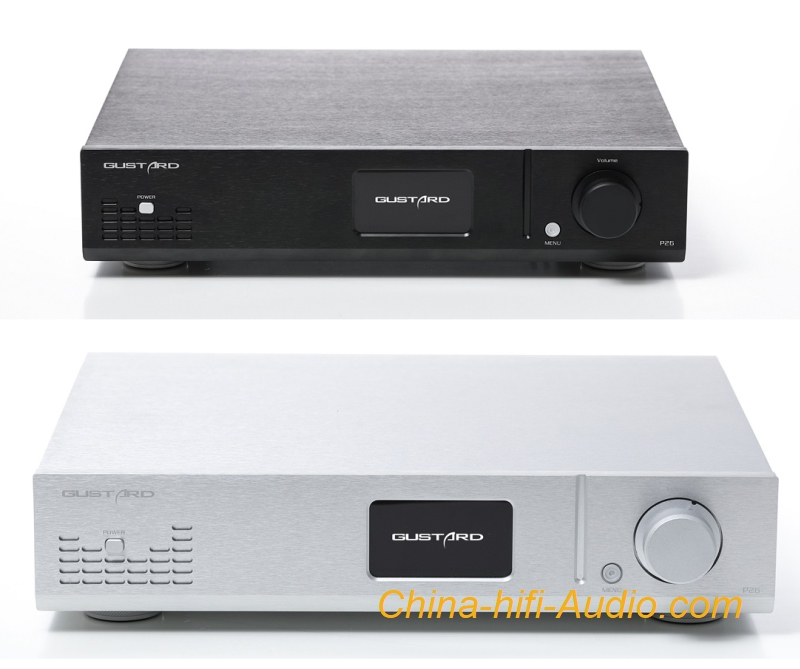

• All aluminum chassis, all silver and all black two colors to choose from;


Specification:

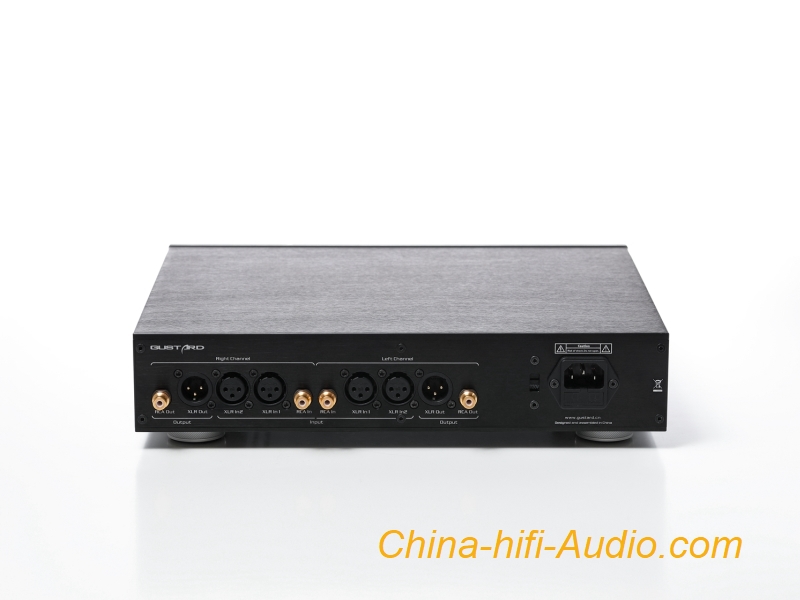

RCA: Input impedance 47k
Input sensitivity 2~10V rms
XLR1 & XLR 2: Input impedance 47k
Maximum input amplitude +28dBu (19V rms) @IGAIN =0dB
Frequency response: 20-20kHz /+-0.1dB
SNR: 130dB
Channel crosstalk: -130dB @ 20-20kHz
THD+N: <0.00035% 20-22kHzBW @18dBu IN & 18dBu OUT
IMD (SMPTE) : < 0.0006%@ 18dBu IN & 18dBu OUT
Max undistorted output level:
RCA output: 9.5V rms XLR Output: +28dBu (19V rms)
RCA output impedance: 100Ω XLR
Output impedance: 100Ω
• Dimension: (W*D*H)330* 260*65mm
• Package size: (W*D*H)420*360*175mm;
• Weight: 7 KG;
• AC power supply: AC 115V/230V 50/60Hz(manual adjustment);
• Power consumption: <20W;
