XiangSheng DAC-01A tube DAC Decoders/Headphone Amplifier silver

Product Price: Starting at:

  • Product Model: Model: MUIA983349
  • Product Weight: Shipping Weight: 2.5kg
  • Product Quantity: 0 Units in Stock

Please Choose:

Sold Out

Current Reviews: 1


XiangSheng DAC-01A tube DAC DA Converter Decoders/Headphone Amplifier
100% Brand New

This is the upgrade version of DAC-01A. Original USB IC come with TE7022L 24bit/96K
If you need the XMOS USB asynchronous IC 24bit/192k, plus $27 USD to get it.
The DAC-01A Standard Edition is discontinued .


All items guaranteed 100% BRAND NEW in the original edition Box.



DAC-01A Vacuum Tube Digital-to-Analog Converter/headphone amp
Add to Enquiry
Note: After our years of ongoing research and development, the next generation of DAC-01A have been created - DAC-01A upgraded version, which adopts high-level decoder chip,

supports sample rates up to 192KHz and provides you with high performance of decoding.

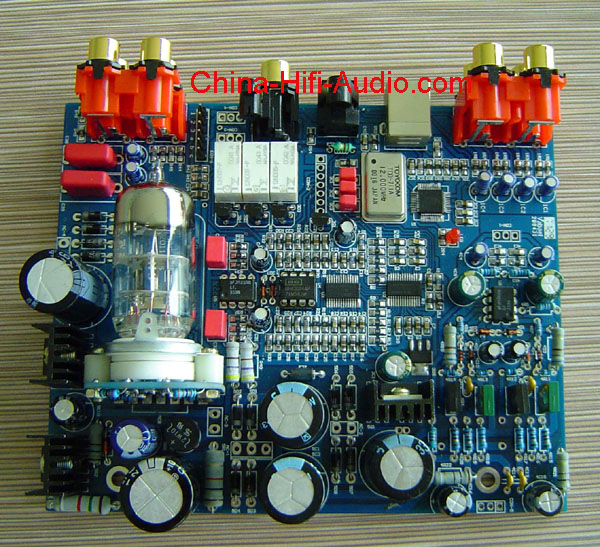

It is completely hand wired, utilizes high quality audio circuits, PHILIPS capacitors, tantalum capacitors and good quality internal parts to achieve a high value for the

dollar device.

Product Description:

Based on the customers feedbacks and overwhelming demand, our engineers have upgraded the DAC-01 by redesigning the internal wiring and adjusting parameters. Now the new version

is DAC-01A.

The DAC-01A stands out with its high fidelity vacuum tube output . With no less than five sources signal inputs for selecting : DVD/CD, AUX, coaxial, optical and USB input.

This is easy the best bang for the money.

The DAC-01A lets you “upgrade” the music listening experience, for any type audio setup, from computer-based systems, to network music devices, or standard CD/DVD etc. Just

plug it into your existed setup and enjoy the superior high end sound quality.

This is a newer design so not like the old Tube DAC. The unit have two output, one with transistor and one with single 6N3 vacuum tube. So you can change the two output to find

more fun. You can compare the sound between the two output then find out which can match you listen taste.

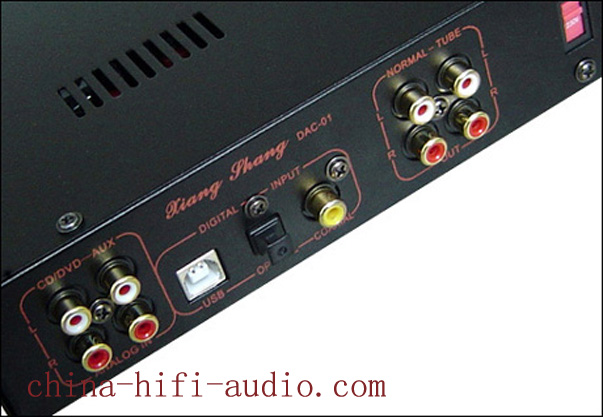

◆ (5) sets of inputs: including (2) sets of analog RCA inputs(DVD/CD, AUX), (1) coaxial, (1) optical and (1) USB input.
◆ (2) sets of RCA outputs – transistor and vacuum tube.
◆ Built-in headphone amplifier: allows you to enjoy music with privacy. Great power, music layers and details.
◆ Genuine imported processing chip. All resistors and capacitors are audiophile grade to ensure sound quality. Key parts are from Germany and Taiwan etc..

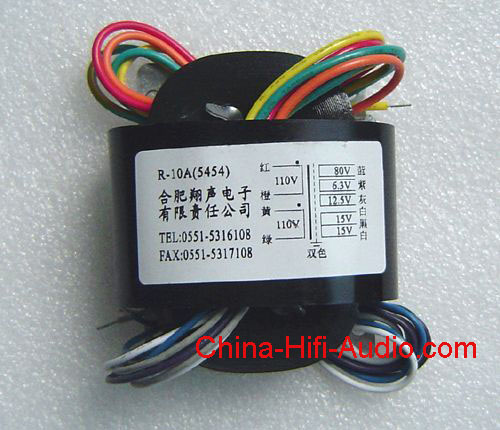

◆ R-shape high efficiency transformer.
◆ Separate power supply rectification to analog and digital circuits.
◆ Gold coated RCA connectors and coaxial connector.
◆ Vacuum tube output use well-known Chinese 6N3 tube. It can be replaced with 5670 type of tube.

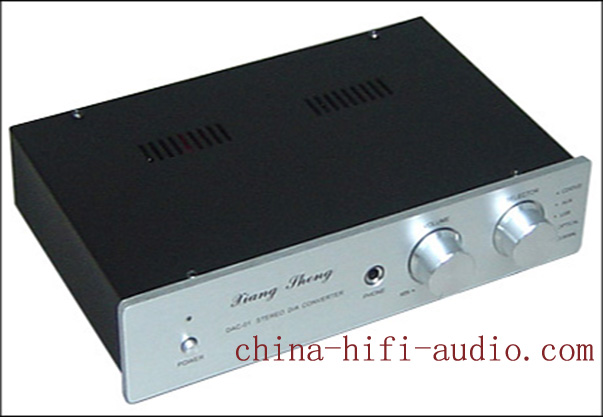

◆ Brushed aluminum faceplate, with all metal buttons and knobs, plus blue LED indicator light.
◆ Having two RCA analogy un-balance output(Normal Output and Tube Output), can be connected to transistor amplifier and tube amplifiers.
◆ The volume potentiometer does not control volume on the line outputs, just the headphone.

Technical Specifications:

Tube Used: 6N3 ( can be replaced with 5670 tube)
Digital Audio Inputs: (2) sets of analog RCA inputs (DVD/CD, AUX), (1) coaxial, (1) optical and (1) USB input.
Stereo Audio Outputs: (2)analog stereo outputs via RCA Left/Right channel: Normal Output and Tube Output.
Headphone Amplifier Output: Output Power: 1000mW-300mW
Impedance: 32 ohm -600 ohm
Sampling Frequency: 32kHz、44.1kHz、48kHz、88.2kHz、96kHz depending on source.
Resolution Capability :This DAC-01A supports 16bit、20bit and 24bit audio depending on source.
Input Impedance Analog :100 kohm
Digital: 75 ohm
Line Output Impedance: 600 ohm
Output Voltage: > 2000mV
Dynamic Range: 117 dB
Frequency Response: 20Hz-30KHz
Signal-To-Noise Ratio(SNR): Normal Output: 96dB; Tube Output: 90dB
Total Harmonic Distortion Normal Output: less than 0.001%
Tube Output: less than 0.1%
Power Supply: 100-240VAC 60/50Hz
Dimension: 260mm (W) x 167mm (D) x 55mm (H)
Net Weight: 2 KG
Gross weight: 3kg
Color: Silver & Black

This product was added to our catalog on Friday 26 December, 2014.
