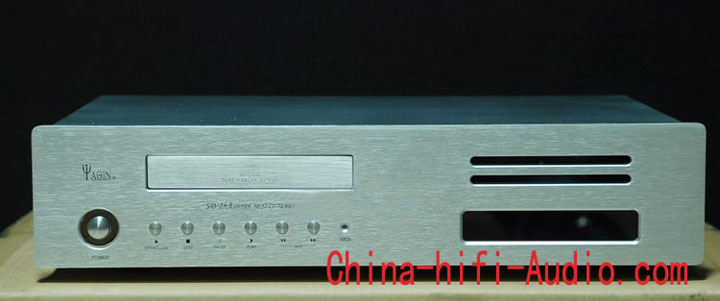

Yaqin SD-28B tube HDCD/CD Player high performance-price ratio

Product Price:

  • Product Model: Model: MUIA983641
  • Product Weight: Shipping Weight: 15kg
  • Product Quantity: 0 Units in Stock

Please Choose:

Sold Out


Yaqin SD-28B Vacuum tube HDCD/CD Player high performance-price ratio
100% Brand New


All items guaranteed 100% BRAND NEW in the original edition Box.


01 CD Japan Sanyo, dedicated high-precision movement, good stability, read ability.
02 servo circuit uses the Philips SAA7824 chip.
03 U.S. Company BB PCM1732U chip with HDCD decoder.
04 using the excellent stability of the multilayer filter circuit, the effective clear digital signal, the signal output to your hi-fi music.
05 use two sound good to promote strong, gall flavor the 6J1 amplifier and high-fidelity operational amplifier output, the two groups to choose from.

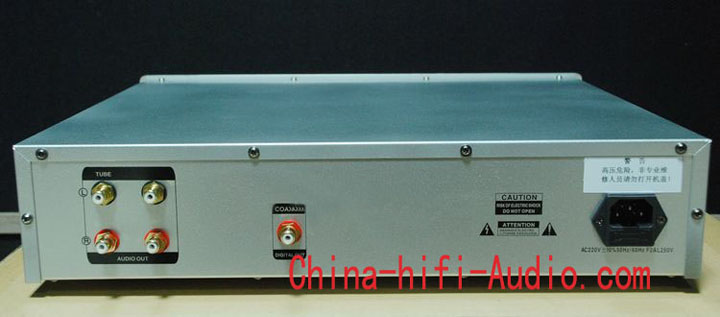

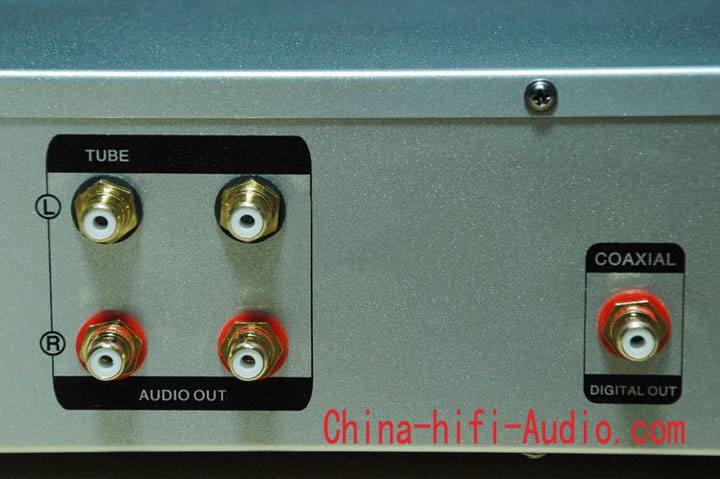

06 with coaxial digital signal output terminal, an external audio decoder.
07 of the coupling circuit nonpolar (MKP) capacitors and enthusiast audio enthusiast Philips electrolysis for the filtering and precision resistor manufacturing.
08 power transformers using oxygen-free copper enameled wire and special winding process of the import of audio-specific silicon steel sheet (thickness 0.35mm) and high
strength production, make the machine less electromagnetic interference, drive and strong, powerful sound quality transparent.

Technical indicators:
Audio output signal ------------ 2.3V (±0.5dB)
Frequency response ------------ 10HZ-20KHZ (±0.3dB)
SNR ------------ ≥ 110dB (A weighted)
Distortion degree ------------ ≤ 0.05%
Dynamic range ------------ ≤ 100dB
------------ 96dB Channel Separation
The total power consumption of power ------------ ≤ 100W

Power supply voltage: 110/220V 60Hz/50Hz
(100V,110V,120V, 127V, 230V, 240V version will
take 7-14 work days to order),
220V version are in stock

Package size:(W x D x H) ------------ 45x35.5x11 (cm)
Dimensions: (W x D x H) ------------ 42x34.5x9 (cm)
Net Weight: ------------ 12kg
Gross weight ------------ 15Kg

This product was added to our catalog on Friday 19 December, 2014.
